DIN Angle Bellows Seal Globe Valve

DIN Angle Bellows Seal Globe Valve

Specification

DIN EN Pressure PN 16 (1.6 MPa) - PN 40 (4.0 MPa); 15 mm - 350 mm (1/2″ - 14″)

Bolted Bonnet (BB), Bolted Gland (BG), Outside Screw & Yoke (OS & Y); Butt Welded (BW), Raised Flanged (RF), Ring Joint Flanged (RTJ), Flat Face Flanged (FF), Male & Female Face Flange (M&F)

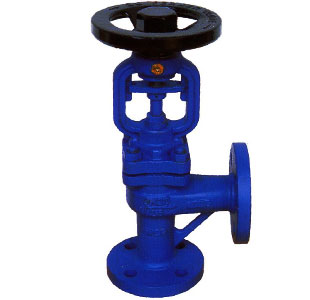

DIN Angle Bellows Seal Globe Valve
Structural formation: BB-BG-OS & Y
Driving manner: Hand-operated, Electric-actuated
Design Standard: DIN 3356
Face to Face: DIN 3202
Flange Ends: DIN 2543-2545
Test & Inspection: DIN 3230
Nominal Pressure
(MPa)
Shell Test
(MPa)
Sealing Test
(MPa)
Suitable Temp.
(°C)
Medium
1.6 2.4 1.76 ≤350°C Water Oil & Gas
2.5 3.75 2.75
4.0 6.0 4.4
6.4 9.6 7.04

Materials

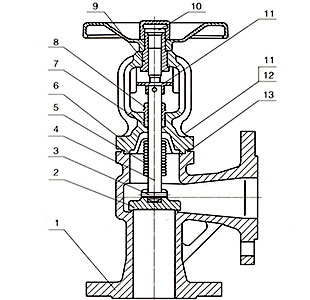

Materials of DIN Angle Bellows Seal Globe Valve
NO. Part Name Material
1 Body GS-C25 1.7363
1.4308, 1.4408, 1.4306, 1.4301
2 Disc ASTM A182-Gr.F6a ASTM A182-F22
ASTM A182-F304, F316, F321, F304L, F316L
3 Pin ASTM A182-Gr.F6a ASTM A182-F22
ASTM A182-F304, F316, F321, F304L, F316L
4 Stem ASTM A182-Gr.F6a ASTM A182-F22
ASTM A182-F304, F316, F321, F304L, F316L
5 Bellows 321, 304, 316
6 Bonnet GS-C25 1.7363
1.4308, 1.4408, 1.4306, 1.4301
7 Packing Flexible Graphite, PTFE
8 Gland GS-C25 1.7363
1.4308, 1.4408, 1.4306, 1.4301
9 Yoke nut ZQA19-4
10 Handwheel WCB, QT400-18
11 Bolt ASTM A193-B7, A193-B8, A193-B8M
12 Nut ASTM A194-2H, A194-8, A194-8M
13 Gasket Flexible Graphite + Stainless Steel, PTFE

Sizes (inch / mm) and Weights (Kg): PN 16 (1.6 MPa)

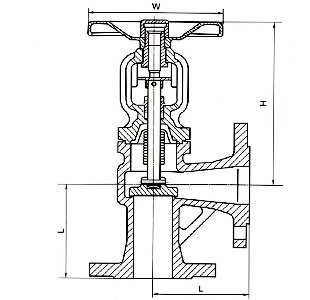

Sizes and Weights of PN 16 (1.6 MPa) DIN Angle Bellows Seal Globe Valve
Model WJ44-16
Pressure PN16
Size 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
L 90 95 100 105 115 125 145 155 175 200 225 275 325 375 425
H 166 166 172 175 193 195 213 227 294 325 355 440 580 620 785
W 120 140 140 160 160 180 200 220 250 300 350 400 450 500 500
Weight
(Kg)
4 5 6 10 13 18 25 30 40 50 100 180 300 450 670

Sizes (inch / mm) and Weights (Kg): PN 16 (2.5 MPa)

Sizes and Weights of PN 25 (2.5 MPa) DIN Angle Bellows Seal Globe Valve
Model WJ44-25
Pressure PN25
Size 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
L 90 95 100 105 115 125 145 155 175 200 225 275 325 375 425
H 166 166 172 175 193 195 213 227 294 325 355 440 580 620 785
W 120 140 140 160 160 180 200 220 250 300 350 400 450 500 500
Weight
(Kg)
4 5 6 11 14 19 27 32 43 53 110 200 330 480 700

Sizes (inch / mm) and Weights (Kg): PN 40 (4.0 MPa)

Sizes and Weights of PN 40 (4.0 MPa) DIN Angle Bellows Seal Globe Valve
Model WJ44-40
Pressure PN40
Size 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
L 90 95 100 105 115 125 145 155 175 200 225 275 325 375 425
H 166 166 172 175 193 195 213 227 294 325 355 440 580 620 785
W 120 140 140 160 160 180 200 220 250 300 350 400 450 500 500
Weight
(Kg)
4 5 6 11 14 20 28 33 45 55 120 210 350 500 730

Performance

  • This product has logical structure, reliable seal, excellent performance and nice design.
  • The seal surface is build-up welding with Co hard alloy, which is attrition-resistant, corrosion-resistant, has good friction resistant and long life.
  • The stem is quenched and tempered, and its surface is treated by nitriding treatment, thus it has good corrosion resistant and friction resistant.
  • It has double seal capability, thus is more reliable.
  • The stem may show the position of lift, thus it is clearer.
  • Small flowing resistance and low pressure drop.
  • The part material, flange and butt weld end dimension may be selected according to current operating condition and users' requirement, so that meet the requirements of various engineering.
