Cast Bellows Seal Globe Valve

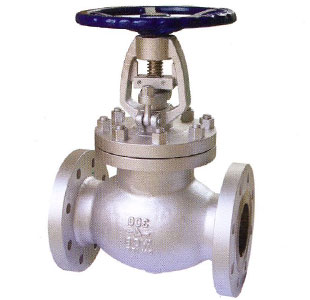

Cast Stainless Steel Bellows Seal Globe Valve

Specification

ASME Pressure Class 150 (0.6 MPa - 2.0 MPa) - 900 Lb (15.0 MPa); 1/2″ - 14″ (15 mm - 350 mm)

Bolted Bonnet (BB), Bolted Gland (BG), Outside Screw & Yoke (OS & Y); Butt Welded (BW) Ends; Raised Flanged (RF), Ring Joint Flanged (RTJ), Flat Face Flanged (FF), Male & Female Face Flange (M&F)

Cast Bellows Seal Globe Valve

Cast bellows seal globe valve acc. to ASME and API Standard is applicable to the cutting and connection of pipelines medium that are used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, electric power industry etc. under nominal pressure of Class 150 - 900 Lb and working temperature of -20 - 662°F (-29~350°C)

Structural formation: BB-BG-OS & Y
Actuator: HandWheel, Worm Gear
Design standard: API 600
Face to Face: ASME B16.10
Flange Ends: ASME B16.5
Test & Inspection: API 598
Pressure
(Lb)		 Shell Test
(MPa)		 Sealing Test
(MPa)		 Suitable Temp.
(°F / °C)		 Fluids
150 3.0 2.2 ≤ 662°F / 350°C Water, Oil & Gas
300 7.5 5.5
600 15.0 11.0
900 22.5 16.5

Materials

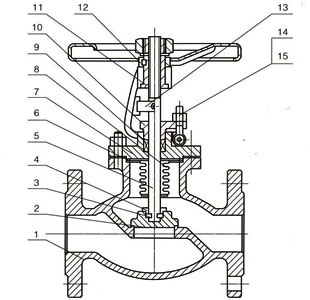

Materials of Cast Bellows Seal Globe Valve
No. Part Name Materials
1 Body ASTM A216-WCB
ASTM A351-CF8, CF8M, CF3, CF3M
2 Disc ASTM A182-Gr.F6a ASTM A182-F22
ASTM A182-F304, F316, F321, F304L, F316L
3 Split Ring ASTM A182-Gr.F6a ASTM A182-F22
ASTM A182-F304, F316, F321, F304L, F316L
4 Disc Bushing ASTM A182-Gr.F6a ASTM A182-F22
ASTM A182-F304, F316, F321, F304L, F316L
5 Stem ASTM A182-Gr.F6a ASTM A182-F22
ASTM A182-F304, F316, F321, F304L, F316L
6 Gasket Flexible Graphite + Stainless Steel, PTFE
7 Bonnet ASTM A216-WCB
ASTM A351-CF8, CF8M, CF3, CF3M
8 Bellow Assemble ASTM A182-F304, F316, F321, F304L, F316L
9 Packing Flexible Graphite, PTFE
10 Gland ASTM A216-WCB
ASTM A351-CF8, CF8M, CF3, CF3M
11 Yoke Nut ZQA19-4
12 Handwheel ASTM A536 Gr.60-40-18, A216-WCB
13 Guiding Piece 45, WCB, 304, 316, 304L, 316L
14 Bolt ASTM A193-B7, A193-B8, A193-B8M
15 Nut ASTM A194-2H, A194-8, A194-8M

Sizes (inch & mm) & Weights (Kg) - 150 Lb, 300 Lb; Welded or Flanged

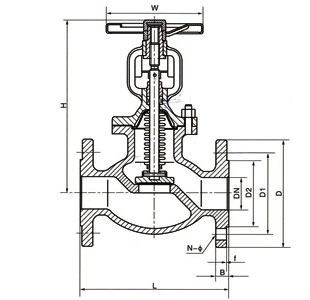

Size and Weight of Cast Bellows Seal Globe Valve

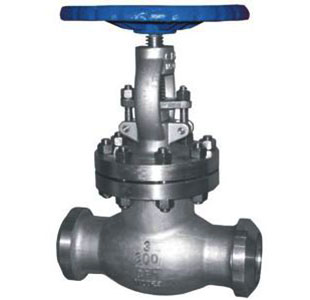

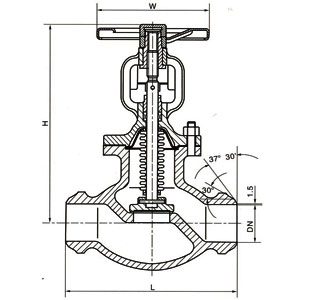

Welded Ends Cast Bellows Seal Globe Valve
Model WJ41 - 150 Lb
Pressure 150 Lb
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L 108 117 127 140 165 203 216 241 292 356 406 495 622 698 787
H 241 241 241 280 286 368 387 400 457 520 609 698 762 876 990
W 120 140 140 180 200 220 260 280 300 320 340 400 450 450 450
Weight
(Kg)		 4 5 6 10 13 18 30 35 55 75 104 200 300 390 610
Model WJ41 - 300 Lb
Pressure 300 Lb
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L 152 178 203 215 229 267 292 318 356 400 444 559 622 711 762
H 241 241 283 320 322 399 438 450 584 610 660 762 850 1085 1187
W 120 140 140 180 200 220 260 280 300 320 340 400 450 450 450
Weight
(Kg)		 6 7 10 15 20 25 30 52 88 115 160 259 420 595 876

Sizes (inch & mm) & Weights (Kg) - 600 Lb, 900 Lb; Welded or Flanged

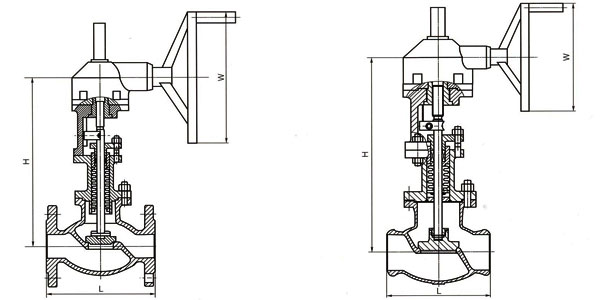

Class 600 Lb, 900 Lb Cast Bellows Seal Globe Valve
Model WJ 41 - 600 Lb
Pressure 600 Lb
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L 165 190 216 229 241 292 330 356 432 508 559 660 787 838 889
H 240 280 320 320 390 430 480 508 635 750 914 1016 1219 1330 1560
W 140 140 160 160 180 180 250 250 350 400 450 500 600 720 760
Weight
(Kg)		 7 10 16 22 29 35 50 90 150 230 300 510 850 1120 1400
Model WJ41 - 900 Lb
Pressure 900 Lb
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L 229 229 254 279 305 368 419 381 457 559 610 737 838 965 1029
H 280 330 350 430 508 569 430 635 774 860 1040 1330 1560 1650 1780
W 160 160 180 180 250 250 320 350 450 550 600 720 760 820 890
Weight
(Kg)		 10 16 23 37 49 65 75 120 200 350 410 790 1300 1500 1800

Performance

  • This product has logical structure, reliable seal, excellent performance and nice design.
  • The seal surface is build-up welding with Co hard alloy, which is attrition-resistant, corrosion-resistant, has good friction resistant and long life.
  • The stem is quenched and tempered, and its surface is treated by nitriding treatment, thus it has good corrosion resistant and friction resistant.
  • It has double seal capability, thus is more reliable.
  • The stem may show the position of lift, thus it is clearer.
  • The part material, flange and butt weld end dimension may be selected according to current operating condition. and users' requirement, so that meet the requirements of various engineering.
