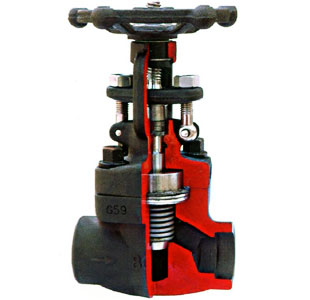

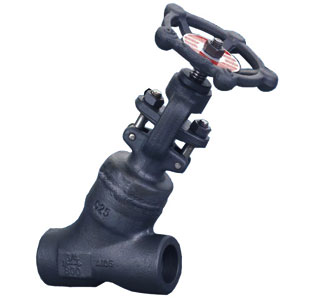

Compact Forged Bellows Seal Globe Valve
- Standard Straight Pattern
- Parabolic Plug Pattern
- All Welded Pattern
- Compact Pattern
- DIN Standard Straight Pattern
- DIN Parabolic Plug Pattern
- DIN Y Pattern
- DIN Angle Pattern
Specification
ASME Pressure Class 800 (12 MPa) - 1500 Lb (25 MPa), 1/2″ - 2″ (15 mm - 50 mm)
Bolted Bonnet (BB) or Welded Bonnet (WB), Bolted Gland (BG), Outside Screw & Yoke (OS & Y), Threaded (NPT / BSP) or Socket Weld (SW) Ends.
| 1. | Design and manufacture conform to API 602, MSS-SP-117 |
| 2. | Connection ends conform to: |
| 1) Socket welded ends conform to ANSI B16.11, | |
| 2) Screw Ends Conform to ANSI B1.20.1, | |
| 3) Flanged Ends Conform to ANSI B16.5, JT79 | |
| 3. | Test and Inspection Conform to API 598 |
| 4. | Structure features: |
| Bolted Bonnet, Outside Screw and Yoke (B.B, OS & Y) | |
| Welted Bonnet, Outside Screw and Yoke (W.B, OS & Y) | |
| 5. | Materials conform to ANSI / ASTM |
| 6. | Main materials: A105, LF2, F5, F11, F22, 304(L), 316(L), F347, F321, F51, Monel, 20# Alloy Steel. |
| 7. | Bellow materials: 304, 321, 316, Inconel 625, Hastelloy C 276, Monel. |

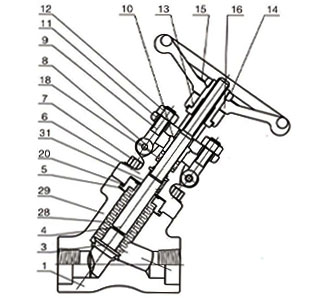

Materials
| No. | Part name | A105/F6a | A105/F6a + STELLITES | A105/F6a + STELLITE | F304(L)/304(L) | F316(L)/316(L) |
| 1 | Body | A105 | A105 + STELLITE | A105 + STELLITE | F304(L) | F316(L) |
| 3 | Disc | F6a | F6a | F6aSTELLITE | F304(L) | F316(L) |
| 4 | Stem | 410 | 410 | 410 | 304(L) | 316(L) |
| 5 | Gasket | 304 + Flexible Graphite | 304 + Flexible Graphite | 304 + Flexible Graphite | 304 + Flexible Graphite | 316 + Flexible Graphite |
| 6 | Bonnet | A105 | A105 | A105 | F304(L) | F316(L) |
| 7 | Bolt | B7 | B7 | B7 | B8(M) | B8(M) |
| 8 | Pin | 410 | 410 | 410 | 304 | 304 |
| 9 | Packing Bushing | 410 | 410 | 410 | 304 | 316 |
| 10 | Eyelet Bolt | B7 | B7 | B7 | B8(M) | B8(M) |
| 11 | Packing Gland | A105 | A105 | A105 | F304 | F304 |
| 12 | Hex Nut | 2H | 2H | 2H | 8(M) | 8(M) |
| 13 | Stem Nut | 410 | 410 | 410 | 410 | 410 |
| 14 | Locking Nut | 35 | 35 | 35 | 35 | 35 |
| 15 | Nameplate | AL | AL | AL | AL | AL |
| 16 | Handwheel | A197 | A197 | A197 | A197 | A197 |
| 17 | Lubricating Gasket | 410 | 410 | 410 | 410 | 410 |
| 18 | Packing | Graphite | Graphite | Graphite | Graphite | Graphite |
| 20 | Gasket | 304 + Flexible Graphite | 304 + Flexible Graphite | 304 + Flexible Graphite | 304 + Flexible Graphite | 304 + Flexible Graphite |
| 28 | Bellow | F321 | F321 | F321 | F321/304L | F316/316L |
| 30 | Steel Wire | 304 | 304 | 304 | 304 | 316 |
| 31 | Pin | 304 | 304 | 304 | 304 | 316 |

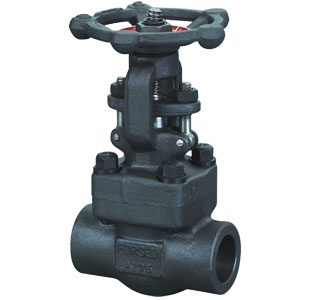

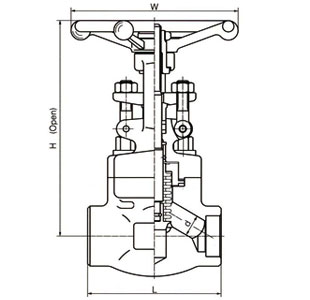

Sizes (inch / mm) and Weights (Kg): Class 800 Lb, BB, OS & Y
Bolted Bonnet, Full Port & Reducing Port Outside Screw and Yoke (OS & Y)
Threaded, Socket Welded Ends;Design to BS 5352 / MSS-SP-117
| Specification (NPS) |
R.P | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | |
| F.P | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | |
| Face to face (mm) |
L | 79 | 79 | 92 | 111 | 120 | 152 | 172 | 200 |
|
Handwheel Diameter (mm) |
W | 100 | 100 | 100 | 125 | 160 | 160 | 180 | 200 |
| Height (mm) |
H | 162 | 162 | 164 | 200 | 220 | 257 | 295 | 350 |
| Flow Port Dimensions (mm) |
d | 7.0 | 9.0 | 13 | 17.5 | 23 | 30 | 35 | 46 |
| Weight (Kg) |
2.5 | 2.3 | 2.4 | 4.35 | 5.75 | 7.8 | 12.5 | 17.5 |

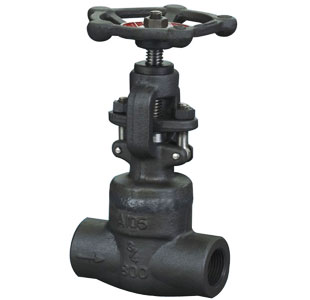

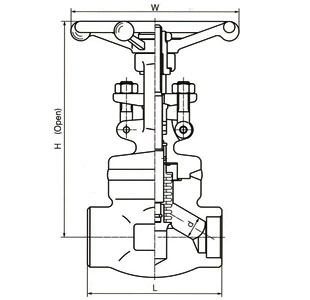

Sizes (inch / mm) and Weights (Kg): Class 800 Lb, WB, OS & Y
Welded Bonnet, Full Port & Reducing Port Outside Screw and Yoke (OS & Y)
Threaded, Socket Welded Ends; Design to BS 5352 / MSS-SP-117
| Specification (NPS) |
R.P | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | |
| F.P | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | |
| Face to Face (mm) |
L | 79 | 79 | 92 | 111 | 120 | 152 | 172 | 200 |
| Handwheel Diameter (mm) |
W | 100 | 100 | 100 | 125 | 160 | 160 | 180 | 200 |
| Height (mm) |
H | 162 | 162 | 164 | 200 | 220 | 257 | 295 | 350 |
|
Flow Port Dimension (mm) |
d | 7.0 | 9.0 | 13 | 17.5 | 23 | 30 | 35 | 46 |
| Weight (Kg) |
1.8 | 1.7 | 1.9 | 3.3 | 5.2 | 6.8 | 10.6 | 13.8 |

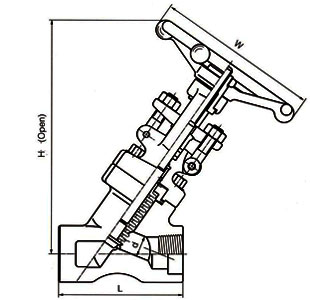

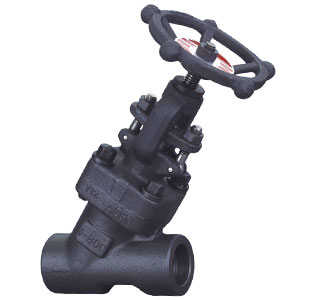

Sizes (inch / mm) and Weights (Kg): Cl 800 Lb, Y Pattern, BB, OS & Y
Y Pattern, Bolted Bonnet, Full Port & Reducing Port outside Screw and Yoke (OS & Y)
Threaded, Socket Welded Ends; Design to BS 5352 / MSS-SP-117
| Specification (NPS) |
R.P | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | |
| F.P | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | |
| Face to Face (mm) |
L | 98 | 98 | 98 | 111 | 140 | 140 | 155 | 170 |
| Handwheel diameter (mm) |
W | 100 | 100 | 100 | 125 | 160 | 160 | 180 | 200 |
| Height (mm) |
H | 180 | 180 | 180 | 188 | 280 | 280 | 295 | 350 |
| Flow Port Dimension (mm) |
d | 7 | 9 | 13 | 17.5 | 23 | 30 | 35 | 46 |
| Weight (Kg) |
2.6 | 2.6 | 3.8 | 4.6 | 9.3 | 9.3 | 14 | 19.6 |

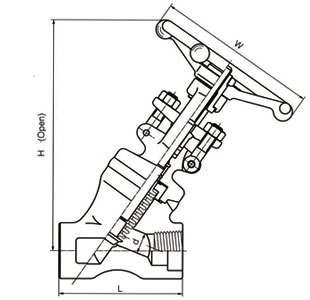

Sizes (inch / mm) and Weights (Kg): Cl 800 Lb, Y Pattern, WB, OS & Y
Y Pattern, Welded Bonnet, Full Port & Reducing Port Outside Screw and Yoke (OS & Y)
Threaded, Socket Welded Ends; Design to BS 5352 / MSS-SP-117
| Specification (NPS) |
R.P | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | |
| F.P | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | |
|
Face to Face (mm) |
L | 79 | 79 | 92 | 100 | 140 | 140 | 155 | 170 |
|
Handwheel Diameter (mm) |
W | 100 | 100 | 100 | 125 | 160 | 160 | 180 | 200 |
| Height (mm) |
H | 198 | 198 | 198 | 207 | 280 | 280 | 295 | 350 |
| Flow port dimension (mm) |
d | 7 | 9 | 13 | 17.5 | 23 | 30 | 35 | 46 |
| Weight (Kg) |
1.8 | 1.8 | 2.0 | 3.5 | 8.0 | 8.0 | 12 | 16 |
