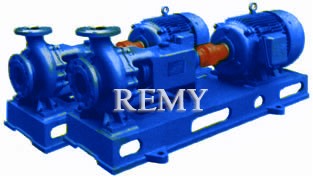

FIJ型悬臂式化工离心泵

FIJ型悬臂式化工离心泵(简称FIJ化工离心泵)是在IH系列泵的基础上,参照国外新技术并结合用户实际使用后而优化设计的新产品。其额定性能和安装尺寸符合ISO2858标准,制造技术条件符合ISO5199标准,FLJ型悬臂式化工离心泵主要适用于化工流程中的含固体量小于50%之内的浆液以及含结晶杂质介质的输送。

特点

1、缩短了叶轮的悬臂,加粗了轴的直径;
2、非对称截面的蜗壳、泵壳无口环;
3、采用三只进口轴承;
4、装有与国外先进的双端面机械密封或填料密封相似的新型密封。

优越性

1、可以输送高粘度或含固体的介质,这时泵的效率较IH泵;
2、非对称截面蜗壳减少了流体的冲击损失,缩短了泵壳尺寸;
3、增加轴的强度,减少了转子的挠度,因而运行稳定、密封寿命长;
4、叶轮螺母与叶轮做成一体,改善了泵的入口条件,提高泵的抗汽蚀性能;
5、先进的轴密封形式,使密封效果更佳,减少了泵的泄漏;
6、可以不拆卸泵壳和叶轮的情况下调节泵的间隙,减少了维修时间,节省维修成本。

FIJ型悬臂式化工离心泵
FIJ型悬臂式化工离心泵

性能参数表

泵型号 Model 流量Q Capacity Q 扬程 Head H(m) 转速 Speed (r/min) 功率P(KW) Power 效率Efficiency η (%) 必需汽 蚀余量 NPSH r (m)
m3/h L/S 轴功率 Shaft Power 电机功率 Motor Power
FIJ32-20-125 3.2 0.88 20 2900 0.48 按液体的比重 和粘度选用 Select according to viscosity and granity of liquid 35 5.0
FIJ32-20-160 3.2 0.88 32 0.93 30 3.5
FIJ32-20-200 3.2 0.88 50 1.62 27 4.0
FIJ32-20-250 3.2 0.88 80 4.1 17 4.5
FIJ40-20-125 6.3 1.74 20 0.66 52 5.0
FIJ40-25-160 6.3 1.74 32 1.53 36 3.5
FIJ40-25-200 6.3 1.74 50 2.52 34 3.5
FIJ40-25-250 6.3 1.74 80 5.3 26 4.5
FIJ50-32-125 7.5 2.08 23 2900 1.09 43 2.0
12.5 3.47 20 1.33 51 2.0
15.0 4.17 18 1.50 49 2.5
FIJ50-32-125A 6.8 1.89 18.8 2900 1.87 40 2.0
11.3 3.14 16.4 1.01 50 2.0
13.6 3.78 14.7 1.16 47 2.5
FIJ50-32-125 3.75 1.04 5.57 1450 0.16 36 2.0
6.3 1.74 5.0 0.19 45 2.0
7.5 2.08 4.5 0.21 44 2.0
FIJ50-32-125A 3.4 0.94 4.7 1450 0.13 33.3 2.0
5.7 1.59 4.1 0.149 43 2.0
6.8 1.89 3.7 0.163 42 2.2
FIJ50-32-160 7.5 2.08 34.5 2900 2.13 33 2.0
12.5 3.47 32 2.37 46 2.0
15.0 4.17 30 2.45 50 2.5
FIJ50-32-160A 6.8 1.89 28.5 2900 1.76 30 2.0
11.3 3.14 26.4 1.85 44 2.0
13.6 3.78 24.8 1.91 48 2.5
FIJ50-32-160 3.75 1.04 8.6 1450 0.30 29 2.0
6.3 1.74 8.0 0.34 40 2.0
7.5 2.08 7.5 0.36 43 2.2
FIJ50-32-160A 3.4 0.94 7.1 1450 0.253 25.9 2.0
5.7 1.59 6.6 0.277 37.1 2.0
6.8 1.89 6.2 0.280 41 2.2
FIJ50-32-200 7.5 2.08 51.8 2900 3.78 28 2.0
12.5 3.47 50 4.36 39 2.0
15.0 4.17 48 4.56 43 2.5
FIJ50-32-200A 6.8 1.89 42.7 2900 3.16 25 2.0
11.3 3.14 41 3.24 38 2.0
13.6 3.78 39.5 3.57 41 2.5
FIJ50-32-200 3.75 1.04 12.9 1450 0.57 23 2.0
6.3 1.74 12.5 0.65 33 2.0
7.5 2.08 12.0 0.68 36 2.2
FIJ50-32-200A 3.4 0.94 10.6 1450 0.488 20 2.0
5.7 1.59 10.3 0.516 31 2.0
6.8 1.89 9.9 0.540 34 2.2
FIJ50-32-250 7.5 2.08 82 2900 7.28 23 2.0
12.5 3.47 80 8.25 33 2.0
15.0 4.17 78.5 8.79 36.5 2.5
FIJ50-32-250A 7 1.94 71.9 2900 6.84 20 2.0
11.7 3.25 70 6.97 32 2.0
14 3.89 68.8 7.71 34 2.5
FIJ50-32-250B 6.6 1.83 63.6 2900 5.71 20 2.0
11.0 3.06 62 6.19 30 2.0
FIJ50-32-250 3.75 1.04 20.5 1450 1.23 17 2.0
6.3 1.74 20 1.27 27 2.0
7.5 2.08 6.2 1.29 31 2.2
FIJ50-32-250A 3.51 0.98 18.0 1450 1.12 15.4 2.0
5.9 1.64 17.5 1.125 25 2.0
7.02 1.95 17.2 1.18 27.9 2.2
FIJ65-50-125 15 4.17 21.3 2900 1.85 47 2.0
25 6.94 20 2.2 62 2.0
30 8.33 18.6 2.4 63 2.5
泵型号 Model 流量 Q Capacity Q 扬程 Head H(m) 转速 Speed(r/min) 功率 P (KW) Power 效率 Efficiency η(%) 必需汽蚀余量 NPSH r (m)
M3/h L/S 轴功率Shaft Power 电机功率Motor Power
FIJ65-50-125A 13.6 3.78 17.6 2900 1.48 按 液体的比重 和 粘度选用 Select according to viscosity and granite of liquid 44 2
22.7 6.31 16.5 1.67 61 2
27.3 7.58 15.4 1.91 59.9 2.5
FIJ65-50-125 7.5 2.08 5.4 1450 0.25 44 2
12.5 3.47 5 0.31 55 2
15 4.17 4.5 0.33 56 2.2
FIJ65-50-125A 6.8 1.89 4.5 1450 0.23 41 2
11.3 3.14 4.1 0.234 54 2
13.6 3.78 3.7 0.258 53 2.2
FIJ65-50-160 15 4.17 34.2 2900 3.18 44 2
25 6.94 32 3.82 57 2
30 8.33 30 4.15 59 2.5
FIJ65-50-160A 13.6 3.78 28.4 2900 2.56 41 2
22.7 6.31 26.5 2.93 56 2
27.3 7.58 24.8 3.29 56 2.5
FIJ65-50-160 7.5 2.08 8.55 1450 0.45 39 2
12.5 3.47 8 0.53 51 2
15 4.17 7.5 0.58 52.5 2.2
FIJ65-50-160A 6.8 1.89 7.09 1450 0.37 35.5 2
11.3 3.14 6.6 0.41 49.6 2
13.6 3.78 6.2 0.46 49.9 2.2
FIJ65-40-200 15 4.17 53.2 2900 5.3 41 2
25 6.94 50 6.55 52 2
30 8.33 47.6 7.27 53.5 2.5
FIJ65-40-200A 13.6 3.78 43.9 2900 4.28 38 2
22.7 6.31 41 5.07 50 2
27.3 7.58 39.3 5.73 51 2.5
FIJ65-40-200 7.5 2.08 13.3 1450 0.78 35 2
12.5 3.47 12.5 0.93 46 2
15 4.17 11.9 1.02 47.5 2.2
FIJ65-40-200A 6.8 1.89 11 1450 0.64 31.8 2
11.3 3.14 10.3 0.72 44 2
13.6 3.78 9.8 0.81 44.8 2.2
FIJ65-40-250 15 4.17 81.2 2900 9.76 34 2
25 6.94 80 11.84 46 2
30 8.33 78.4 12.8 50 2.5
FIJ65-40-250A 14 3.89 71 2900 8.73 31 2
23.4 6.5 74.8 10.6 45 2
28 7.78 68.6 11.13 47 2.5
FIJ65-40-250B 13.2 3.67 62.8 2900 7.29 31 2
22 6.11 61.8 8.42 44 2
26.4 7.33 53 8.45 45 2.5
FIJ65-40-250 7.5 2.08 20.3 1450 1.48 28 2
12.5 3.47 20 1.75 39 2
15 4.17 19.6 1.86 43 2.2
FIJ65-40-250A 7 1.94 17.8 1450 1.35 25 2
11.7 3.25 17.5 1.47 37.9 2
14 3.89 17.2 1.64 40 2.2
FIJ65-40-315 15 4.17 126.8 2900 18.5 28 2
25 6.94 125 21.8 39 2
30 8.33 124 23.8 42.5 2.5
FIJ65-40-315A 14 3.89 111.2 2900 18.1 25 2
23.4 6.5 109.5 18.36 38 2
28 7.78 108.8 22.12 40 2.5
FIJ65-40-315B 13.2 3.67 98 2900 14.69 24 2
22 6.11 96.5 15.63 37 2
26.4 7.33 95.9 17.67 39 2.5
FIJ65-40-315 7.5 2.08 32.4 1450 3 22 2
12.5 3.47 32 3.3 33 2
15 4.17 31.7 3.5 37 2.2
FIJ65-40-315A 7 1.94 28.4 1450 2.84 19 2
11.7 3.25 28 2.78 31 2
14 3.89 27.8 3.12 34 2.2
泵型号 Model 流量 Q Capacity Q  扬程 Head H(m) 转速 Speed (r/min) 功率P (KW) Power  效率 Efficiency η(%) 必需汽蚀余量 NPSH r (m)
FIJ80-65-125 30 8.33 23.2 2900 3.16 按 液体的比重 和 粘度选用 Select according to viscosity and granite of liquid 60 3
50 13.9 20 3.95 69 3
60 16.7 17.6 4.29 67 4
FIJ80-65-125A 27.2 7.56 19.1 2900 2.48 57 3
45.3 12.58 16.5 3.04 67 3
54.4 15.12 14.5 3.36 64 4
FIJ80-65-125 15 4.17 5.8 1450 0.44 54 3
25 6.94 5 0.53 64 3
30 8.33 4.4 0.58 62 4
FIJ80-65-125A 13.6 3.78 4.8 1450 0.349 51 3
22.6 6.28 4.1 0.407 62 3
27.2 7.56 3.6 0.452 59 4
FIJ80-65-160 30 8.33 36 2900 5.16 57 2
50 13.9 32 6.5 67 2.3
60 16.7 28.4 7.14 65 3.3
FIJ80-65-160A 27.2 7.56 29.7 2900 4.08 54 2
45.4 12.6 26.4 5.02 65 2.3
54.4 15.12 23.4 5.39 62 3.3
FIJ80-65-160 15 4.17 9 1450 0.74 50 2
25 6.94 8 0.88 62 2.3
30 8.33 7.2 0.95 62 3.3
FIJ80-65-160A 13.6 3.78 7.4 1450 0.58 47.3 2
22.7 6.31 6.6 0.68 60 2.3
27.2 7.56 5.9 0.74 59 3.3
FIJ80-50-200 30 8.33 55.2 2900 8.5 53 2
50 13.9 50 10.8 63 2.5
60 16.7 45.2 11.9 62 3.2
FIJ80-50-200A 27.2 7.56 45.4 2900 6.73 50 2
45.3 12.58 41 8.29 61 2.5
54.4 15.12 37.2 9.35 59 3.2
FIJ80-50-200 15 4.17 13.5 1450 1.25 44 2
25 6.94 12.5 1.49 57 2.3
30 8.33 11.5 1.6 58 3.3
FIJ80-50-200A 13.6 3.78 11.1 1450 1 41 2
22.7 6.31 10.3 1.135 56.1 2.3
27.2 7.56 9.5 1.28 55 3.3
FIJ80-50-250 30 8.33 84 2900 16 43 2.5
50 13.9 80 20.6 53 2.5
60 16.7 75 12.7 54 2.5
FIJ80-50-250A 28.14 7.82 73.55 2900 13.2 42.7 2.5
46.9 13.03 70.5 16.1 56 2.5
56.28 15.63 67.4 17.8 58.03 3
FIJ80-50-250B 26.4 7.33 64.8 2900 11.4 40.86 2.5
44 12.22 62.2 13.8 54 2.5
52.8 14.67 60 15 57.52 3
FIJ80-50-250 15 4.17 21 1450 2.15 40 2.5
25 6.94 20 2.72 50 2.5
30 8.33 18.8 3.01 51 2.5
FIJ80-50-250A 14.04 3.9 18.2 1450 1.66 42 2.5
23.4 6.5 17.6 2.25 50 2.5
28.08 7.8 16.7 2.63 48.5 2.5
FIJ80-50-315 30 8.33 128 2900 33.1 38 2.5
50 13.9 125 34.1 50 2.5
60 16.7 123 38 53 3
FIJ80-50-315A 28.14 7.82 113.4 2900 21.5 40.4 2
46.9 13.03 110 28.1 50 2
56.28 15.63 107.7 30 55 2.5
FIJ80-50-315B 26.4 7.33 100.5 2900 17 43.5 2
44 12.22 97 24.2 48 2
52.8 14.67 95 25 54.6 2.5
FIJ80-50-315 15 4.17 32.5 1450 3.59 37 2.5
25 6.94 32 4.54 48 2.5
30 8.33 31.5 4.95 52 3
泵型号 Model 流量?Q Capacity Q  扬程 Head H(m) 转速 Speed (r/min) 功率P (KW) Power  效率 Efficiency η(%) 必需汽蚀余量NPSH r (m)
FIJ80-50-315A 14.1 3.92 29.2 1450 3.52 按 液体的比重 和 粘度选用 Select according to viscosity and granite of liquid 31.8 2.5
23.5 6.53 28.3 4.12 44 2.5
28.2 7.83 27.1 4.41 47.2 3
FIJ100-80-125 60 16.7 23.7 2900 5.96 65 3
100 27.8 20 7.47 73 4.2
120 33.3 16.3 7.72 69 4.8
FIJ100-80-125A 55 15.3 19.4 2900 4.68 62 3
91.8 25.5 16.8 5.9 71 4.2
109 30.5 13.7 6.12 67 4.8
FIJ100-80-160 60 16.7 37 2900 10.1 60 3.8
100 27.8 32 11.9 73 4.3
120 33.3 28 12.5 73 5
FIJ100-80-160A 54.6 15.17 30.6 2900 7.98 57 3.8
91 25.28 26.5 9.25 71 4.3
109.2 30.34 23.2 9.85 70.4 5
FIJ100-80-160 30 8.33 9.25 1450 1.3 58 3.8
50 13.9 8 1.58 69 4.3
60 16.7 7 1.68 68 5
FIJ100-80-160A 27.3 7.58 7.66 1450 1.03 55.3 3.8
45.5 12.64 6.6 1.22 67 4.3
54.6 15.16 5.8 1.32 65.3 5
FIJ100-65-200 60 16.7 56 2900 14.5 63 3.4
100 27.8 50 18.9 72 3.9
120 23.3 44 20.3 71 5.2
FIJ100-65-200A 54.6 15.17 46.5 2900 11.5 60.1 3.4
91 25.28 41.5 14.7 70 3.9
109.2 30.34 36.6 16 68 5.2
FIJ100-65-200 30 8.33 14 1450 1.91 60 3.4
50 13.9 12.5 2.5 68 3.9
60 16.7 11 2.85 63 5.3
FIJ100-65-200A 27.3 7.58 11.6 1450 1.51 57 3.4
45.5 12.64 10.3 1.83 66 3.9
54.6 15.16 9.1 2.25 60.1 5.2
FIJ100-65-250 60 16.7 88 2900 25.2 57 3
100 27.8 80 32 68 3.6
120 33.3 74 36.1 67 4.5
FIJ100-65-250A 56.11 15.58 77 2900 21.8 54 3
93.5 25.97 70 27.4 65 3.6
112.2 31.16 64.7 30.9 64 4.5
FIJ100-65-250B 52.7 14.64 67.9 2900 18.3 53.3 3
87.8 24.39 61.7 23.1 64 3.6
105.4 29.28 57 26 62.9 4.5
FIJ100-65-250 30 8.33 22 1450 3.6 50 3
50 13.9 20 4.3 63 3.6
60 16.7 18.5 4.7 64 4.5
FIJ100-65-250A 28 7.79 19.2 1450 3.12 47 3
45.5 12.64 17.4 3.53 61 3.6
56 15.58 16.2 4.06 60.9 4.5
FIJ100-65-315 60 16.7 132 2900 44.9 48 2.8
100 27.8 125 54.9 62 3.2
120 33.8 119 60.8 64 4.2
FIJ100-65-315A 56.1 15.58 115.5 2900 39.2 45 2.8
93.5 25.97 109 45.5 61 3.2
112.2 31.16 104 52.1 61 4.2
FIJ100-65-315B 52.7 14.64 102 2900 33.3 44 2.8
88 24.44 97 38.7 60 3.2
105.4 29.28 92 44 60 4.2
FIJ100-65-315 30 8.33 33.5 1450 6.2 44 2.8
50 13.9 32 7.5 58 3.2
60 16.7 30.5 8.3 60 4.2
FIJ100-65-315A 28 7.79 29.3 1450 5.46 41 2.8
46.5 12.92 28 6.33 56 3.2
56 15.58 26.7 7.15 57 4.2
泵型号 Model 流量? Q Capacity Q  扬程 Head H(m) 转速 Speed (r/min) 功率P (KW) Power  效率 Efficiency η(%) 必需汽蚀余量 NPSH r (m)
FIJ125-80-160       2900   按 液体的比重 和 粘度选用 Select according to viscosity and granite of liquid
160 44.4 32 17.7 79 5.3

FIJ125-80-200       2900
160 44.4 50 28.3 77 4.3

FIJ125-80-200       2900
160 44.4 80 47.1 74 4

FIJ125-100-200 120 33.3 61 2900 29.3 68 4.5
200 55.6 50 35.4 77 5
240 66.7 41 38.3 70 5.8
FIJ125-100-200A 109.1 30.3 50.5 2900 23.1 64.9 4.5
182 50.56 41.4 27.4 75 5
218.2 60.6 34 30.1 67.1 5.8
FIJ125-100-200 60 16.7 15.25 1450 3.89 64 4.5
100 27.8 12.5 4.66 73 5
120 33.3 10.25 5.08 66 5.8
FIJ125-100-200A 54.7 15.2 12.6 1450 3.08 61 4.5
91 25.28 10.3 3.6 71 5
109.4 30.4 8.5 4.02 63 5.8
FIJ125-100-250 120 33.3 90 2900 47.4 62 3.7
200 55.6 80 58.1 75 4.5
240 66.7 73 64.5 74 5.5
FIJ125-100-250A 112 31.1 78 2900 40.3 59 3.7
186.5 51.8 69.5 48.35 73 4.5
224 62.2 63.5 54.5 71 5.5
FIJ125-100-250B 105.5 29.3 69 2900 34.2 58 3.7
175.5 48.75 61.5 41.4 71 4.5
211 58.6 56 46 69.9 5.5
FIJ125-100-250 60 16.7 22.5 1450 6.23 59 3.7
100 27.8 20 7.56 72 4.5
120 33.3 18.25 8.4 71 5.5
FIJ125-100-250A 56 15.56 19.5 1450 5.31 56 3.7
93 25.83 17.4 6.29 70 4.5
112 31.1 15.9 7.13 68 5.5
FIJ125-100-315 120 33.3 132.5 2900 65.3 52.6 4
200 55.6 125 94.6 72 4.5
240 66.7 120 103 75 5
FIJ125-100-315A 60 16.7 33.5 1450 10.3 53 4
100 27.8 32 13.5 65 4.5
120 33.3 30.5 15.1 66 5
FIJ125-100-400 60 16.7 52 1450 17.7 48 3.5
100 27.8 50 24.8 55 3.5
120 33.3 48.5 25.8 62 4
FIJ125-100-400A 54.6 15.17 46 1450 13 44 3.5
91 25.28 41 19 51 3.5
109.2 30.34 36.6 19.6 58 4
FIJ125-125-250 120 33.3 24.8 1450 12.3 66 2.5
200 55.6 20 14.1 77 2.8
240 66.7 15 14.4 68 3.5
FIJ125-125-250A 109.1 30.3 20.5 1450 9.7 62.8 2.5
182 50.56 16.5 10.9 75 2.8
218.2 60.6 12.4 11.3 65.2 3.5
FIJ125-125-315 120 33.3 36.3 1450 18.8 63 2.5
200 55.6 32 23.2 75 2.8
240 66.7 28.5 25.9 72 3.8
FIJ125-125-315A 109.1 30.3 30 1450 14.85 60 2.5
182 50.56 25.5 17.32 73 2.8
218.2 60.6 23.5 20.23 69 3.8
FIJ125-125-400 120 33.3 57.5 1450 30.8 61 2
200 55.6 50 38.9 70 2.5
240 66.7 44 45.6 63 3
泵型号 Model 流量?Q Capacity Q  扬程 Head H(m) 转速 Speed (r/min) 功率P (KW) Power 效率 Efficiency η(%) 必需汽蚀余量 NPSH r (m)
FIJ125-125-400A 109.1 30.3 47.5 1450 24.3 按 液体的比重 和 粘度选用 Select according to viscosity and granite of liquid 58 2
182 50.56 41 29.9 68 2.5
218.2 60.6 36.5 36.1 60 3
FIJ200-150-250 240 66.7 23 1450 23.3   2.5
400 111.1 20 29.4 74 2.8
460 127.8 18 30.6   3
FIJ200-150-315 240 66.7 35.6 1450 34.7 67 3
400 111.1 32 44.1 79 3.5
460 127.8 29.4 47.8 77 4
FIJ200-150-315A 218.2 60.6 29.4 1450 27.3 64 3
363 100.8 25.5 32.7 77 3.5
418 116.1 24.3 37.4 74 4
FIJ200-150-400 240 66.7 55.8 1450 54.4 67 3
400 111.1 50 69.8 78 3.5
460 127.8 47 78.5 75 4
FIJ200-150-400A 218.2 60.6 46 1450 42.7 64 3
363 100.8 41 53.3 76 3.5
418 116.1 38.8 61.3 72 4
FIJ250-200-250A 600   12 1450
FIJ250-200-250B 540   11 1450
FIJ250-200-315A 650   24 1450
FIJ250-200-315B 600   20 1450
FIJ250-200-315C 550   16 1450
FIJ250-200-400A 650   52 1450
FIJ250-200-400B 550   45 1450
FIJ250-200-400C 500   40 1450
FIJ250-200-500A 700   75 1450
FIJ250-200-500B 650   65 1450
FIJ250-200-500C 550   55 1450
FIJ300-250-315A 950   22 1450
FIJ300-250-315B 900   20 1450
FIJ300-250-315C 800   16 1450
FIJ300-250-400A 1000   44 1450
FIJ300-250-400B 900   38 1450
FIJ300-250-400C 850   30 1450
FIJ300-250-500A 1200   80 1450
FIJ300-250-500B 1100   70 1450
FIJ300-250-500C 1000   55 1450
泵型号 Model 叶轮形式 impeller type 泵额定转速n=2900r/min speed
流量 M3/h Capacity 扬程 H m Head  相对密度=1.00 相对密度=1.00 相对密度=1.00
relative density<1.0 relative density<1.35 relative density<1.86
电机功率及型号? motor power or model
Kw  Kw  Kw
FIJ32-20-125   3.2 20 1.1 YB802-2/1.1 1.5 YB802-2/1.1 1.5 YB90S-2/1.5
FIJ32-20-160   3.2 32 1.5 YB90S-2/1.5 3 YB90L-2/2.2 3 YB100L-2/3.0
FIJ32-20-200   3.2 50 3 YB100L-2/3.0 5.5 YB112M-2/4.0 5.5 YB132S1-2/5.5
FIJ32-20-250   3.2 80 5.5 YB132S1-2/5.5 11 YB132S2-2/7.5 11 YB160M1-2/11
FIJ40-25-160   6.3 20 1.5 YB90S-2/1.5 3 YB90L-2/2.2 3 YB100L-2/3.0
FIJ40-25-160   6.3 32 2.2 YB90L-2/2.2 4 YB100L-2/3.0 4 YB112M-2/4.0
FIJ40-25-200   6.3 50 4 YB112M-2/4.0 7.5 YB132S1-2/5.5 7.5 YB132S2-2/7.5
FIJ40-25-250   6.3 80 7.5 YB132S2-2/7.5 15 YB160M1-2/11 15 YB160M2-2/15
FIJ50-32-125   12.5 20 1.5 YB90S-2/1.5 3 YB90L-2/2.2 3 YB100L-2/3.0
FIJ50-32-125A   11.3 16.4
FIJ50-32-160   12.5 32 3 YB100L-2/3.0 5.5 YB112M-2/4.0 5.5 YB132S1-2/5.5
FIJ50-32-160A   11.3 26.4 2.2 YB90L-2/2.2 4 YB100L-2/4.0 4 YB112M-2/4.0
FIJ50-32-200   12.5 50 5.5 YB132S1-2/5.5 11 YB132S2-2/7.5 11 YB160M1-2/11
FIJ50-32-200A   11.3 41 4 YB112M-2/4.0 7.5 YB132S1-2/5.5 7.5 YB132S2-2/7.5
FIJ50-32-250   12.5 80 11 YB160M1-2/11 18.5 YS160M2-2/15 18.5 YB160L-2/18.5
FIJ50-32-250A   11.7 70 7.5 YB132S2-2/7.5 15 YB160M1-2/11 15 YB160M2-2/15
FIJ50-32-250B   11 62
FIJ65-50-125   25 20 3 YB100L-2/3.0 5.5 YB112M-2/4.0 5.5 YB132S1-2/5.5
FIJ65-50-125A   22.7 16.5 2.2 YB90L-2/2.2 4 YB100L-2/3.0 4 YB112M-2/4.0
FIJ65-50-160   25 32 5.5 YB132S1-2/5.5 7.5 YB132S1-2/5.5 7.5 YB132S2-2/7.5
FIJ65-50-160A   22.7 26.5 4 YB112M-2/4.0 5.5 YB112M-2/4.0 5.5 YB132S1-2/5.5
FIJ65-40-200   25 50 7.5 YB132S2-2/7.5 11 YB160M1-2/11 15 YS160M2-2/15
FIJ65-40-200A   22.7 41 5.5 YB132S1-2/5.5 7.5 YB132S2-2/7.5 11 YB160M1-2/11
FIJ65-40-250   25 80 15 YS160M2-2/15 18.5 YB160L-2/18.5 22 YB180M-2/22
FIJ65-40-250A   23.4 74.8 11 YB160M1-2/11 15 YS160M2-2/15
FIJ65-40-250B   22 61.8 18.5 YB160L-2/18.5
FIJ65-40-315   25 125 30 YB200L1-2/30 30 YB200L1-2/30 45 YB225M-2/45
FIJ65-40-315A   23.4 109.5 22 YB180M-2/22 30 37 YB200L2-2/37
FIJ65-40-315B   22 96.5 18.5 YB160L-2/18.5 22 YB180M-2/22 30 YB200L1-2/30
FIJ80-65-125   50 20 4 YB112M-2/4.0 5.5 YB132S1-2/5.5 7.5 YB132S2-2/7.5
FIJ80-65-125A   45.3 16.5
FIJ80-65-160   50 32 7.5 YB132S2-2/7.5 11 YB160M1-2/11 15 YS160M2-2/15
FIJ80-65-160A   45.4 26.4 5.5 YB132S1-2/5.5 7.5 YB132S1-2/5.5 11 YB160M1-2/11
FIJ80-50-200   50 50 11 YB160M1-2/11 15 YS160M2-2/15 22 YB180M-2/22
FIJ80-50-200A   45.3 41 18.5 YB160L-2/18.5
FIJ80-50-250   50 80 22 YB180M-2/22 30 YB200L1-2/30 45 YB225M-2/45
FIJ80-50-250A   46.9 70.5 18.5 YB160L-2/18.5 22 YB180M-2/22 30 YB200L1-2/30
FIJ80-50-250B   44 62.2 15 YB160M2-2/15 22   30
FIJ80-50-315   50 125 37 YB200L2-2/37 55 YB250M-2/55 75 YB280S-2/75
FIJ80-50-315A   46.9 110 30 YB200L1-2/30 45 YB225M-2/45 55 YB250M-2/55
FIJ80-50-315B   44 9.7 30 37 YB200L2-2/37 45 YB225M-2/45
FIJ100-80-125   100 20 11 YB160M1-2/11 11 YB160M1-2/11 15 YB160M2-2/15
FIJ100-80-125A   91.8 16.8 7.5 YB132S2-2/7.5 11 YB160M1-2/11
FIJ100-80-160   100 32 15 YB160M2-2/15 18.5 YB160L-2/18.5 22 YB180M-2/22
FIJ100-80-160A   91 26.5 11 YB160M1-2/11 15 YB160M2-2/15 18.5 YB160L-2/18.5
FIJ100-65-200   100 50 22 YB180M-2/22 30 YB200L1-2/30 37 YB200L2-2/37
FIJ100-65-200A   91 41.5 18.5 YB160L-2/18.5 22 YB180M-2/22 30 YB200L1-2/30
泵型号 Model 泵额定转速 n=1450r/min speed
流量 M3/h Capacity 扬程 H m Head 相对密度=1.84 相对密度=1.00 相对密度=1.25
relative density<1.0 relative density<1.35 relative density<1.86

Kw  Kw  Kw
FIJ32-20-125
FIJ32-20-160
FIJ32-20-200
FIJ32-20-250
FIJ40-25-160
FIJ40-25-160
FIJ40-25-200
FIJ40-25-250
FIJ50-32-125 6.3 5 0.55 YB801-4/0.55 0.55 YB801-4/0.55 0.55 YB801-4/0.55
FIJ50-32-125A 5.7 4.1
FIJ50-32-160 6.3 8 0.75 YB802-4/0.75
FIJ50-32-160A 5.7 6.6
FIJ50-32-200 6.3 12.5 0.75 YB802-4/0.75 1.1 YB90S-4/1.1 1.5 YB90L-4/1.5
FIJ50-32-200A 5.7 10.3 0.75 YB802-4/0.75 1.1 YB90S-4/1.1
FIJ50-32-250 6.3 20 1.5 YB90L-4/1.5 2.2 YB100L-4/2.2 3 YB100L2-4/3.0
FIJ50-32-250A 5.9 17.5 2.2 YB100L1-4/2.2
FIJ50-32-250B
FIJ65-50-125 12.5 8 0.55 YB801-4/0.55 0.55 YB801-4/0.55 1.1 YB90S-4/1.1
FIJ65-50-125A 11.3 4.1 0.55 0.55 YB801-4/0.55
FIJ65-50-160 12.5 8   0.75 YB802-4/0.75 1.1 YB90S-4/1.1
FIJ65-50-160A 11.3 6.6 0.55   0.75   1.1
FIJ65-40-200 12.5 12.5 1.1 YB90S-4/1.1 1.5 YB90L-4/1.5 2.2 YB100L1-4/2.2
FIJ65-40-200A 11.3 10.3 0.75 YB802-4/0.75 1.1 YB90S-4/1.1 1.5 YB90L-4/1.5
FIJ65-40-250 12.5 20 2.2 YB100L1-4/2.2 3 YB100L2-4/3.0 4 YB112M-4/4.0
FIJ65-40-250A 11.7 17.5 1.5 YB90L-4/1.5 2.2 YB100L1-4/2.2 3 YB100L2-4/3.0
FIJ65-40-250B     4 YB112M-4/4.0 5.5 YB132S-4/5.5 7.5 YB132M-4/7.5
FIJ65-40-315 12.5 32
FIJ65-40-315A 11.7 28 3 YB100L2-4/3.0 4 YB112M-4/4.0 5.5 YB132S-4/5.5
FIJ65-40-315B
FIJ80-65-125 25 5 0.75 YB802-4/0.75 0.75 YB802-4/0.75 1.1 YB90S-4/1.1
FIJ80-65-125A 22.6 4.1 0.55 YB801-4/0.55 0.55 YB801-4/0.55 0.75 YB802-4/0.75
FIJ80-65-160 25 8 1.1 YB90S-4/1.1 1.5 YB90L-4/1.5 2.2 YB100L1-4/2.2
FIJ80-65-160A 22.7 6.6 0.75 YB802-4/0.75 1.1 YB90S-4/1.1 1.5 YB90L-4/1.5
FIJ80-50-200 25 12.5 1.5 YB90L-4/1.5 2.2 YB100L1-4/2.2 3 YB100L2-4/3.0
FIJ80-50-200A 22.7 10.3 2.2 YB100L1-4/2.2
FIJ80-50-250 25 20 3   4   5.5
FIJ80-50-250A 23.4 17.6 YB100L2-4/3.0 4 YB112M-4/4.0 5.5 YB132S-4/5.5
FIJ80-50-250B     5.5 YB132S-4/5.5 7.5 YB132M-4/7.5 11 YB160M-4/11
FIJ80-50-315 25 32 5.5 YB132S-4/5.5 7.5 YB132M-4/7.5 11 YB160M-4/11
FIJ80-50-315A 23.5 28.3 5.5
FIJ80-50-315B
FIJ100-80-125     2.2 YB100L1-4/2.2 2.2 YB100L1-4/2.2 3 YB100L2-4/3.0
FIJ100-80-125A
FIJ100-80-160 50 8
FIJ100-80-160A 45.5 6.6 1.5 YB90L-4/1.5
FIJ100-65-200 50 12.5 3 YB100L2-4/3.0 4 YB112M-4/4.0 5.5 YB132S-4/5.5
FIJ100-65-200A 45.5 10.3 2.2 YB100L1-4/2.2 3 YB100L2-4/3.0 4 YB112M-4/4.0
FIJ100-65-250 50 20 5.5 YB132S-4/5.5 7.5 YB132M-4/7.5 1.1 YB160M-4/11
FIJ100-65-250A 45.5 17.4 4 YB112M-4/4.0 5.5 YB132S-4/5.5 7.5 YB132M-4/7.5
泵型号 Model 叶轮形式 impeller type 泵额定转速? n=2900r/min speed
流量 M3/h Capacity 扬程 H m Head 相对密度=1.00 relative density<1.0 相对密度=1.00 relative density<1.35 相对密度=1.00 relative density<1.86
电机功率及型号? motor power or model
Kw - Kw - Kw -
FIJ100-65-250 - 100 80 37 YB200L2-2/37 45 YB225M-2/45 75 YB280S-2/75
FIJ100-65-250A - 93.5 70 30 YB200L2-2/30 37 YB200L2-2/37 55 YB250M-2/55
FIJ100-65-250B - 87.8 61.7 45 YB225M-2/45
FIJ100-65-315 - 100 125 75 YB280S-2/75 75 YB280S-2/75 110 YB135S-2/110
FIJ100-65-315A - 93.5 109 55 YB250M-2/55 -   - -
FIJ100-65-315B - 88 97 45 YB225M-2/55 55 YB250M-2/55 75 YB280S-2/75
FIJ125-80-160 - 160 32 22 YB180M-2/22 30 YB200L1-2/30 37 YB200L2-2/37
FIJ125-80-200 - 160 50 37 YB200L2-2/37 45 YB225M-2/45 55 YB250M-2/55
FIJ125-80-250 - 160 80 55 YB250M-2/55 75 YB280S-2/75 90 YB280M-2/90
FIJ125-100-200 - 200 50 45 YB225M-2/45 55 YB250M-2/55 75 YB280S-2/75
FIJ125-100-200A - 182 41.4 30 YB200L1-2/30 37 YB200L2-2/37 55 YB250M-2/55
FIJ125-100-250 - 200 80 75 YB280S-2/75 90 YB280M-2/90 110 -
FIJ125-100-250A - 186.5 69.5 55 YB250M-2/55 75 YB280S-2/75 90 YB280M-2/90
FIJ125-100-250B - 175.5 61.5 45 YB225M-2/45
FIJ125-100-315 - 200 125 110 YB315S-2/110 132 YB315M1-2/132 - -
泵型号 Model 叶轮形式 impeller type 泵额定转速n=2900r/min?speed
流量M3/h Capacity 扬程 H m Head 相对密度=1.00 relative density<1.0 相对密度=1.00 relative density<1.35 相对密度=1.00 relative density<1.86
电机功率及型号motor power or model
Kw   Kw   Kw
FIJ100-65-315   50 32 7.5 YB132M-4/7.5 11 YB160M-4/11 15 YB160L-4/15
FIJ100-65-315A   46.5 28
FIJ100-65-315B       5.5 YB132S-4/5.5 7.5 YB132M-4/7.5 11 YB160M-4/11
FIJ125-100-200   100 12.5 5.5 YB132S-4/5.5 7.5 YB132M-4/7.5 11 YB160M-4/11
FIJ125-100-200A   91 10.3 4 YB112M-4/4.0 5.5 YB132S-4/5.5 7.5 YB132M-4/7.5
FIJ125-100-250   100 20 11 YB160M-4/11 11 YB160M-4/11 15 YB160L-4/15
FIJ125-100-250A   93 17.4 7.5 YB132M-4/7.5 11 YB160M-4/11 15 YB160L-4/15
FIJ125-100-250B       18.5 YB180L-4/18.5 22 YB180L-4/22 30 YB200L-4/30
FIJ125-100-315   100 32 15 YB160L-4/15 22 YB180L-4/22 30 YB200L4/30
FIJ125-100-400   100 50 32 YB200L-4/30 37 YB225S-4/37 55 YB250M-4/55
FIJ150-125-250   200 20 18.5 YB180L-4/18.5 22 YB180L-4/22 30 YB200L-4/30
FIJ150-125-250A   182 16.5 15 YB160L-4/15 15 YB160L-4/15 22 YB180L-4/22
FIJ150-125-315   200 32 30 YB200L-4/30 37 YB225S-4/37 45 YB225M-4/45
FIJ150-125-315A   182 25.5 22 YB180L-4/22 30 YB220L-4/30 37 YB225S-4/37
FIJ150-125-400   200 50 45 YB225M-4/45 55 YB250M-4/55 75 YB280S-4/75
FIJ150-125-400A   182 41 37 YB225S-4/37 45 YB225M-4/45
FIJ200-150-250   400 20 37 YB225S-4/37 45 YB225M-4/45 75 YB280M-4/90
FIJ200-150-250A   360 16.2 30 YB200L-4/30 30 YB200L-4/30 45 YB225M-4/45
FIJ200-150-315   400 32 45 YB225M-4/45 75 YB280S-4/75 90 YB280S-4/75
FIJ200-150-315A   363 25.5 37 YB225S-4/37 45 YB225M-4/45 75 YB280S-4/75
FIJ200-150-400   400 50 75 YB280S-4/75 110 YB315S-4/110 132 YB315M1-4/132
FIJ200-150-400A   363 41 55 YB225M-4/45 75 YB280S-4/75 110 YB315S-4/110

选购注意事项:

本网页所示FIJ型悬臂式化工离心泵说明书、样本,包括:型号、结构图、性能参数、安装尺寸、标准等,仅为上海离心泵厂家上海依耐泵阀有限公司提供的参考,详细的FIJ型悬臂式化工离心泵说明书及价格,请来电来函垂询。鉴于编辑水平有限,错误和不妥之处在所难免,敬请指正。

产品列表
电 话:158 0062 0450
传 真:021 - 5224 1907
邮 箱:info@remy.sh.cn
收缩
  • 电话咨询

  • 158 0062 0450
