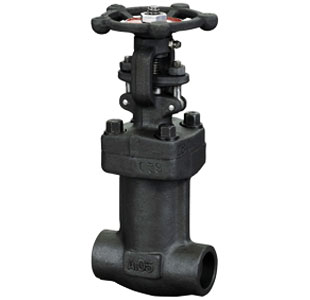

Forged Bellows Seal Globe Valve

All Weled Bellows Seal Globe Valve

Specification

ASME Pressure Class 150 (0.6 MPa - 2.0 MPa) - 1500 Lb (25.0 MPa), 1/2″ - 2″ (15 mm - 50 mm)

Bolted Bonnet (BB), Outside Screw & Yoke (OS & Y), Threaded (NPT / BSP) or Socket Weld (SW) Ends.

Raised Flanged (RF), Ring Joint Flanged (RTJ), Flat Face Flanged (FF), Male & Female Face Flange (M&F)

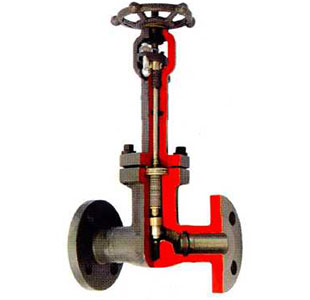

All Weled Bellows Seal Globe Valve
1. Design and Manufacture Conform to API 602; MSS-SP-117
2. Connection Ends Conform to:
1) Socket Welded Ends Conform to ANSI B16.11;
2) Screw Ends Conform to ANSI B1.20.1;
3) Flanged Ends Conform to ANSI B16.5;
3. Test and Inspection conform to API 598
4. Structure features: Bolted Bonnet (B.B), Outside Screw and Yoke (OS & Y)
5. Materials Conform to ANSI / ASTM
6. Main Materials: A105, 304(L), 316(L), F347, F321.
7. Bellow Materials: 304,321,316, Inconel 625, Hastelloy C 276, Monel.

Materials

No. Part Name A105/F6a A105/F6a + HFS A105/F6a + STELLITE F304(L)/304(L) F316(L)/316(L)
1 Body A105 A105 + STELLITE A105 + STELLITE F304(L) F316(L)
3 Disc F6a F6a F6a + STELLITE F304(L) F316(L)
4 Stem 410 410 410 304(L) 316(L)
6 Bonnet A105 A105 A105 F304(L) F316(L)
8 Pin 410 410 410 304 304
9 Gland 410 410 410 304 316
10 Gland Eyebolt B7 B7 B7 B8(M) B8(M)
11 Gland Flange A105 A105 A105 F304 F304
12 Hex Nut 2H 2H 2H 8(M) 8(M)
13 Stem Nut 410 410 410 410 410
14 Locking Nut 35 35 35 35 35
15 Nameplate AL AL AL AL AL
16 Handwheel A197 A197 A197 A197 A197
17 Lubricating Gasket 410 410 410 410 410
18 Packing Graphite Graphite Graphite Graphite Graphite
28 Bellow F321 F321 F321 F316 F316L
29 Coupling pipe A105 A105 A105 A304(L) A316 ( L)
31 Pin 304 304 304 304 316

Sizes (inch / mm) and Weights (Kg): Class 800 Lb, BB, OS & Y

Bolted Bonnet, Full Port Outside Screw and Yoke (OS & Y)
Threaded, Socket Welded Ends; Design to API 602 / MSS-SP-117

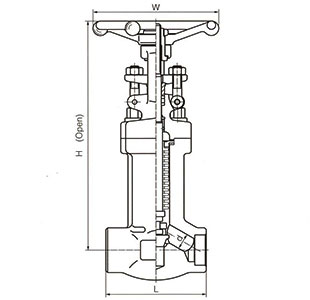

Sizes and Weights of 800 Lb, Threaded, Socket Welded Ends, BB, Forged Bellows Seal Globe Valve
Specification (NPS) R.P   1/2 3/4 1 1 1/4 1 1/2 2 2 1/2
F.P 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2
Face to face (mm) L 79 79 92 111 120 152 172 200
Handwheel Diameter (mm) W 100 100 100 125 160 160 180 200
Height (mm) H 237 237 239 270 298 340 395 470
Flow Port Dimension (mm) d 7.0 9.0 13 17.5 23 30 35 46
Weight (Kg)   3.3 3.1 4.2 5.5 7.25 9.8 16 21

Sizes (inch / mm) and Weights (Kg): Class 1500 Lb, BB, OS & Y

Bolted Bonnet, Full Port Outside Screw and Yoke(OS & Y)
Threaded, Socket Welded Ends; Design to API 602 / MSS-SP-117

Sizes and Weights of 1500 Lb, Threaded, or Socket Welded Ends, BB, Forged Bellows Seal Globe Valve
Specification (NPS) F.P 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2
Face to Face (mm) L 92 92 111 111 120 152 172 200
Handwheel Diameter (mm) W 100 100 125 125 160 160 180 200
Height (mm) H 290 330 380 380 400 450 520 650
Flow Port Dimension (mm) d 7 9 12 15 20 28 32 40
Weight (Kg)   3.3 3.5 5 7.5 10 16 27 30

Sizes (inch / mm) and Weights (Kg): Class 150, 300,600 Lb BB, OS & Y

Bolted Bonnet, Full Port Outside Screw and Yoke(OS & Y)
Flange-Welded Ends; Design to API 602 / MSS-SP-117

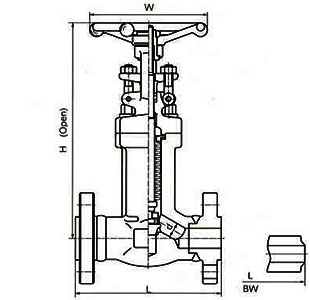

Sizes and Weights of 150, 300, 600 Lb, Flange Welded Ends, BB, Forged Bellows Seal Globe Valve
Specification (NPS) R.P 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2
Face to Face (mm) CL150 L(RF)
L1(BW)
- - 108 117 127 140 165 203
CL300 - - 152 178 203 216 229 267
CL600 - - 165 190 216 229 241 292
Handwheel Diameter (mm) W - - 100 100 125 160 160 180
Height (mm) CL150/CL300 H - - 340/350 340/350 360/375 380/400 450/470 540/570
CL600 - - 360 360 390 430 500 600
Flow Port Dimension (mm) d - - 9 13 17.5 23 30 35
Weight (Kg) CL150 RF/BW   - - 4.17/3.5 4.8/4.1 7.7/6.7 12.5/11.5 14/11.5 21.5/18
CL300 RF/BW   - - 4.5/37 5.2/4.5 8.3/7.7 14.5/12.5 16/13.5 24/20
CL600 RF/BW   - - 6.3/5.2 8.6/6.5 13.5/10 19.5/15.5 26/19.5 44/38

Sizes (inch / mm) and Weights (Kg): Class 1500 Lb BB, OS & Y

Bolted Bonnet, Full Port Outside Screw and Yoke(OS & Y)
Flange-Welded Ends; Design to API 602 / MSS-SP-117

Sizes and Weights of 1500 Lb, Flange Welded Ends, BB, Forged Bellows Seal Globe Valve
Specification
(NPS)
F.P 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2
Length
(mm)
L(RF), L1(BW) - - 216 229 254 280 305 368
Face to Face L(RTJ) - - 216 229 254 280 305 371
Handwheel Diameter
(mm)
W - - 125 125 160 160 180 200
Height
(mm)
H - - 380 380 400 450 520 650
Flow Port Dimension
(mm)
d - - 12 15 20 28 32 40
Weight
(Kg)
  - - 11.6 12.3 15 17.5 25 38.3

Sizes (inch / mm) and Weights (Kg): Class 800 Lb BB, OS & Y

Bolted Bonnet, Full Port & Reducing Port Outside Screw and Yoke(OS & Y)
Threaded, Socket Welded Ends; Design to API 602 / MSS-SP-117

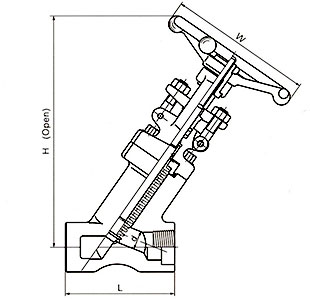

Sizes and Weights of Y Pattern 800 Lb, Threaded or Socket Welded Ends, BB, Forged Bellows Seal Globe Valve
Specification (NPS) R.F   1/2 3/4 1 1 1/4 1 1/2 2 2 1/2 3
F.P 1/4 3/8 1/2 3/4 1 1 1/4 1 1/2 2 2 1/2
Face to Face (mm) L 98 98 98 111 140 140 155 170
Handwheel Diameter (mm) W 100 100 100 125 160 160 180 200
Height (mm) H 240 240 240 260 350 350 380 450
Flow port dimension (mm) d 7 9 13 17.5 23 30 35 46
Weight (Kg)   3.1 3.1 4.3 5.6 10.8 10.8 16 22
