MC卡套式接头

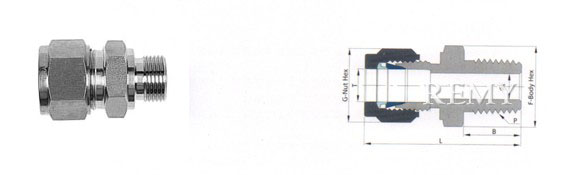

MC卡套式接头1
T-Tube O.D PT-NPT Pipe Size (in) Basic Ordering Number E Minimum Opening L B G F
6 6 6 6 1/8 1/4 3/8 1/2 -MC-06-01 -MC-06-02 -MC-06-03 -MC-06-04 4.5 4.5 4.5 4.5 35 37 38 41 10 13 14 17 14 14 14 14 14 14 14 14
8 8 8 8 1/8 1/4 3/8 1/2 -MC-08-01 -MC-08-02 -MC-08-03 -MC-08-04 4.5 6 6 6 37 39 40 43 10 13 14 17 17 17 17 17 14 14 14 14
10 10 10 10 10 1/8 1/4 3/8 1/2 3/4 -MC-10-01 -MC-10-02 -MC-10-03 -MC-10-04 -MC-10-06 4.5 6 7.5 7.5 7.5 37 39 40 43 45 10 13 14 17 19 19 19 19 19 19 17 17 19 22 24
12 12 12 12 12 1/8 1/4 3/8 1/2 3/4 -MC-12-01 -MC-12-02 -MC-12-03 -MC-12-04 -MC-12-06 4.5 6 7.5 9.5 9.5 42 45 46 49 51 10 13 14 17 19 22 22 22 22 22 19 19 19 22 24
14 14 14 14 14 1/8 1/4 3/8 1/2 3/4 -MC-14-01 -MC-14-02 -MC-14-03 -MC-14-04 -MC-14-06 4.5 6 9.5 11 11 43 46 47 50 52 10 13 14 17 19 24 24 24 24 24 24 24 24 24 24
16 16 16 16 1/4 3/8 1/2 3/4 -MC-16-02 -MC-16-03 -MC-16-04 -MC-16-06 6 7.5 11 13 45 46 49 51 13 14 17 19 27 27 27 27 24 24 24 27
18 18 18 3/8 1/2 3/4 -MC-18-03 -MC-18-04 -MC-18-06 7.5 11 14 46 50 52 14 17 19 30 30 30 27 27 27
20 20 20 1/2 3/4 1 -MC-20-04 -MC-20-06 -MC-20-08 11 14 15 52 54 57 17 19 22 32 32 32 30 30 34
22 22 22 1/2 3/4 1 -MC-22-04 -MC-22-06 -MC-22-08 11 16 18 52 54 57 17 19 22 32 32 32 30 30 37
MC卡套式接头1
T-Tube O.D PT-NPT Pipe Size (in) Basic Ordering Number E Minimum Opening L B G F
1/4 1/4 1/4 1/4 1/8 1/4 3/8 1/2 -MC-2-01 -MC-2-02 -MC-2-03 -MC-2-04 4.5 4.5 4.5 4.5 35 37 38 41 10 13 14 17 14 14 14 14 14 14 14 14
3/8 3/8 3/8 3/8 3/8 1/8 1/4 3/8 1/2 3/4 -MC-3-01 -MC-3-02 -MC-3-03 -MC-3-04 -MC-3-06 4.5 6 7.5 7.5 37 39 40 43 45 10 13 14 17 19 19 19 19 19 19 17 17 19 22 24
1/2 1/2 1/2 1/2 1/2 1/8 1/4 3/8 1/2 3/4 -MC-4-01 -MC-4-02 -MC-4-03 -MC-4-04 -MC-4-06 4.5 6 7.5 9.5 9.5 42 45 46 49 51 10 13 14 17 19 22 22 22 22 22 19 19 19 22 24

选购注意事项：

本网页所示MC卡套式接头样本，包括：型号、结构图、性能参数、安装尺寸等，仅为参考，详细的MC卡套式接头说明书及价格，请来电来函垂询。鉴于编辑水平有限，错误和不妥之处在所难免，敬请指正。
