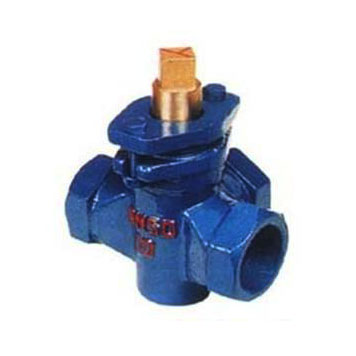

X14W 3 Way Threaded Ends Plug Valve

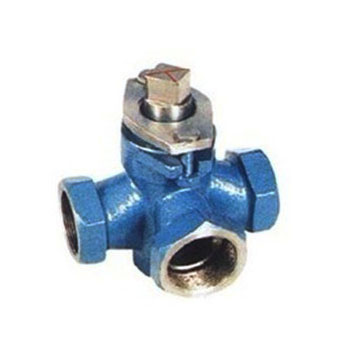

Stainless Steel X14W 3 Way Threaded Ends Plug Valve

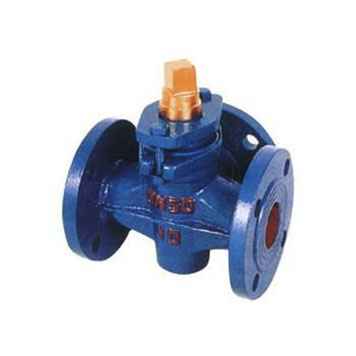

X14W 3 Way Flanged Ends Plug Valve

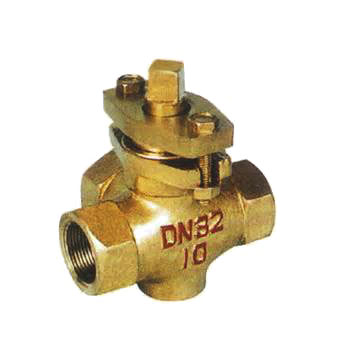

Copper Plug X14W 3 Way Threaded Ends Plug Valve
Copper X14W 3 Way Threaded Ends Plug Valve

Materials

Name Body Plug Bonnet Packing
X14W-1.0 GGG-25 GGG-25 GGG-25 Asbestos Fibre, Graphite
X14T-1.0 GGG-25 Copper GGG-25
X14W-1.0T Copper Copper Copper
X14W-1.0P SS.304 SS.304 SS.304
X14W-1.0R SS.316 SS.316 SS.316

Performance

Type Nominal Pressure
PN
(MPa)		 Test Pressure
PS
(MPa)		 Fluids Working Temperature
( °C )
Body Seal
X14W-1.0 1.0 1.5 1.1 Oil, Gas ≤ 100
X14T-1.0 1.0 1.5 1.1 Water, Oil, Gas
X14W-1.0T 1.0 1.5 1.1 Water, Oil, Gas
X14W-1.0P 1.0 1.5 1.1 Nitric Acid & Acetic Acid ≤ 250°C
X14W-1.0R 1.0 1.5 1.1 Nitric Acid & Acetic Acid ≤ 250°C

Dimensions

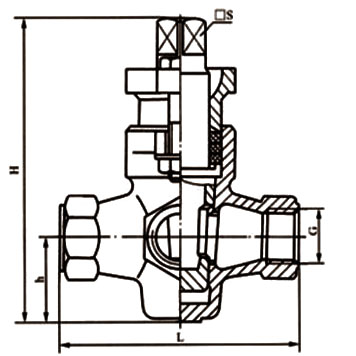

Dimensions of X14W 3 Way Threaded Ends Plug Valve
DN G Thread Dimensions (mm)
H L h □S
15 1/2 117 85 30 11
20 3/4 126 90 34 14
25 1 160 110 42 17
32 11/4 176 130 48 19
40 11/2 210 150 64 20
50 2 238 170 76 27
65 21/2 250 220 80 30
80 3 340 250 115 38
100 4 350 300 125 42
