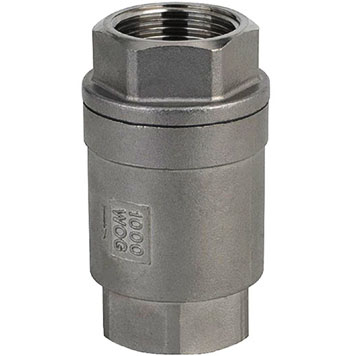

H12H/Y 1000 WOG Stainless Steel 304 / 316 Vertical Check Valve

Internal thread,socket welded vertical check valves

Specification

• Nominal Pressue: 1000 WOG
• Working Fluids: Water, Oil, Gas
• Working Temperature: t ≤ 100°C
• Materials: SS 304 / 316.
• Connection: NPT / BSP Threaded & Socket Welded.
• Cylindrical pipe thread is in line with ISO 228 Standard.

Dimensions and Weights

Internal thread,socket welded vertical check valve constructral diagram
Nominal Diameter Dimensions ( mm ) Weight
DN ( mm ) L D h ф (Kg)
15 110 22 15 50 0.8
20 120 28 16 60 1.5
25 140 34 18 68 2.1
32 160 42 20 82 3.1
40 190 50 22 95 4.8
50 235 61 25 110 6
