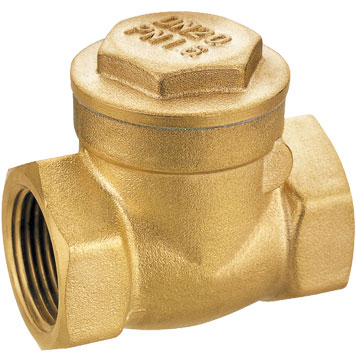

H41W/X Brass Swing Check Valve

H41W/X Brass Swing Check Valve

Specification

• Pressure: 1.6 MPa
• Fluid: water
• Temperature: - 20 °C ≤ t ≤150 °C (Brass Seated) / 0 °C ≤ t ≤ 90°C (Rubber Seated)

Materials

No. Name Materials
ANSI / JIS / DIN
1 Body Brass
2 Disc Brass
3 Bonnet Brass
4 Seat Brass
5 Pin SUS304
6 Gasket PTFE / RPTFE / PPL
7 Nut A193-8

Dimensions

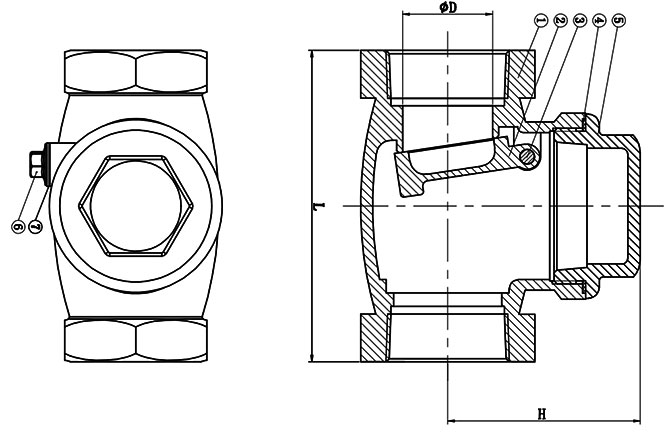

Dimensions of H41W/X Brass Swing Check Valve
SIZE 1/2″ 3/4″ 1″ 1-1/4″ 1-1/2″ 2″ 2-1/2″ 3″
DN 15 20 25 32 40 50 65 80
H 42 51 60 67 75 81 93 104
L 65 80 90 105 120 140 180 200
