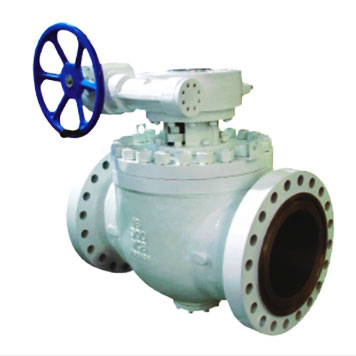

Top Entry Ball Valves
  • Size: 2"~24"
  • Class: 150 - 1500 Lbs (PN 1.6 - )
  • Two-Piece Cast Steel and Forged Steel Body
  • Floating & Trunnion Mounted Ball, Full & Reduced Bore
  • Anti-Static Device
  • Blow-out Proof Stem
  • Fire Safe Design
  • Emergency Sealant Injector

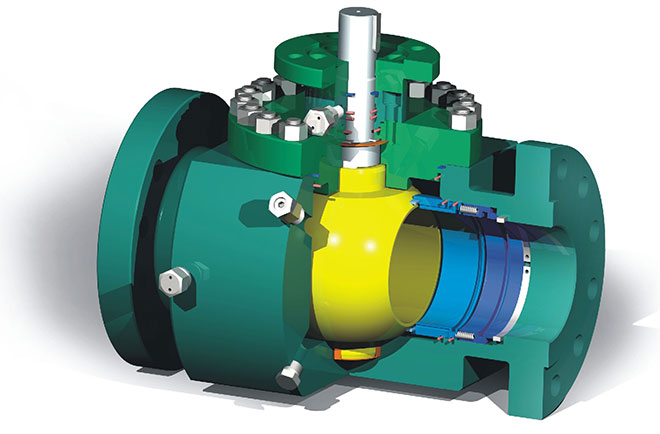

Materials

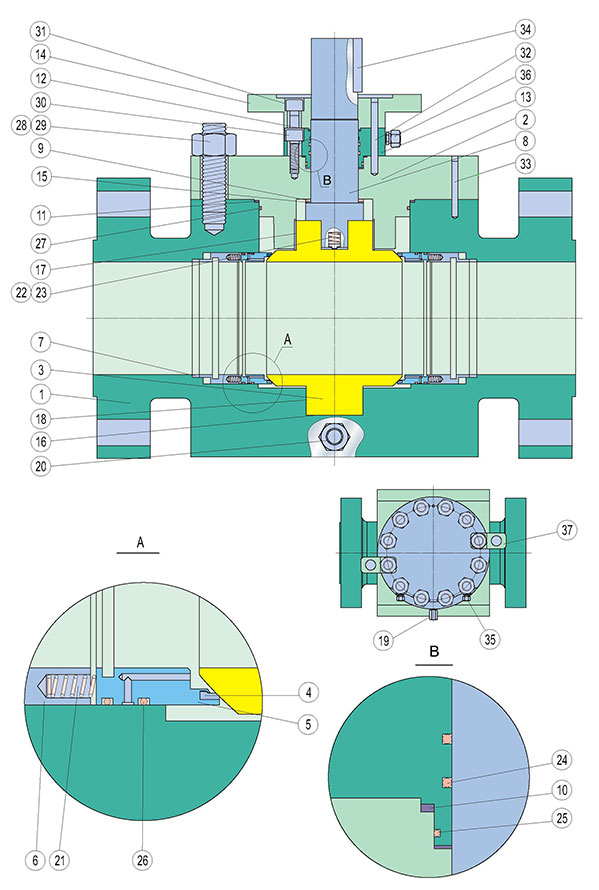

Materials of Top Entry Ball Valves
No. Part A105/ENP A105/316 F316/316 LF2/316NACE
1 Body ASTM A105 ASTM A105 ASTM A182-F316 ASTM A350-LF2
2 Adapter ASTM A105 ASTM A105 ASTM A182-F316 ASTM A350-LF2
3 Ball ASTM A105/ENP ASTM A182-F316 ASTM A182-F316 ASTM A182-F316
4 Seat Insert PTFE / Nylon PTFE / Nylon PTFE / Nylon PTFE / Nylon
5 Seat Ring ASTM A105/ENP ASTM A182-F316 ASTM A182-F316 ASTM A182-F316
6 Spring Seat ASTM A105/ENP ASTM A182-F316 ASTM A182-F316 ASTM A182-F316
7 Retainer Ring ASTM A276-420 ASTM A182-F316 ASTM A182-F316 ASTM A182-F316
8 Stem ASTM A105/ENP ASTM A182-F316 ASTM A182-F316 ASTM A182-F316
9 Shim Stainless Steel Stainless Steel Stainless Steel Stainless Steel
10 ‘Gland Gasket 304SS + Graphite 316SS + Graphite 316SS + Graphite 316SS + Graphite
11 ‘Body Gasket 304SS + Graphite 316SS + Graphite 316SS + Graphite 316SS + Graphite
12 ‘Stem Firesafe Packing Flexible Graphite Flexible Graphite Flexible Graphite Flexible Graphite
13 Gland Flange ASTM A105 ASTM A105 ASTM A182-F316 ASTM A350-LF2
14 Top Flange ASTM A105 ASTM A105 ASTM A182-F316 ASTM A350-LF2
15 Thrust Washer PTFE PTFE PTFE PTFE
16 Adjusting Washer PTFE PTFE PTFE PTFE
17 Bearing 316+PTFE+MoS2 316+PTFE+MoS2 316+PTFE+MoS2 316+PTFE+MoS2
18 Bearing 316+PTFE+MoS2 316+PTFE+MoS2 316+PTFE+MoS2 316+PTFE+MoS2
19 Vent Valve Stainless Steel Stainless Steel Stainless Steel Stainless Steel
20 Drain Stainless Steel Stainless Steel Stainless Steel Stainless Steel
21 Seat Spring Inconel X-750 Inconel X-750 Inconel X-750 Inconel X-750
22 Antistatic Spring Stainless Steel Stainless Steel Stainless Steel Stainless Steel
23 Grounding Plunger Stainless Steel Stainless Steel Stainless Steel Stainless Steel
24 *0-Ring NBR/Viton NBR/Viton NBR/Viton NBR/Viton
25 *0-Ring NBR/Viton NBR/Viton NBR/Viton NBR/Viton
26 *0-Ring NBR/Viton NBR/Viton NBR/Viton NBR/Viton
27 *0-Ring NBR/Viton NBR/Viton NBR/Viton NBR/Viton
28 Body Stud ASTM A193-B7 ASTM A193-B7 ASTM A193-B8 ASTM A320-L7M
29 Body Nut ASTM A194-2H ASTM A194-2H ASTM A194-8 ASTM A194-7M
30 Screw Carbon Steel Carbon Steel Stainless Steel ASTM A320-L7M
31 Screw Carbon Steel Carbon Steel Stainless Steel ASTM A320-L7M
32 Gland Pin Carbon Steel Carbon Steel Stainless Steel Carbon Steel
33 Body Pin Carbon Steel Carbon Steel Stainless Steel Carbon Steel
34 Key Carbon Steel Carbon Steel Stainless Steel Carbon Steel
35 Seat Injection Stainless Steel Stainless Steel Stainless Steel Stainless Steel
36 Stem Injection Stainless Steel Stainless Steel Stainless Steel Stainless Steel
37 Lifting Lugs Carbon Steel Carbon Steel Carbon Steel Carbon Steel

ANSI / ASME Pressure Class 150-Full Bore

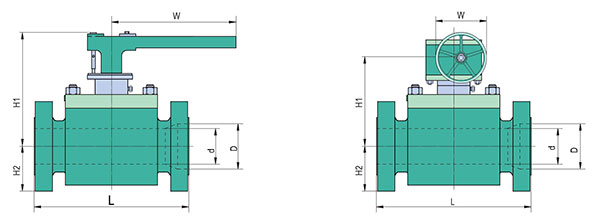

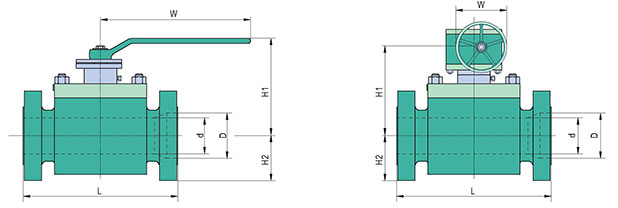

Dimensions and Weights

ANSI / ASME Pressure Class 150-Full Bore Dimensions and Weights
Size D L H1 H2 W Weight
in mm mm mm mm mm Kg
2 51 292 170 76 285 46
3 76 356 210 95 285 83
4 102 432 250 115 400 156
6 152 559 265 140 *400 256
8 203 660 355 172 *400 453
10 254 787 385 203 *600 622
12 305 838 400 242 *600 747
14 337 889 450 267 *600 959
16 387 991 510 299 *600 1220
18 438 1092 565 318 *600 1640
20 489 1194 620 349 *600 2118
24 591 1397 680 407 *700 2950

ANSI / ASME Pressure Class 150-Reduced Bore
Dimensions and Weights

ANSI / ASME Pressure Class 150-Reduced Bore Dimensions and Weights
Size d D L H1 H2 W Weight
in mm mm mm mm mm mm Kg
2*1-1/2 38 51 292 165 76 265 41
3*2 51 76 356 170 95 285 58
4*3 76 102 432 210 115 285 104
6*4 102 152 559 250 140 400 228
8*6 152 203 660 265 172 *400 320
10*8 203 254 787 355 203 *400 536
12*10 254 305 838 385 242 *600 685
14*12 305 337 889 400 267 *600 840
16*14 337 387 991 450 299 *600 1070
18*16 387 438 1092 510 318 *600 1430
20*18 438 489 1194 565 349 *600 1850
24*20 489 591 1397 620 407 *600 2450

ANSI / ASME Pressure Class 300-Full Bore
Dimensions and Weights

ANSI / ASME Pressure Class 150-Full Bore Dimensions and Weights
Size D L H1 H2 W Weight
in mm mm mm mm mm Kg
2 51 292 170 83 285 49
3 76 356 210 105 285 87
4 102 432 250 127 400 164
6 152 559 265 159 *400 272
8 203 660 355 191 *500 479
10 254 787 385 222 *600 657
12 305 838 400 261 *600 783
14 337 889 450 292 *600 1007
16 387 991 510 324 *600 1281
18 438 1092 565 356 *700 1722
20 489 1194 620 388 *700 2224
24 591 1397 680 457 *760 3100

ANSI / ASME Pressure Class 300-Reduced Bore
Dimensions and Weights

ANSI / ASME Pressure Class 300-Reduced Bore Dimensions and Weights
Size d D L H1 H2 W Weight
in mm mm mm mm mm mm Kg
2*1-1/2 38 51 292 165 83 265 44
3*2 51 76 356 170 105 285 62
4*3 76 102 432 210 127 285 110
6*4 102 152 559 250 159 400 243
8*6 152 203 660 265 191 *400 343
10*8 203 254 787 355 222 *400 559
12*10 254 305 838 385 261 *600 725
14*12 305 337 889 400 292 *600 890
16*14 337 387 991 450 324 *600 1120
18*16 387 438 1092 510 356 *600 1480
20*18 438 489 1194 565 388 *700 1960
24*20 489 591 1397 620 457 *700 2650

ANSI / ASME Pressure Class 600-Full Bore
Dimensions and Weights

ANSI / ASME Pressure Class 600-Full Bore Dimensions and Weights
Size D L H1 H2 W Weight
in mm mm mm mm mm Kg
2 51 292 180 83 285 52
3 76 356 220 105 760 92
4 102 432 260 137 1140 173
6 152 559 275 175 *500 285
8 203 660 370 210 *600 504
10 254 787 398 254 *600 680
12 305 838 410 280 *700 819

ANSI / ASME Pressure Class 600-Reduced Bore
Dimensions and Weights

ANSI / ASME Pressure Class 600-Reduced Bore Dimensions and Weights
Size d D L H1 H2 W Weight
in mm mm mm mm mm mm Kg
2*1-1/2 38 51 292 174 83 285 46
3*2 51 76 356 180 105 285 74
4*3 76 102 432 220 137 760 120
6*4 102 152 559 260 178 1140 249
8*6 152 203 660 275 210 *500 380
10*8 203 254 787 370 254 *600 587
12*10 254 305 838 398 280 *600 752

ANSI / ASME Pressure Class 900-Full Bore
Dimensions and Weights

ANSI / ASME Pressure Class 900-Full Bore <br />Dimensions and Weights
Size D L H1 H2 W Weight
in mm mm mm mm mm Kg
2 51 368 190 108 760 60
3 76 381 230 121 1140 100
4 102 457 270 146 *400 204
6 152 610 320 191 *500 420
8 203 737 375 235 *600 644
10 254 838 440 273 *700 943
12 305 965 498 305 *700 1295

ANSI / ASME Pressure Class 900-Reduced Bore
Dimensions and Weights

ANSI / ASME Pressure Class 900-Reduced Bore Dimensions and Weights
Size d D L H1 H2 W Weight
in mm mm mm mm mm mm Kg
2*1-1/2 38 51 368 182 108 760 54
3*2 51 76 381 190 121 760 80
4*3 76 102 457 230 146 1140 148
6*4 102 152 610 270 191 *400 305
8*6 152 203 737 320 235 *500 552
10*8 203 254 838 375 273 *600 748
12*10 254 305 965 440 305 *700 1048

ANSI / ASME Pressure Class 1500-Full Bore
Dimensions and Weights

ANSI / ASME Pressure Class 1500-Full Bore Dimensions and Weights
Size D L H1 H2 W Weight
in mm mm mm mm mm Kg
2 51 368 195 108 760 69
3 76 470 233 134 *400 133
4 102 546 276 156 *500 253
6 146 705 324 197 *600 667
8 194 832 397 242 *700 865
10 241 991 462 292 *700 1375
12 289 1130 493 337 *760 2175

ANSI / ASME Pressure Class 1500-Reduced Bore
Dimensions and Weights

ANSI / ASME Pressure Class 1500-Reduced Bore Dimensions and Weights
Size d D L H1 H2 W Weight
in mm mm mm mm mm mm Kg
2*1.5 38 51 368 189 108 760 63
3*2 51 76 470 195 134 760 95
4*3 76 102 546 233 156 *400 183
6*4 102 146 705 276 197 *500 359
8*6 146 194 832 324 242 *600 794
10*8 194 241 991 397 292 *700 1070
12*10 241 289 1130 462 337 *700 1541
