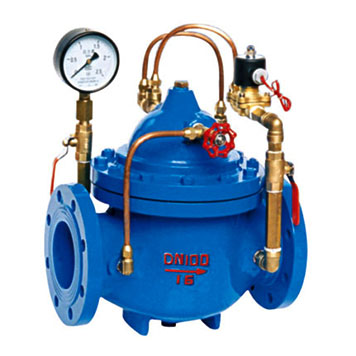

600X Solenoid Control Valve (ACV)

600X Solenoid Control Valve (ACV)

Overview

600X Solenoid Control Valve (ACV) is a kind of self-acting valve with electric-magnetic valve as pilot valve. It is used in automatic control of feeding system and industrial system and its control reaction is quick and precise. It opens or closes pipeline system according to the electric signal to reach remote control operation. It can be used in large-scale electric operation system instead of gate valve and butterfly valve. Its close speed is adjustable and it can close stably without any pressure fluctuation.
Electric-magnetic valve is of AC 220 V or DC 24V. It can be normally open or normally close according to the site condition.

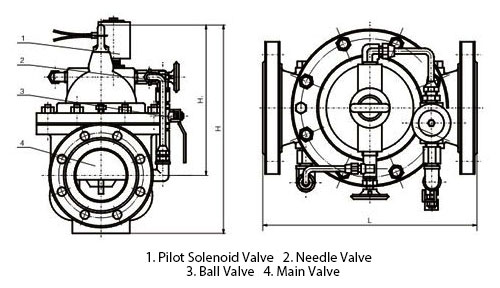

1. Small Ball Valve
2. Pilot Valve
3. Flow Controller
4. Needle Valve

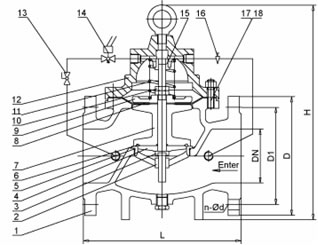

Materials

Materials: Solenoid Control Valves
Serial No. Part Material
1 Body Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT)
2 Seat 410 S.S. / SS 304 / SS 316
3 Stem 410 S.S. / SS 304 / SS 316
4 O-ring washer Cast Iron / WCB
5 O-ring NBR
6 O-ring NBR
7 Disc Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT)
8 Diaphragm Rubber
9 Diaphragm washer Cast Iron
10 Nut Bronze
11 Spring Spring Steel
12 Cover Cast Iron (GG25, HT200) / Ductile Iron (GG40, QT)
13 Ball valve Bronze
14 Solenoid valve Bronze
15 Pilot socket Bronze
16 Needle valve Bronze
17 Stud Steel
18 Nut Steel

Dimensions

Dimensions of 600X Solenoid Control Valve (ACV)
DNmm 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 450 500 600 700
L 180 180 180 203 203 235 280 360 400 455 585 650 800 860 915 980 1075 1230 1300
PN10 D 105 115 135 145 160 180 195 215 245 280 335 390 440 500 565 615 670 780 895
D1 75 85 100 110 125 145 160 180 210 240 295 350 400 460 515 565 620 725 840
PN16 D 105 115 135 145 160 180 195 215 245 280 335 405 460 520 580 640 705 840 910
D1 75 85 100 110 125 145 160 180 210 240 295 355 410 470 525 585 650 770 840
PN25 D 105 110 135 145 160 180 195 230 270 300 360 425 485 550 610 660 730 840 955
D1 75 85 100 110 125 145 160 190 220 250 310 370 430 490 550 600 660 770 875
H 342 342 342 395 395 405 430 510 560 585 675 730 760 840 910 1070 1135 1270 1460
H1 250 250 250 278 278 298 315 350 365 420 450 470 490 526 570 610 665 725 865

Note: Either elastic seat ring sealed gate valve or butterfly valve can be selected in the schematic of installation. Recommend to select the butterfly valve in case of DN350

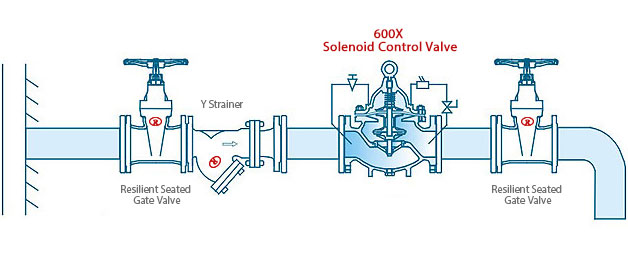

Installation

Installation of 600X Solenoid Control Valve (ACV)
