800X Differential Pressure Bypass Balance Valve

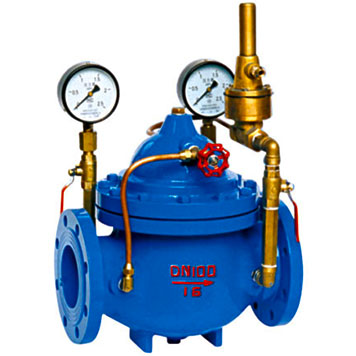

Photo of 800X Differential Pressure Bypass Balance Valve

Overview

800X Differential Pressure Bypass Balance Valve is used between water supply and water back of an air conditioning system in order to balance the pressure differential and to improve the systems utility, keep the pressure differential at an accurately constant value and to lower the systems noise and damage to the equipment due to an extra-big pressure differential to the utmost extent.

It is superior to the other balancing valves, needs no other execution machine, gets the system balanced completely depends on the pressure differential of the mediums own and saves energy and the installation space.

Dimensions

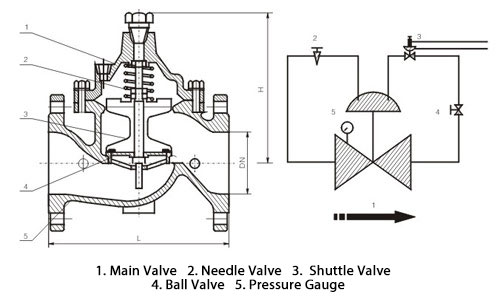

Dimensions of 800X Differential Pressure Bypass Balance Valve
DNmm 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400 450 500
L 180 180 180 203 203 235 285 360 400 455 585 650 800 860 915 980 1075
PN10 D 105 115 135 145 160 180 195 215 245 280 335 390 440 500 565 615 670
D1 75 85 100 110 125 145 160 180 210 240 295 350 400 460 515 565 620
PN16 D 105 115 135 145 160 180 195 215 245 280 335 405 460 520 580 640 705
D1 75 85 100 110 125 145 160 180 210 240 295 355 410 470 525 585 650
PN25 D 105 110 135 145 160 180 195 230 270 300 360 425 485 550 610 660 730
D1 75 85 100 110 125 145 160 190 220 250 310 370 430 490 550 600 660
H 550 560 575 590 610 625 642 750 808 864 1135 1185 1325 1385 1445 1545 1720
H1 125 130 135 145 160 180 200 270 310 320 370 430 180 525 580 635 705

Installation

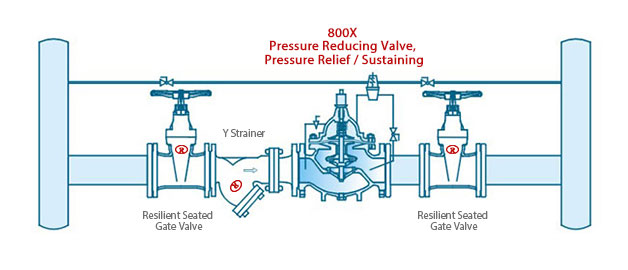

Installation of 800X Differential Pressure Bypass Balance Valve
