J145X Electronic Control Valve (ACV)

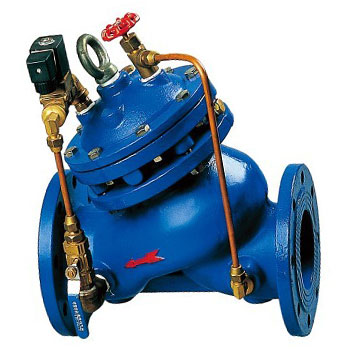

Photo of J145X Electronic Control Valve (ACV)

J145X Electronic Control Valve (ACV) is mounted on the pipeline of various supply systems, operated through an electric signal or manually to have the valves opened or closed.

a. Accurate and quick response to control.
b. An adjustable closing speed, the valve is closed stably without producing any pressure fluctuation.
c. About the solenoid valve: voltage: AC220V, DC24V, Options: explosion-proof N.O.N.C

Performance

Nominal Pressure
(MPa)		 Shell Test
(MPa)		 Sealing Test
(MPa)		 Fluids Fluids Temp
(°C)
1.0 1.5 1.1 Water 0-80
1.6 2.4 1.76
2.5 3.75 2.75

Materials

Name Materials
Body, Bonnet ASTM A536 Gr-65-45-12, GGG 40, GGG 50
Seat, Plug Brass
O-Ring NBR
Stem SS 420
Spring G61500
Needle Valve Brass
Ball Valve Brass
PRV / PSV Brass
Strainer Stainless Steel
Materials of J145X Electronic Control Valve (ACV)

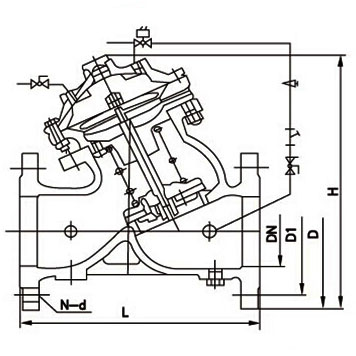

Dimensions

DN L D D1 n-d H
1.0MPa 1.6 MPa 2.5 MPa 1.0MPa 1.6 MPa 2.5 MPa 1.0MPa 1.6 MPa 2.5 MPa
50 205 165 165 165 125 125 125 4-18 4-18 4-18 320
65 216 185 185 185 145 145 145 4-18 4-18 8-18 367
80 250 200 200 200 160 160 160 8-18 8-18 8-18 400
100 320 220 220 235 180 180 190 8-18 8-18 8-22 452
125 365 250 250 270 210 210 220 8-18 8-18 8-22 522
150 415 285 285 300 240 240 250 8-22 8-22 8-26 592
200 500 340 340 360 295 295 310 8-22 12-22 12-26 696
250 605 395 405 425 350 355 370 12-22 12-26 12-26 810
300 698 445 460 485 400 410 430 12-22 12-26 12-30 943
350 787 505 520 555 460 470 490 16-22 16-26 16-30 1200
400 914 565 580 620 515 525 550 16-26 16-30 16-33 1230
450 978 615 640 670 565 585 600 20-26 20-30 16-36 1230
500 978 670 715 730 620 650 660 20-26 20-33 20-36 1270
600 1150 780 840 845 725 770 770 20-30 20-36 20-39 1600
700 1300 895 910 960 840 840 875 2430 24-36 24-42 1750
800 1450 1015 1025 1085 950 950 990 2433 24-39 24-48 1900

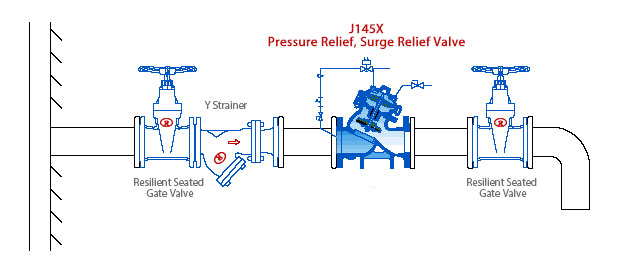

Installation

Installation of Electronic Control Valve (ACV)
