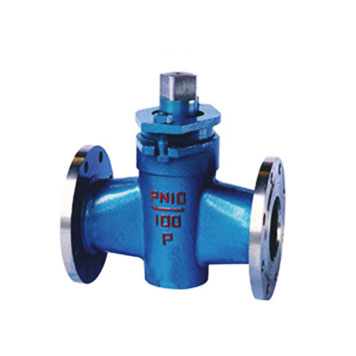

X43W Flanged Ends Plug Valve

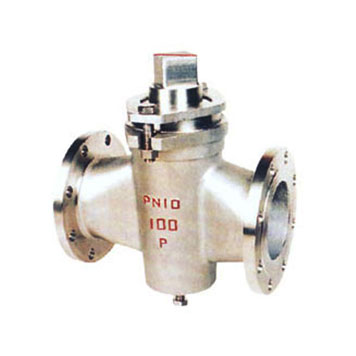

Stainless Steel X43W Flanged Ends Plug Valve
X43W Threaded Ends Plug Valve
X43W Copper Plug Flanged Ends Plug Valve

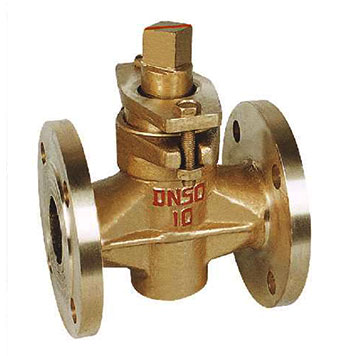

X43W Flanged Ends Brass Plug Valve

Materials

Name Body Plug Bonnet Packing
X43W-1.0 GGG-25 GGG-25 GGG-25 Asbestos Fibre, Graphite
X43T-1.0 GGG-25 Copper GGG-25
X43W-1.0T Copper Copper Copper
X43W-1.0P SS.304 SS.304 SS.304
X43W-1.0R SS.316 SS.316 SS.316

Performance

Type Nominal Pressure
PN
(MPa)		 Test Pressure
PS
(MPa)		 Fluids Working Temperature
( °C )
Body Seal
X43W-1.0 1.0 1.5 1.1 Oil, Gas ≤ 100
X43T-1.0 1.0 1.5 1.1 Water, Oil, Gas
X43W-1.0T 1.0 1.5 1.1 Water, Oil, Gas
X43W-1.0P 1.0 1.5 1.1 Nitric Acid & Acetic Acid ≤ 250°C
X43W-1.0R 1.0 1.5 1.1 Nitric Acid & Acetic Acid ≤ 250°C

Dimensions

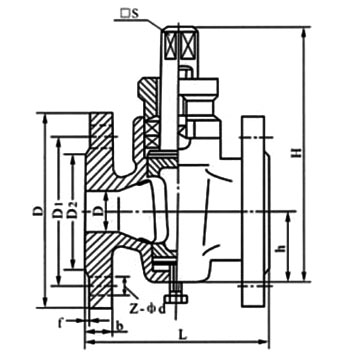

Dimensions of X43W Plug Valve
Dimensions DN (mm) Dimensions(mm)
L D D1 D2 f b Z-Φd □S h H
X43W-1.0C X43T-1.0P
X43W-1.0R X43W-1.0Ni 		15 80 95 65 45 2 14 4-Φ14 14 26 99
20 90 105 75 55 2 16 4-Φ14 14 34 124
25 110 115 85 65 2 16 4-Φ14 17 38 133
32 115 135 100 78 2 18 4-Φ18 19 45 152
40 150 145 110 85 3 18 4-Φ18 22 55 212
50 170 160 125 100 3 20 4-Φ18 27 74 260
65 220 180 145 120 3 20 4-Φ18 32 82 295
80 250 195 160 135 3 22 4-Φ18 36 95 327
100 300 215 180 155 3 26 8-Φ18 46 135 425
125 350 245 210 185 3 24 8-Φ18 50 154 482
150 400 280 240 210 3 24 8-Φ23 55 172 512
200 480 335 295 265 3 24 8-Φ23 75 195 605
250 530 390 350 320 3 28 12-Φ23 85 230 660
300 610 440 400 368 3 30 12-Φ23 100 263 760
