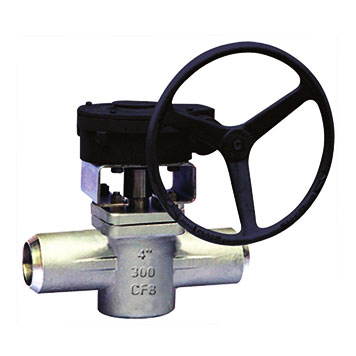

Weld Ends Plug Valve

API 599 Weld Ends Plug Valve

Specifications for API 599

Driving Handwheel, Worm Gear, Pneumatic, Electric Actuator
Design Standard API 599, API 6D
Face to Face ASME B16.10
Flange End ASME B16.5
Test & Inspection API 598, API 6D

Performances for API 599

PN (Lbs) Shell test (MPa) Sealing test (MPa) Suitable temperature Suitable medium
150 3.0 2.2 ≤ 180°C Water oil &gas
300 7.5 5.5
600 15.0 11.0
900 22.5 16.5

Materials for API 599

Materials of API 599 Weld Ends Plug Valve
NO Part name Material
1 Body ASTM A216-WCB ASTM A351-CF8, CF8M, CF3, CF3M
2 Sleeve PTFE
3 Plug ASTM A217-WC1, WC6, WC9, C5 ASTM A351-CF8, CF8M, CF3, CF3M
4 Gasket PTFE
5 Adjusting gasket ASTM A182-F304, F316, F321, F304L, F316, ASTM A182-Gr.F6a ASTM A182-F22
6 Cover ASTM A216-WCB, ASTM A351-CF8, CF8M, CF3, CF3M
7 Bolt ASTM A194-2H, A194-8, A194-8M
8 Nut ASTM A194-2H, A194-8, A194-8M
9 Adjusting Gland ASTM A216-WCB, ASTM A351-CF8, CF8M, CF3, CF3M
10 Nut ASTM A193-B7,A193-B8,A193-B8M
11 Wrench ASTM A216-WCB

Dimensions and Weights for API 599

Dimensions and Weights of Weld Ends Plug Valve
Pressure API 599 150 Lbs
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L-RF 108 117 127 140 165 178 190 203 229 245 267 292 330 356 381
L-BW 152 178 203 216 229 267 305 330 356 381 394 457 533 610 686
H 110 115 115 135 140 150 165 180 380 460 520 580 260 680 760
W 175 175 175 220 280 305 350 405 300 300 320 320 350 380 450
Weight(Kg) 8.5 9.5 10.0 12 14 22 22 26 40 60 70 130 219 381 570
Pressure API 599 300 Lbs
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L-RF 108 117 127 140 165 178 190 203 229 245 267 292 330 356 381
L-BW 152 178 203 216 229 267 305 330 356 381 394 457 533 610 686
H 110 115 115 135 140 150 165 180 380 460 520 580 260 680 760
W 175 175 175 220 280 305 350 405 300 300 320 320 350 380 450
Weight(Kg) 8.5 9.5 10.0 12 14 22 22 26 40 60 70 130 219 381 570
Pressure 600 Lbs
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L-RF, BW 165 190 216 229 214 292 330 356 432 508 559 660 787 838 889
H 110 115 115 135 140 150 165 180 380 460 520 580 260 680 760
W 175 175 175 220 280 305 350 405 300 300 320 320 350 380 450
Weight(Kg) 11 13 17 20 23 27 31 36 72 98 141 245 330 515 710
Pressure 900 Lbs
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L-RF, BW 229 229 254 279 305 368 419 381 457 559 610 737 838 965 1029
H 110 115 115 135 140 150 165 180 380 460 520 580 260 680 760
W 175 175 175 220 280 305 350 405 300 300 320 320 350 380 450
Weight(Kg) 13 16 21 24 28 32 40 47 91 117 165 285 420 610 860

Note: 4" or above with gear

Specifications for DIN Std

Driving Handwheel, Worm Gear, pneumatic, electric-actuated
Design Standard API 599, API 6D
Face to Face DIN 3002 F1
Flange End DIN 2543-2549
Test & Inspection DIN 3230

Performances for DIN Std

PN(MPa) Shell Test (MPa) Sealing Test (MPa) Suitable Temperature Suitable Medium
1.6 2.4 1.76 ≤ 180°C Water Oil & Gas
2.5 3.75 2.75
4.0 6.0 4.4

Materials for DIN Std

Materials of Non-Lubricated DIN 3002 F1 Weld Ends Plug Valve
NO Part name Material
1 Body GS-C25 1.7363 1.4308 1.4408 1.4306 1.4301
2 Sleeve PTFE
3 Plug 1.7363 1.4308 1.4408 1.4306 1.4301
4 Gasket PTFE
5 Adjusting Gasket ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304 F316F321,F304L,316L
6 Cover GS-C25 1.7363 1.4308 1.4408 1.4306 1.4301
7 Adjusting Bolt ASTM A193-B7 A320-B8 193-B8M
8 Nut ASTM A194-2H, A194-8, A194-8M
9 Bolt ASTM A193-B7,A193-B8,A193-B8M
10 Yoke WCB
11 Worm Q235 WCB

Dimensions and Weights for DIN Std

Dimensions and Weights of Non-Lubricated DIN 3002 F1 Weld Ends Plug Valve
Pressure PN 16
Size 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
L-RF.BW 130 150 160 180 200 230 290 310 350 400 480 600 730 850 980
H 150 155 160 180 190 200 220 230 380 460 520 580 620 680 740
W 300 300 300 350 400 500 500 550 300 300 320 320 350 380 380
Weight(Kg) 9 10 11 13 14 19 23 27 43 62 75 155 222 390 580
Pressure PN 25
Size 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
L-RF.BW 130 150 160 180 200 230 290 310 350 400 480 600 730 850 980
H 150 155 160 180 190 200 220 230 380 460 520 580 620 680 740
W 300 300 300 350 400 500 500 550 300 300 320 320 350 380 380
Weight(Kg) 10 11 13 15 17 22 31 55 77 88 190 190 235 399 630
Pressure PN 40
Size 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
L-RF.BW 130 150 160 180 200 230 290 310 350 400 480 600 730 850
H 190 195 225 260 280 310 340 395 435 470 535 590 630 680 720
W 120 140 140 180 200 220 260 280 300 340 400 450 450 500 500
Weight(Kg) 12 14 18 21 24 29 33 39 75 103 146 251 337 521 720
Pressure PN 60
Size 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
L-RF.BW 130 150 160 180 200 230 290 310 350 400 480 600 730 850
H 190 195 225 260 280 310 340 395 435 470 535 590 630 680 720
W 120 140 140 180 200 220 260 280 300 340 400 450 450 500 500
Weight(kg) 14 17 22 25 29 34 43 50 94 123 170 291 430 625 875

Note: DN 100 mm or above with gear
