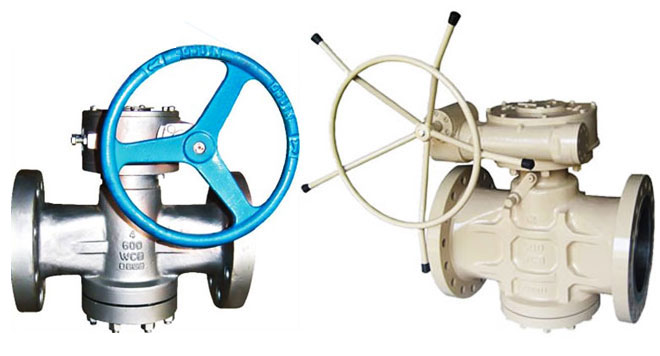

Pressure Balanced Plug Valve

Pressure Balanced Plug Valve

Pressure balance lubricated plug valve is applicable to the cutting and connection of pipelines medium that are used in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, electric power industry etc under nominal pressure of Class 150 - 900 Lbs and working temperature of -29 - 180°C.

1. It has logical structure, reliable seal, excellent performance and nice design.

2. It has the structure of flip-chip balance-able pressure and tight on/off operation.

3. An oil groove is set between valve body and seal surface, which may infuse the seal grease to increase the seal capability.

4. The part material and flange dimension may be selected according to current operating condition and user’s requirement, so that meet the requirements of various engineering.

Specifications

Materials of Pressure Balanced Plug Valve
Operation Manual
Electric Actuator
Design Standard API 599, API 6D
Face to Face ASME B16.10
Flange Ends ASME B16.5
Test & Inspection API598 API 60
Nominal Pressure Shell Test Sealing Test Suitable Temp. Fluids
150 3.0 2.2 ≤300°C Water Oil & Gas
300 7.5 5.5
600 15.0 11.0
900 22.5 16.5

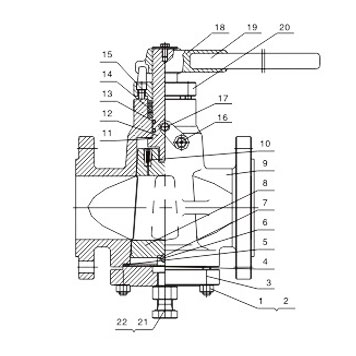

Materials

No. Part name Material
1 Bolt ASTM A193-B7, A320-B8, A193-B8M
2 Nut ASTM A194-2H, A194-8, A194-8M
3 Cover ASTMA216-WCB.A217-WC1, WC6, WC9, C5, C351-CF8, CF8M, CF3, CF3M
4 Metal Diaphragm ASTM SS304 , 304L, 316, 316L
5 Wind Gasket Flexible Graphite + Stainless Steel
6 Set for Ball ASTMA276 410,A276 304 , 304L, 316, 316L
7 Ball ASTM SS304, 304L, 316, 316L
8 Plug ASTMA217CA15,A182F6a.A351 CF8, CF8M, CF3, CF3M
9 Body ASTM A216-WCB. A217-WC1, WC6, WC9, C5, C351-CF8, CF8M, CF3, CF3M
10 Check Valve UCA
11 Gasket PTFE
12 Stem ASTM A182 F6a, A182 F304, F316, F304L, F316L
13 Ring Viton
14 Bolt ASTM A193-B7. A320-B8, A193-B8M
15 Packing Flexible Graphite
16 Grease Nozzle UCA
17 Nozzle UCA
18 Hand hole ASTM A216-WC6
19 Pipe ASTM A570
20 Gland ASTM A216-WCB. A217-WC1, WC6, WC9, C5, A351-CF8
21 Lock Nut ASTM A194-2H. A194-8. A194-8M
22 Adjusting Bolt ASTM A193-B7. A320-B8. A193-B8M

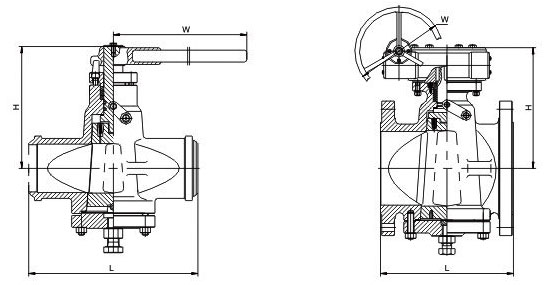

Dimensions and Weights

Dimensions and Weights of Pressure Balanced Plug Valve
Pressure 150 Lbs
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L-RF 108 117 127 140 165 178 190 203 229 245 267 292 330 356 381
L-BW 152 178 203 216 229 267 305 330 356 381 394 457 533 610 686
H 180 180 185 200 210 215 250 270 300 340 365 400 450 510 590
W 400 400 500 500 600 600 820 820 300 300 320 320 350 380 380
Weight (Kg) 10 12 14 17 19 21 29 33 48 75 98 125 171 230 370
Pressure 300 Lbs
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L-RF 140 152 165 178 190 216 241 283 305 381 403 419 457 502 762
L-BW 152 178 203 216 229 267 305 330 356 381 457 521 550 635 762
H 180 180 185 200 210 215 250 270 300 340 365 400 450 510 590
W 400 400 500 600 600 820 1000 1000 300 300 320 320 350 380 380
Weight (Kg) 12 14 16 19 21 24 31 36 61 86 130 190 255 380 560
Pressure 600 Lbs
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L-RF.BW 165 190 216 229 214 292 330 356 432 508 559 660 787 838 889
H 180 180 185 200 210 215 250 270 300 340 365 400 450 510 590
W 400 400 500 500 600 820 1000 1000 300 300 320 320 350 380 380
Weight (Kg) 14 16 18 20 24 29 35 47 91 129 210 320 660 920 1250
Pressure 900 Lbs
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L-RF.BW 229 229 254 279 305 368 419 381 457 559 610 737 838 965 1029
H 180 180 185 200 210 215 250 270 300 340 365 400 450 510 590
W 400 400 500 500 600 820 1000 1000 300 300 320 320 350 380 380
Weight (Kg) 17 29 21 24 30 37 44 65 110 160 255 .380 810 1050 1460

Note: 4" or Above with Gear
