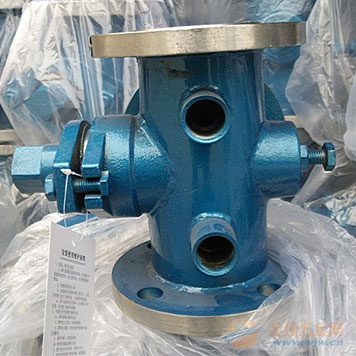

BX44W Jacket Plug Valve

BX44W Threaded Ends Plug Valve

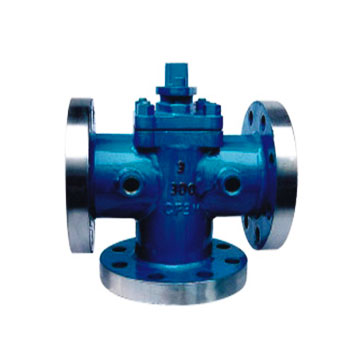

X43W Flanged Ends Plug Valve

Materials

Model Body, Plug Packing
BX44W-1.0P BX44W-1.0R SS. 304, SS. 316 Graphite
BX44W-1.0C WCB

Performance

型号 Nominal Pressure
PN
(MPa)		 Test Pressure
PS
(MPa)		 Working Temperature
( °C ) 		Fluids Working Temperature
( °C )
Body Seal
BX44W-1.0P 1.0 1.5 1.1 1.0 Nitric Acid &
Acetic Acid		 ≤250
BX44W-1.0C 1.0 1.5 1.1 1.0 Non-corrosion,
Micro-corrosion		 ≤200

Dimensions

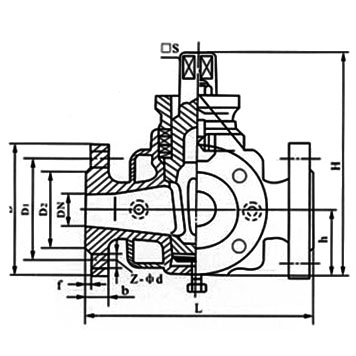

BX44W Plug Valve
Dimensions of BX44W Threaded Plug Valve
DN L D D1 D2 Z-Φd
20 150 105 75 55 4 × 14
25 160 115 85 65 4 × 14
32 190 135 100 78 4 × 18
40 200 145 110 85 4 × 18
50 220 160 125 100 4 × 18
65 280 180 145 120 4 × 18
80 300 195 160 135 4 × 18
100 340 215 180 155 8 × 18
125 350 245 210 185 8 × 18
150 400 280 240 210 8 × 23
200 480 335 295 265 8 × 23
250 530 390 350 320 12 × 23
300 610 440 400 368 12 × 23
