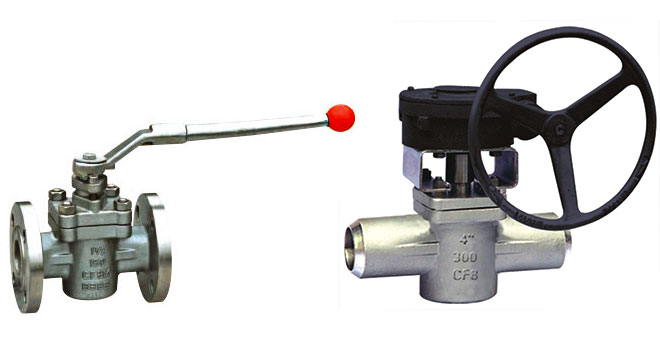

Non-Lubricated API 599 Sleeved Plug Valve

Non-Lubricated API 599 Sleeved Plug Valve

Overview

Non-Lubricated API 599 Sleeved Plug Valve is applicable to the cutting and connection of pipeline's medium that aroused in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, power industry etc.

It is under nominal pressure of Class 150-900 Lbs, and works at the temperature of -29 ~ 180°C.

a. The product has reasonable structure, reliable sealing, excellent performance and beautiful appearance.

b. Its sealing is realized by the sealing face around the sleeve. It has unique 360 degree metal edge for protection and fixing of the sleeve.

c. There is no cavity in the valve for the accumulation of medium.

d. Metal edge provides the function of self-cleaning when the plug is rotated. It is applicable to the operation condition that is glutinous sand apt to smudge.

e. Its double-direction flow makes installation and use more convenient.

f. The materials of the parts and sizes of flanges can be configured reasonably according to the actual operation condition the customer required, so as to meet the various needs of engineering.

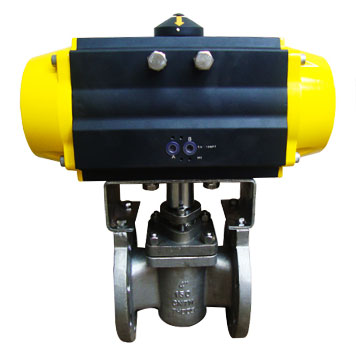

Non-Lubricated API 599 Sleeved Plug Valve with Pneumatic Actuator

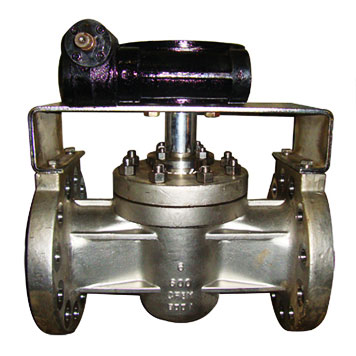

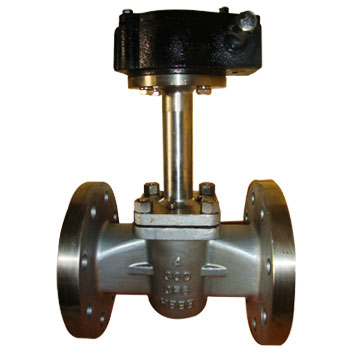

Cryogenic Non-Lubricated API 599 Sleeved Plug Valve

Specifications

Driving Handwheel, Worm Gear, Pneumatic, Electric Actuator
Design Standard API 599, API 6D
Face to Face ASME B16.10
Flange End ASME B16.5
Test & Inspection API 598, API 6D

Performances

PN (Lbs) Shell test (MPa) Sealing test (MPa) Suitable temperature Suitable medium
150 3.0 2.2 ≤ 180°C Water oil &gas
300 7.5 5.5
600 15.0 11.0
900 22.5 16.5

Materials

API 599 Non-Lubricated Plug Valve
Materials of API 599 Sleeved Plug Valve
NO Part name Material
1 Body ASTM A216-WCB ASTM A351-CF8, CF8M, CF3, CF3M
2 Sleeve PTFE
3 Plug ASTM A217-WC1, WC6, WC9, C5 ASTM A351-CF8, CF8M, CF3, CF3M
4 Gasket PTFE
5 Adjusting gasket ASTM A182-F304, F316, F321, F304L, F316, ASTM A182-Gr.F6a ASTM A182-F22
6 Cover ASTM A216-WCB, ASTM A351-CF8, CF8M, CF3, CF3M
7 Bolt ASTM A194-2H, A194-8, A194-8M
8 Nut ASTM A194-2H, A194-8, A194-8M
9 Adjusting Gland ASTM A216-WCB, ASTM A351-CF8, CF8M, CF3, CF3M
10 Nut ASTM A193-B7,A193-B8,A193-B8M
11 Wrench ASTM A216-WCB

Dimensions and Weights

Dimensions and Weights of API 599 Sleeved Plug Valve
Pressure 150 Lbs
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L-RF 108 117 127 140 165 178 190 203 229 245 267 292 330 356 381
L-BW 152 178 203 216 229 267 305 330 356 381 394 457 533 610 686
H 110 115 115 135 140 150 165 180 380 460 520 580 260 680 760
W 175 175 175 220 280 305 350 405 300 300 320 320 350 380 450
Weight(Kg) 8.5 9.5 10.0 12 14 22 22 26 40 60 70 130 219 381 570
Pressure 300 Lbs
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L-RF 108 117 127 140 165 178 190 203 229 245 267 292 330 356 381
L-BW 152 178 203 216 229 267 305 330 356 381 394 457 533 610 686
H 110 115 115 135 140 150 165 180 380 460 520 580 260 680 760
W 175 175 175 220 280 305 350 405 300 300 320 320 350 380 450
Weight(Kg) 8.5 9.5 10.0 12 14 22 22 26 40 60 70 130 219 381 570
Pressure 600 Lbs
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L-RF, BW 165 190 216 229 214 292 330 356 432 508 559 660 787 838 889
H 110 115 115 135 140 150 165 180 380 460 520 580 260 680 760
W 175 175 175 220 280 305 350 405 300 300 320 320 350 380 450
Weight(Kg) 11 13 17 20 23 27 31 36 72 98 141 245 330 515 710
Pressure 900 Lbs
Size mm 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350
in 1/2 3/4 1 11/4 11/2 2 21/2 3 4 5 6 8 10 12 14
L-RF, BW 229 229 254 279 305 368 419 381 457 559 610 737 838 965 1029
H 110 115 115 135 140 150 165 180 380 460 520 580 260 680 760
W 175 175 175 220 280 305 350 405 300 300 320 320 350 380 450
Weight(Kg) 13 16 21 24 28 32 40 47 91 117 165 285 420 610 860

Note: 4" or above with gear

Non-Lubricated API 599 Sleeved Plug Valve with Gear
Non-Lubricated API 599 Sleeved Plug Valve with Gear
