Diesel Engine Fire Pump

5L/S Series 10L/S Series 15L/S Series 20L/S Series 25L/S Series 30L/S Series
35L/S Series40/45 L/S Series 50/55 L/S Series 60/65 L/S Series 70/80 L/S Series

According to the market need of national building's fire pump and using features, XBC Diesel Engine Fire Pump is a new product self-researched and manufactured by our Company. This series of products have high efficiency, long working lifespan and good reliability (no trouble like dying when starting after long-time stopping to use) which are the best choice adapting to building fire-used and spraying-used pump. The function of products complies with GB6245 The Function Requirement and Test Methods of Fire Pump and passes the test of The Quality Supervising and Testing Center of National Fire Equipment so that the products are now playing a leading role in China and at the same time, obtain the permit from Shanghai Fire Bureau. The products are used to convey pure water with no solid particle under 80 and liquid with physical and chemical character similar to water. On the prerequisite of satisfying fire industry and mining, the products can both conform to the requirements of industry and mining in life and factory water-supplying, that is to say, the products can be applied in water-supplying system of fire-preventing and the one in shared water-supplying system of fire-preventing and life and in building, municipal construction ,industry and mining, water-supplying and draining, shipping and field operation as well.
The whole set of XBC Diesel Engine Fire Pump and electric appliances can self-finish the starting procedure and quickly put into full-load operation with its comprehensive function, high automatic level, tight structure, problem-alarming and starting signal-accepting. The whole machine has been develop with vibration reducing machine, rubber connecting point, wave tube voice eliminating machine at exhaust. Under the circumstance of less fuel, low voltage in storage battery, high temperature of lubricating oil and speed-exceeding , the alarm apparatus and pre-heating apparatus of the entire system will make sure to start the Diesel Engine under low temperature, which is totally safe, reliable and convenient to use.

III Xbd/C Type Motor/Engine Fire-Fighting Units Capability

Motor pump is main fire pump, it will auto start on fire time
Jockey pump maintain the system pressure
Diesel pump is back up pump, it will auto start without electricity
Diesel pump will auto start when Motor pump was breakdown

IV

Basic figure for flexible joint drill swelling screw orifice Drawing
Basic figure for flexible joint
Drill swelling screw orifice Drawing
Basic figure for frigid joint preserced screw orifice Drawing
Basic figure for frigid joint
Preserced screw orifice Drawing
Type Basic figure for flexible joint dimensions Basic figure for frigid joint dimmensions
K1 B1 K2 B2 K B D Fd K1d B1d K2d B2d Kd Bd
XBC1.9/5-50 750 216 1110 366 1160 416 130 8.5 750 216 1110 300 1160 350
XBC2.9/5-50 850 240 1210 390 1260 440 130 8.5 850 240 1210 390 1260 440
XBC3.8/5-50 908 240 1268 390 1318 440 130 8.5 908 240 1268 390 1318 440
XBC4.8/5-50 939 385 1299 535 1349 585 130 8.5 939 385 1299 535 1349 585
XBC5.8/5-50 997 385 1357 535 1407 585 130 8.5 997 385 1357 535 1407 585
XBC6.8/5-50 1055 385 1415 535 1465 585 130 8.5 1055 385 1415 535 1465 585
XBC7.8/5-50 1390 445 1750 535 1800 645 130 8.5 1390 445 1750 535 1800 605
XBC2.9/10-65 781 385 1141 535 1191 585 130 8.5 781 385 1141 535 1191 685
XBC4.0/10-65 1130 445 1490 595 1540 645 130 8.5 1130 445 1490 535 1540 605
XBC5.0/10-65 1208 445 1568 595 1618 645 130 8.5 1208 445 1568 535 1618 605
XBC6.1/10-65 1286 445 1646 595 1696 645 130 8.5 1285 445 1646 535 1696 605
XBC2.0/15-80 660 445 1070 635 1120 685 170 12.5 660 445 1070 535 1120 585
XBC4.0/15-80 1025 445 1435 695 1485 745 170 12.5 1025 445 1435 555 1485 605
XBC6.0/15-80 1120 445 1530 695 1580 745 170 12.5 1120 445 1530 555 1580
XBC8.0/15-80 1215 445 1625 695 1675 745 170 12.5 1215 445 1625 555 1675
XBC3.7/20-80 1025 445 1435 695 1485 745 170 12.5 1025 445 1435 555 1485
XBC5.7/20-80 1120 445 1530 695 1580 745 170 12.5 1120 445 1530 555 1580
XBC7.6/20-80 1068 445 1478 695 1528 745 170 12.5 1068 445 1478 555 1528
XBC3.1/25-80 930 445 1340 695 1390 745 170 12.5 930 445 1340 555 1390
XBC4.7/25-80 1025 445 1435 695 1485 745 170 12.5 1025 445 1435 555 1485
XBC6.4/25-80 1315 445 1725 695 1775 745 170 12.5 1315 445 1725 555 1775
XBC3.7/30-80 1025 445 1435 695 1485 745 170 12.5 1025 445 1435 555 1485
XBC4.9/30-80 1315 445 1725 695 1775 745 170 12.5 1315 445 1725 555 1775
XBC5.7/30-100 1075 445 1725 695 1775 745 170 12.5 1075 445 1725 555 1775 605
XBC9.3/30-100 1270 694 1920 1034 1970 1084 260 12.5 1270 445 1920 555 1970 900
XBC12.8/30-100 1400 694 2050 1034 2100 1084 260 12.5 1400 445 2050 555 2100 900
XBC5.4/35-100 1075 445 1725 785 1775 835 260 12.5 1075 694 1725 555 1775 605
XBC7.1/35-100 1930 445 2580 785 2630 835 260 12.5 1930 694 2580 555 2630 605
XBC8.0/35-100 1270 694 1920 1034 1970 1084 260 12.5 1270 445 1920 850 1970 900
XBC9.0/35-100 1270 694 2050 1034 1970 1084 260 12.5 1270 694 1920 850 1970 900
XBC10.8/35-100 1400 694 2050 1034 2100 1084 260 12.5 1400 694 2050 555 2100 900
XBC12.5/35-100 1400 694 2050 1034 2100 1084 260 12.5 1400 694 2050 555 2100 900
XBC5.3/40-100 1105 445 1755 785 1805 835 260 12.5 1105 445 1755 850 1805 605
XBC8.8/40-100 1270 694 1920 1034 1970 1084 260 12.5 1270 694 1920 850 1970 900
XBC12.0/40-100 1400 694 2050 1034 2100 1084 260 12.5 1400 694 2050 850 2100 900
XBC5.2/45-100 1105 445 1755 785 1805 835 260 12.5 1105 445 1755 555 1805 605
XBC8.5/45-100 1270 694 1920 1034 1970 1084 260 12.5 1270 694 1920 850 1970 900
XBC11.8/45-100 1820 694 2470 1034 2520 1084 260 12.5 1820 694 2470 850 2520 900
XBC3.9/50-100 1075 445 1725 785 1775 835 260 12.5 1075 445 1725 555 1775 605
XBC6.1/50-100 1270 694 1920 1034 1970 1084 260 12.5 1270 694 1920 850 1970 900
XBC8.6/50-100 1400 694 2050 1034 2100 1084 260 12.5 1400 694 2050 850 2100 900
XBC11.0/50-100 1820 694 2470 1034 2520 1084 260 12.5 1820 694 2470 850 2520 900
XBC4.7/55-100 1800 445 2450 785 2500 835 260 12.5 1800 445 2450 555 2500 605
XBC7.6/55-100 1270 694 1920 1034 1970 1084 260 12.5 1270 694 1920 850 1970 900
XBC10.5/55-100 1820 694 2470 1034 2520 1084 260 12.5 1820 694 2470 850 2520 900
XBC5.1/60-125 1820 445 2470 785 2520 835 260 12.5 1820 445 2470 555 2520 605
XBC7.4/60-125 1404 694 2054 1034 2104 1084 260 12.5 1404 694 2054 850 2104 900
XBC9.0/60-125 1404 694 2054 1034 2104 1084 260 12.5 1404 694 2054 850 2104 900
XBC5.4/65125 1274 694 1924 1034 1974 1084 260 12.5 1274 694 1924 850 1974 900
XBC8.8/65-125 1744 694 2394 1034 2444 1084 260 12.5 1744 694 2394 850 2444 900
XBC3.4/70-125 1165 445 1815 785 1865 835 260 12.5 1165 445 1815 555 1865 605
XBC5.8/70-125 1404 694 2054 1034 2104 1084 260 12.5 1404 694 2054 850 2104 900
XBC8.6/70-125 1744 694 2394 1034 2444 1084 260 12.5 1744 694 2394 850 2444 900
XBC4.5/80-125 1274 694 1924 1034 1974 1084 260 12.5 1274 694 1924 850 1974 900
XBC7.6/80-125 1744 694 2394 1034 1244 1084 260 12.5 1744 694 2394 850 2444 900

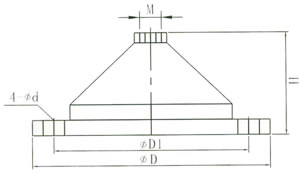

V Xbc Type Diesed Engine Fire Pump Base Mounting Dimensions

XBC TYPE DIESED ENGINE FIRE PUMP BASE MOUNTING DIMENSIONS Drawing
XBC TYPE DIESED ENGINE FIRE PUMP BASE MOUNTING DIMENSIONS Drawing
TYPE M D D1 H d
JGD2 12 150 130 65 7
JGD3 16 200 170 87 11
JGD4 20 290 260 133 11
