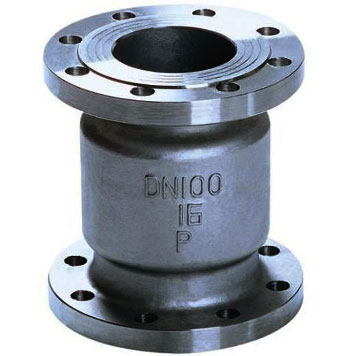

Vertical lift check valve has the following two characteristics:
1. Vertical check valve has flange and wafer types, with a simple structure, few parts, light weight and other features. Flange vertical check valve is mainly used in various working conditions of preventing the media backflow.
2. When the flange vertical check valve used as vertical installation, it will not set the spring. Using the disc weight and backflow pressure to achieve the check effect.
Specifications
Type |
Nominal Pressure
PN (MPa) |
Test Pressure (MPa) |
Temperature (°C) |
Fliuds |
Shell |
Sealing |
H42W-16C |
1.6 |
2.4 |
1.76 |
≤425 |
Water, Oil |
H42W-16P |
≤200 |
Weak Corrosive Acid |
H42W-25P |
2.5 |
3.75 |
2.75 |
H42W-25R |
Corrosive Acid |
H42W-40P |
4.0 |
6.0 |
4.4 |
Weak Corrosive Acid |
H42W-40R |
Corrosive Acid |
H42Y-40 |
Water, Oil |
Materials
Part Name |
Body, Disc |
Pilot Valve |
Sealing Face |
H42W-16C |
Carbon steel |
Carbon Steel |
Carbon Steel |
H42W-16P |
Cr-Ni-Ti Stainless Steel |
Cr-Ni-Ti Stainless Steel |
Cr-Ni-Ti Stainless Steel |
H42W-25P |
H42W-40P |
H42W-25R |
Cr-Ni-Mo-Ti Stainless Steel |
Cr-Ni-Mo-Ti Stainless Steel |
Cr-Ni-Mo-Ti Stainless Steel |
H42W-40R |
H42Y-40 |
Carbon Steel |
Carbon Steel |
Bead Welding Hard Alloy |

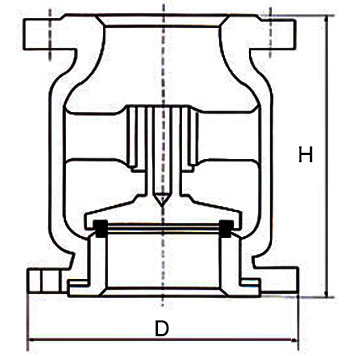

Dimensions & Weights - 1.6 MPa
Sizes |
DN |
15 |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
H |
mm |
105 |
105 |
105 |
150 |
160 |
170 |
180 |
200 |
210 |
275 |
300 |
380 |
D |
mm |
95 |
105 |
115 |
135 |
145 |
160 |
180 |
195 |
215 |
245 |
280 |
335 |
Weights |
Kg |
- |
- |
- |
- |
- |
7.9 |
11 |
12 |
19.5 |
36 |
47 |
65 |
Dimensions & Weights - 2.5 MPa
Sizes |
DN |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
H |
mm |
105 |
105 |
150 |
160 |
170 |
180 |
200 |
210 |
275 |
300 |
380 |
D |
mm |
105 |
115 |
135 |
145 |
160 |
180 |
195 |
230 |
275 |
300 |
360 |
Weights |
Kg |
- |
- |
- |
- |
7.9 |
11 |
12 |
20 |
38 |
48 |
70 |
Dimensions & Weights - 4.0 MPa
Sizes |
DN |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
H |
mm |
170 |
180 |
200 |
210 |
275 |
300 |
380 |
D |
mm |
160 |
180 |
195 |
230 |
270 |
300 |
375 |
Weights |
Kg |
7.9 |
11 |
12 |
20 |
38 |
48 |
72 |
