Product Introductions

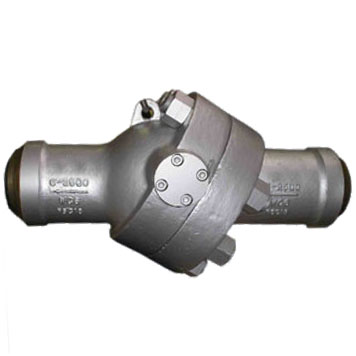

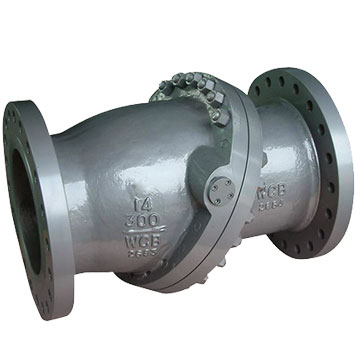

Tilting Disc Check Valve is a new valve that designed and developed by the combination of many years of our company's valves production technology and aboard advanced product. Its main advantage is to overcome the impact and water hammer phenomenon caused by the swing check valve, lift the back valve in the operating conditions, to achieve no impact operation.
Specifications
• product design according to: ASME B16.34
• Face to Face: ASME B16.10
• Flange Dimension: ASME B16.5
• Inspection and Test: API 598
• Pressure Class: 150 -600 Lb (PN 2.0 - 10.0 MPa)
• Double eccentric disc, the seat will gradually contact with the sealing surface when closed, to achieve no impact, no noise working.
• Micro-flexible metal seat, with good sealing performance.
• Butterfly disc design, with open and close quickly and sensitively, long service life
• Swashplate structure allows the streamlined type of fluid pipes, with small flow resistanc, energy-saving effect
Materials
Code |
Body |
Disc |
Sealing Seat |
P |
CF8 |
CF8+STL |
0Cr19Ni9 |
PTFE |
R |
CF8M |
CF8M+STL |
0Cr17Ni12Mo2 |
K |
CF3 |
CF3+STL |
00Cr19Ni11 |
J |
CF3M |
CF3M+STL |
00Cr17Ni14Mo2 |
E |
CN7M |
CN7M+STL |
No.20 alloy |
C |
WCB |
WCB+13Cr |
0Cr19Ni9 |
D |
LCB |
CF8+STL |
0Cr19Ni9 |

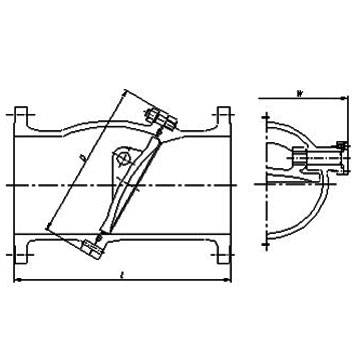

Dimensions & Weights of Class 150
Nominal Diameter |
NPS |
2 |
2 |
3 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
24 |
26 |
28 |
30 |
32 |
DN |
50 |
65 |
80 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
650 |
700 |
750 |
800 |
L |
203 |
216 |
241 |
292 |
356 |
495 |
622 |
698 |
787 |
864 |
978 |
978 |
1295 |
1295 |
1143 |
1143 |
1194 |
D |
160 |
182 |
196 |
230 |
300 |
390 |
432 |
510 |
540 |
635 |
700 |
770 |
900 |
930 |
991 |
1020 |
1150 |
W |
178 |
198 |
224 |
252 |
326 |
426 |
456 |
530 |
576 |
670 |
740 |
818 |
948 |
988 |
1050 |
1090 |
1240 |
Weight (Kg) |
11 |
16 |
22 |
34 |
62 |
112 |
169 |
238 |
337 |
420 |
550 |
685 |
910 |
1055 |
1260 |
1540 |
1860 |
Dimensions & Weights of Class 300
Nominal Diameter |
NPS |
2 |
2 |
3 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
24 |
26 |
28 |
30 |
32 |
DN |
50 |
65 |
80 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
650 |
700 |
750 |
800 |
L |
267 |
292 |
318 |
356 |
444 |
533 |
622 |
711 |
838 |
864 |
978 |
1016 |
1346 |
1346 |
1295 |
1372 |
1448 |
D |
170 |
196 |
214 |
245 |
320 |
400 |
460 |
540 |
580 |
660 |
725 |
800 |
940 |
970 |
1040 |
1080 |
1210 |
W |
198 |
220 |
232 |
268 |
360 |
426 |
457 |
572 |
620 |
690 |
760 |
848 |
988 |
1018 |
1250 |
1280 |
1350 |
Weight (Kg) |
17 |
22 |
32 |
97 |
110 |
162 |
228 |
380 |
443 |
530 |
780 |
980 |
1320 |
1364 |
1762 |
2050 |
2870 |
Dimensions & Weights of Class 600
Nominal Diameter |
NPS |
2 |
2 |
3 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
24 |
DN |
50 |
65 |
80 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
L |
292 |
330 |
356 |
432 |
559 |
660 |
787 |
838 |
889 |
991 |
1092 |
1194 |
1397 |
D |
185 |
196 |
210 |
270 |
340 |
440 |
520 |
570 |
610 |
690 |
755 |
850 |
990 |
W |
212 |
225 |
240 |
298 |
405 |
460 |
492 |
602 |
650 |
710 |
780 |
902 |
1040 |
Weight (Kg) |
27 |
44 |
47 |
115 |
190 |
320 |
430 |
586 |
750 |
1015 |
1480 |
2050 |
2550 |
