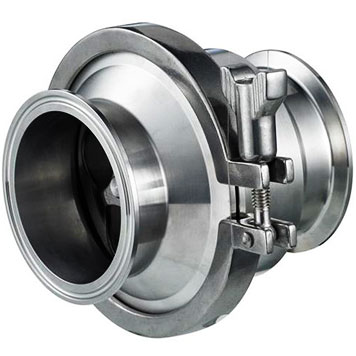

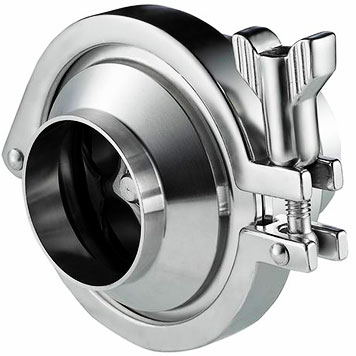

Stainless Steel Sanitary Check Valve
Materials： SS 304 / 316 / 304L / 316L
Pipe Flow Control： DN 25 - 150 mm and 1"-6" are Applied to Stainless Steel Pipe Systems
Connections: Threaded, Welded, Clamped, Flanged.

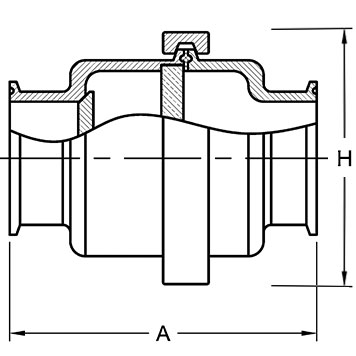

Dimensions
| DN | A | H | ISO | A | H |
| 25 | 62.5 | 82 | 25 | 62.5 | 82 |
| 32 | 75 | 95.5 | 38 | 75 | 95.5 |
| 40 | 75 | 95.5 | 51 | 87.5 | 109 |
| 50 | 87.5 | 109 | 63.5 | 95 | 137 |
| 65 | 95 | 137 | 76.1 | 115 | 148 |
| 80 | 115 | 148 | 101.6 | 155 | 164 |
| 100 | 155 | 164 |
