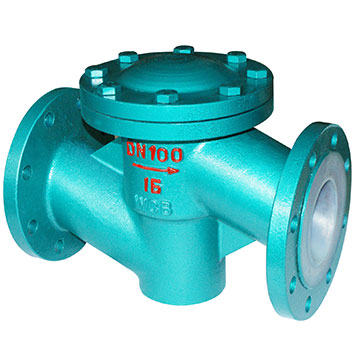

H41J/FS Rubber / PTFE / FEP / PFA Lined Check Valve

H41J/FS Rubber / PTFE / FEP / PFA Lined Check Valve

Specification

Design specification Face to face dimension Connecting Flange Test and Spection Product marks Supply Specification
GB/T 12236 GB/T 12221 GB/T 4216 GB/T 13927 GB/T 12220 GB/T 7928

Materials

No. Part name Grey Cast Iron Cast Steel Stainless Acid Resistant Cast Steel Ultra-low Carbon Stainless Acid Resistant Cast Steel
Z C P R PL RL
1 Body GG 25 WCB CF8 CF8M CF3 CF3M
2 Bonnet GG 25 WCB CF8 CF8M CF3 CF3M
3 Lined Natural / Synthetic / Hard Rubber or PTFE / FEP / PFA
4 Disc Carbon Steel Fully Covered with Fluoroplastics, Rubber

Dimensions and Weights

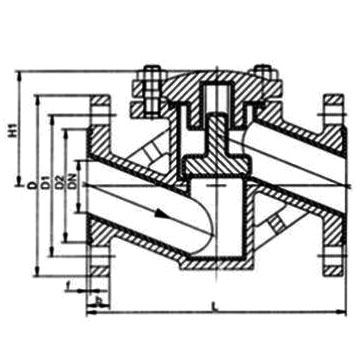

Dimensions and Weights of H41J/FS Rubber / PTFE / FEP / PFA Lined Check Valve
Type Nominal Diameter
DN (mm)		 Dimensions (mm)
L D D1 D2 Z-фd b H
H41J/FS-16T 15 130 95 65 45 4-ф14 14 77
20 150 105 75 55 4-ф14 14 77
25 160 115 85 65 4-ф14 16 80
32 180 135 100 78 4-ф18 16 85
40 200 145 110 85 4-ф18 16 95
50 230 160 125 100 4-ф18 16 105
65 290 180 145 120 4-ф18 18 120
80 310 195 160 135 8-ф18 20 130
100 350 215 180 155 8-ф18 20 140
125 400 245 210 185 8-ф18 22 155
150 480 280 240 210 8-ф23 24 180
200 600 335 295 265 12-ф23 26 215
H41J/FS-25T 15 130 95 65 45 4-ф14 16 77
20 150 105 75 55 4-ф14 16 77
25 160 115 85 65 4-ф14 16 80
32 180 135 100 78 4-ф18 18 85
40 200 145 110 85 4-ф18 18 95
50 230 160 125 100 4-ф18 20 105
65 290 180 145 120 8-ф18 22 120
80 310 195 160 135 8-ф18 22 130
100 350 230 190 160 8-ф23 24 140
125 400 270 220 188 8-ф25 28 155
150 480 300 250 218 8-ф25 30 180
200 600 360 310 278 12-ф30 34 215
