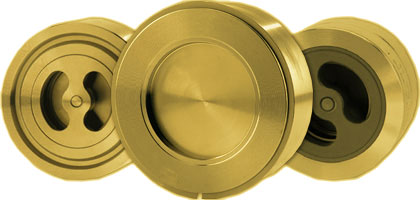

H72X Brass Compact Wafer Silent Check Valve

H72X Brass Compact Wafer Silent Check Valve

Specification

Nominal Pressue: 1.6 MPa
Working Fluids: Water
Working Temperature: 0 °C ≤ t ≤ 100 °C

Materials

No. Name Materials
ANSI / JIS / DIN
1 Body Brass
2 Disc Brass
3 Bonnet Brass
4 Seat Brass
5 Pin SUS 304

Dimensions

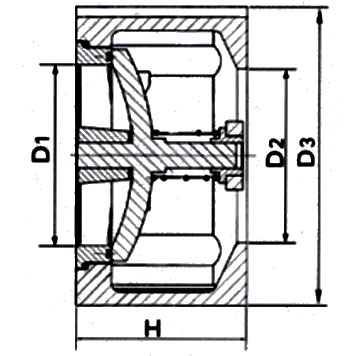

Wafer brass muffler check valve constructral diagram
DN 50 65 80 100 125 150 200
H 68 80 80 100 125 142.5 170
D1 60 75 85 106 130 150 207
D2 64 77 95 102 140 160 215
D3 120 140 155 175 205 234 289

Note: Sealing Material: Rubber
