Wafer Ball Valves

ANSI / ASME Pressure 150 / 300 Lbs-Wafer-Flange
PTFE RTPFE PEEK PPL Seated

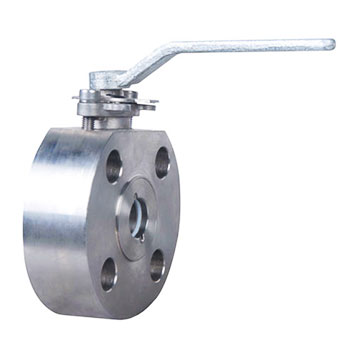

Pic of ANSI / ASME Pressure 150 / 300 Lbs-Wafer-Flange-PTFE RTPFE PEEK PPL Seated
  • Design and manufacture: API 6D
  • Flange connection: ANSI B 16.5
  • Structural length: ANSI B 16.10
  • Test and inspection: API 598
  • Pressure and Temperature: ANSI B 16.34

Materials and Sizes

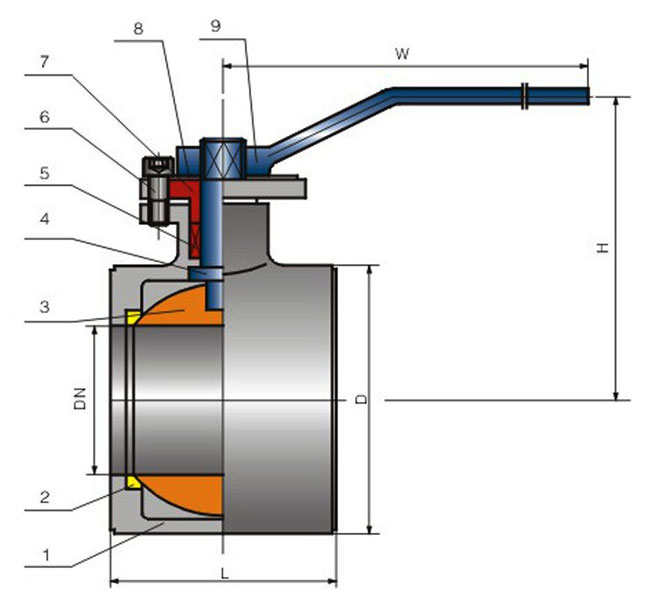

Materials of ANSI / ASME Pressure 150 / 300 Lbs-Wafer-Flange-PTFE RTPFE PEEK PPL Seated
No. Parts Name Material
Stainless Steel Cast Steel
1 Body CF8 WCB
2 Seat PTFE/PPL PTFE/PPL
3 Ball 304 304
4 Stem 304 2Cr13
5 Packing PTFE Graphite
6 Gland CF8 WCB
7 Handle WCB WCB
NPS
(in)		 DN
(mm)		 Dimension (mm)
L D L0
(Manual
operated)		 H WT(Kg)
Manual Pneumatic Electric Manual Pneumatic Electric
1/2 15 40 53 140 80 225 320 0.9 4.2 7.8
3/4 20 45 63 180 80 228 320 1.3 4.5 8.1
1 25 50 73 180 100 233 340 1.6 5.8 8.6
11/4 32 60 84 200 110 259 350 2.6 8.9 9.5
11/2 40 70 94 200 120 267 360 3.8 10.2 11
2 50 80 109 250 130 278 370 5 11.5 12
21/2 65 110 129 300 140 363 380 7.5 26.5 14.5
3 80 120 144 350 150 383 450 11 30 45

ANSI / ASME Pressure 150 Lbs
Wafer-PTFE RTPFE PEEK PPL Seated

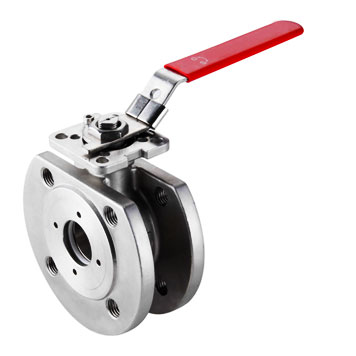

Pic of ANSI / ASME Pressure 150 Lbs-Wafer-PTFE RTPFE PEEK PPL Seated with ISO Mount Pad

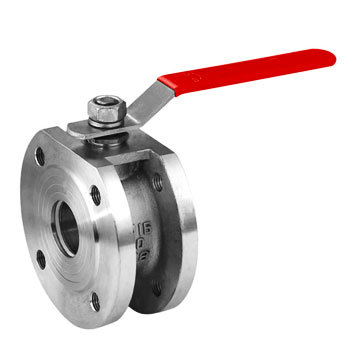

Pic of ANSI / ASME Pressure 150 Lbs-Wafer-PTFE RTPFE PEEK PPL Seated with ISO Mount Pad
FEATURES:
Anti-Static Devices For Ball-Stem-Body
Blow-out Proof Stem
Pressure Balance Hole In Ball Slot
Built In ISO 5211 Direct Mounting Pad For Easy Automation
STANDARDS:
Design: ASME B16.34
Wall Thickness: ASME B16.34
Fire Safe: API 607 ISO 10497
End Flange: ASME B16.5
Inspection & Testing: API 598

Sizes

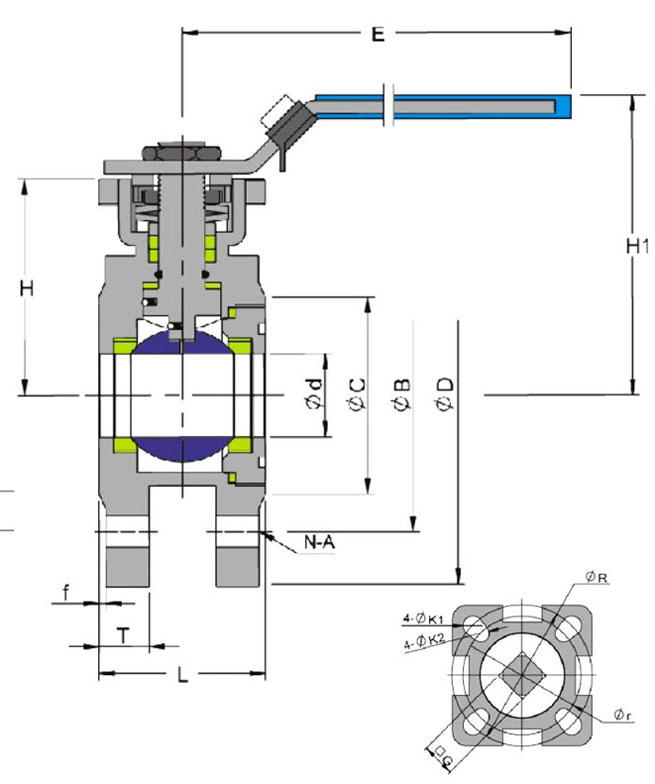

Sizes of ANSI / ASME Pressure 150 Lbs-Wafer-PTFE RTPFE PEEK PPL Seated
Size LBS Φd L ΦC ΦB ΦD H H1 E f T □ G ΦR Φr ΦK1 ΦK2 N A ISO-5211
1/2" 150 15 42 34.5 60.3 90 48.5 76 110 2 11.2 9 42 36 6 6 4 1/2 F03-F04
3/4" 150 20 44 42.9 69.9 100 53.5 81 110 2 11.2 9 42 36 6 6 4 1/2 F03-F04
1" 150 25 50 50.8 79.4 110 59 90 160 2 12 11 50 42 7 6 4 1/2 F04-F05
1-1/4" 150 30 60 63.5 88.9 115 71 102 160 2 12.7 11 50 42 7 6 4 1/2 F04-F05
1-1/2" 150 36 65 73 98.4 125 78 115 185 2 14.3 14 70 50 9 7 4 1/2 F05-F07
2" 150 46 80 92.1 120.7 150 85 122 185 2 15.9 14 70 50 9 7 4 5/8 F05-F07
2-1/2" 150 57 110 104.8 139.7 180 100 168 305 2 17.5 17 102 70 11 9 4 5/8 F07-F10
3" 150 73 120 127 152.4 190 110 178 305 2 19.1 17 102 70 11 9 4 5/8 F07-F10
4" 150 90 150 157.2 140.5 230 130 198 305 2 23.9 19 102 70 11 9 8 5/8 F07-F10

DIN Pressure 1.6-4.0 MPa
Wafer-PTFE RTPFE PEEK PPL Seated

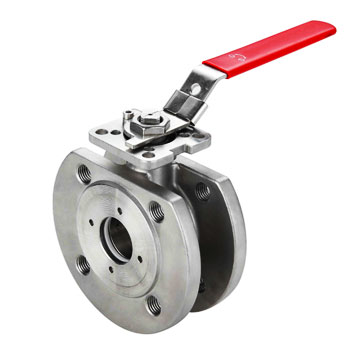

Pic of DIN Pressure 1.6-4.0-Wafer-PTFE RTPFE PEEK PPL Seated with ISO Mount Pad

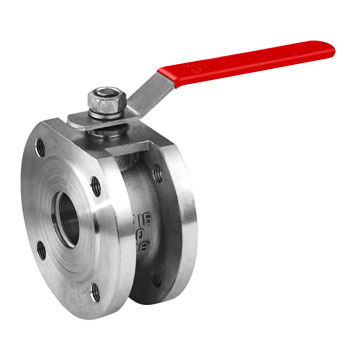

Pic of DIN Pressure 1.6-4.0-Wafer-PTFE RTPFE PEEK PPL Seated with ISO Mount Pad
FEATURES:
Anti-Static Devices For Ball-Stem-Body
Blow-out Proof Stem
Pressure Balance Hole in Ball Slot
Built in ISO 5211 Direct Mounting Pad for Easy Automation
STANDARDS:
Design: DIN 3357 EN 12516-1
Wall Thickness: ASME B16.34 EN 12516-1
Fire Safe: API 607 ISO 10497
End Flange: DIN EN 1092-1
Inspection & Testing: DIN 3230 EN 12266
No. Part Material
1 Body A216-WCB A352-LCB A351-CF8, CF8M, CF3, CF3M, Duplex
2 Screwed Cover A216-WCB A352-LCB A351-CF8, CF8M, CF3, CF3M, Duplex
3 Seat PTFE RTPFE PEEK PPL
4 Ball A351-CF8, CF8M, CF3, CF3M, Duplex
5 Thrust Washer PTFE
6 Gasket PTFE Graphite
7 Packing PTFE Graphite
8 Stem ASTM A105+ENP A182-F6, F316, F316L, F304L,17-4PH, F51
9 Gland Flange A216-WCB A351-CF8
10 Lever A216-WCB
11 Limited Plate 1015+Cr. Carbon Steel+Cr.
12 Screw ASTM A193-B7, B8

Sizes

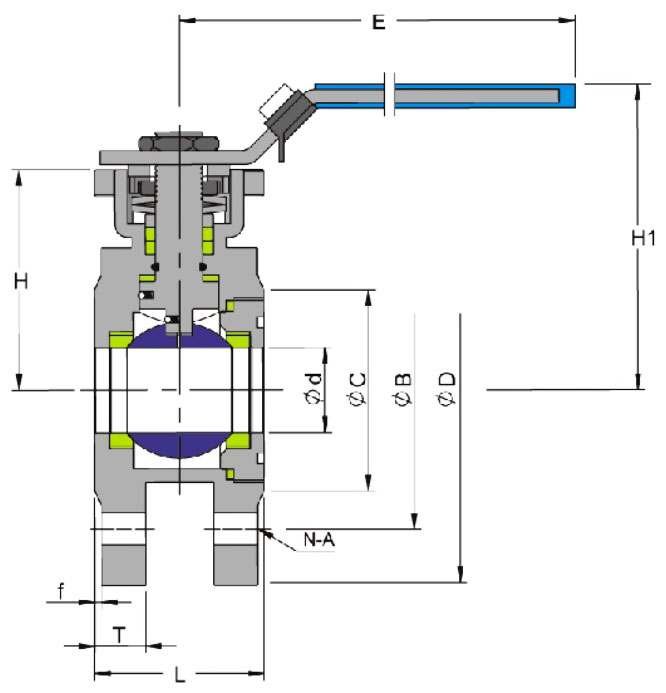

Sizes of DIN Pressure 1.6-4.0 MPa-Wafer-PTFE RTPFE PEEK PPL Seated
Size PN Φd L ΦC ΦB ΦD H H1 E f T □ G ΦR Φr ΦK1 ΦK2 N A ISO-5211
DN15 10-40 15 42 45 65 95 48.5 76 110 2 14 9 42 36 6 6 4 Ml 2 F03-F04
DN20 10-40 20 44 58 75 105 53.5 81 110 2 16 9 42 36 6 6 4 M12 F03-F04
DN25 10-40 25 50 68 85 115 59 90 160 2 16 11 50 42 7 6 4 Ml 2 F04-F05
DN32 10-40 30 60 78 100 140 71 102 160 2 16 11 50 42 7 6 4 Ml 6 F04-F05
DN40 10-40 36 65 88 110 150 78 115 185 3 16 14 70 50 9 7 4 Ml 6 F05-F07
DN50 10-40 46 80 102 125 165 85 122 185 3 18 14 70 50 9 7 4 Ml 6 F05-F07
DN65 10/16 57 110 122 145 185 100 168 305 3 18 17 102 70 11 9 4 Ml 6 F07-F10
DN80 10/16 73 120 138 160 200 110 178 305 3 20 17 102 70 11 9 8 Ml 6 F07-F10
DN100 10/16 90 150 158 180 220 130 198 305 3 20 19 102 70 11 9 8 Ml 6 F07-F10
