3 Way Ball Valves

1000 Psi / WOG MPa-3 Way-Threaded Ends
L Port-T Port-PTFE RTPFE PEEK PPL Seated

Materials and Sizes of 1000 Psi / WOG MPa-3 Way-L Port-T Port-PTFE RTPFE PEEK PPL Seated
FEATURES:
Anti-Static Devices For Ball-Stem-Body
Blow-out Proof Stem
Pressure Balance Hole In Ball Slot
Built In ISO 5211 Direct Mounting Pad For Easy Automation
STANDARDS:
Design ASME B16.34
Wall Thickness: ASME B16.34
Ppe Thread: ASME B1.20.1,BS21
DIN 2999/259, ISO 228/1 JIS B 0203, ISO 7/1
Butt Weld: ASME B 16.25
Socket Weld: ASME B16.11
Inspection & Testing: MSS SP-110, EN 1226

Materials and Sizes

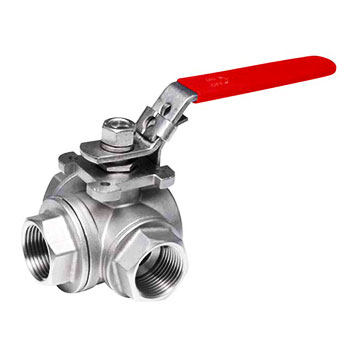

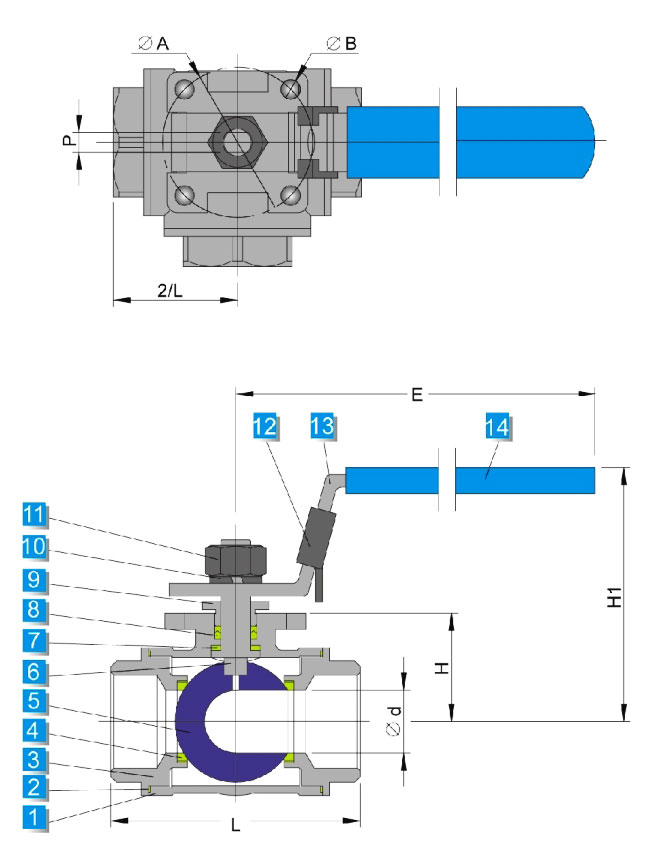

Pic of 1000 Psi / WOG MPa-3 Way-L Port-T Port-PTFE RTPFE PEEK PPL Seated
No. PARTS NAME MATERIAL
1 Body CF8M CF8 WCB
2 Cap CF8M CF8 WCB
3 Ball CF8M CF8
4 Seat PTFE RPTFE PPL
5 Stem SUS316 SUS304
6 Nut A193-B8
7 Spring Washer SUS304
8 Thrust Washer PTFE
9 O-Ring VITON FKM
10 Stem Packing PTFE
11 Stop Nut SUS304
12 Position Pin SUS304
13 Spring Washer SUS304
14 Stem Nut A193-B8
15 Locking Device SUS304
16 Pin Plastic
17 Handle SUS304
18 Handle Cover Plastic
19 Bolt SUS304
Size Φd L LB H H1 E L1 S B1 B2 P C2 D1
1/2" 15.0 70 70 64 30.5 110 10 21 16 22 9 M5 36
3/4" 20.0 75 85 67.5 34 110 14 27 21 28 9 M5 36
1" 25.0 88 100 78 40 150 14 34 27 34 11 M5 42
1-1/4" 32.0 105 105 82.5 44.5 150 16 43 35 43 11 M5 42
1-1/2" 38.0 115 118 97.5 53 175 16 49 41 50 14 M6 50
2" 50.0 135 145 105.5 61 175 17 61 53 61 14 M6 50
2-1/2" 64.0 165 180 133 80.5 250 17 74 63 76 17 M8 70
3" 78.0 185 213 145.5 93 250 17 90 78 90 17 M8 70
4" 100 228 228 168.5 110 280 20 115.4 100 110 17 M8 70

1000 Psi / WOG MPa-3 Way-Threaded Ends
L Port-T Port-PTFE RTPFE PEEK PPL Seated with ISO Direct Mount Pad

Materials and Sizes of 1000 Psi / WOG MPa-3 Way-L Port-T Port-PTFE RTPFE PEEK PPL Seated with ISO Direct Mount Pad
FEATURES:
L Port
T Port
Reduced Port
Various Thread Standards Available
Built In ISO 5211 Bracket Mount For Easy Automation
STANDARDS:
Design ASME B16.34
Wall Thickness: ASME B16.34
Pipe Thread: ASME B1.20.1.BS21
DIN 2999/259,ISO 228/1 JB B 0203,ISO 7/1
Inspection & Testing: MSSSP-110,EN 12266

Materials and Sizes

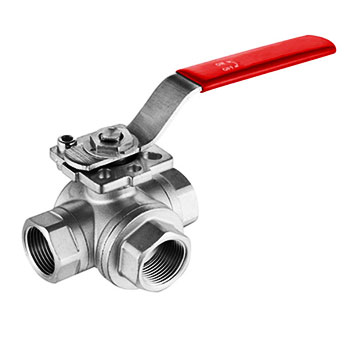

Pic of 1000 Psi / WOG MPa-3 Way-L Port-T Port-PTFE RTPFE PEEK PPL Seated with ISO Direct Mount Pad
No. PARTS NAME MATERIAL
1 Body CF8M CF8 WCB
2 Cap CF8M CF8 WCB
3 Seat PTFE RPTFE
4 Ball CF8M CF8
5 Cap Gasket PTFE
6 Thrust Washer PTFE
7 O-Ring VITON(FKM)
8 V-Ring Packing PTFE
9 Gland SUS304
10 Belleville Washer SUS301
11 Stop Nut A194-B8
12 Stop Washer SUS304
13 Washer SUS304
14 Stem Nut SUS304
15 Stem SUS304 SUS316
16 Handle SUS304
17 Locking Device SUS301
18 Handle Cover Plastic
19 Anti-Static Device SUS301
DN L Φd H H1 E B □ P ΦR Φr ΦA1 ΦA2 ISO 5211
1/4" 65 8 36 62.5 120 34 9 42 36 6 6 F03-F04
3/8" 65 8 36 62.5 120 34 9 42 36 6 6 F03-F04
1/2" 68 12 36 62.5 120 34 9 42 36 6 6 F03-F04
3/4" 75 15 39 66 120 37.5 9 42 36 6 6 F03-F04
1" 85 18 46.5 77 160 42.5 11 50 42 7 6 F04-F05
1-1/4" 110 25 55 86 160 55 11 50 42 7 6 F04-F05
1-1/2" 125 32 64.5 101.5 190 62.5 14 70 50 9 7 F05-F07
2" 145 38 70.5 107.5 190 72.5 14 70 50 9 7 F05-F07

ANSI / ASME Pressure Class 150 / 300 Lb
Three Way-Flanged Ends-PTFE RTPFE PEEK PPL Seated

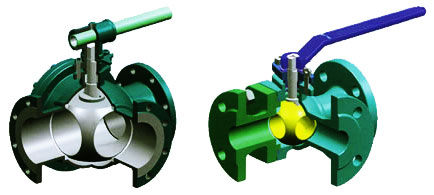

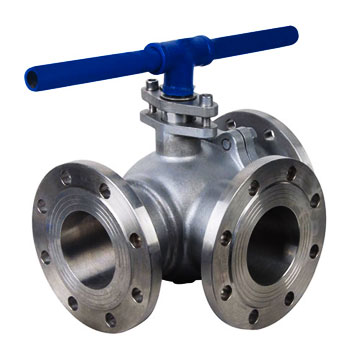

Pic of ANSI / ASME Pressure Class 150 / 300 Lb-Three Way-Flanged Ends-PTFE RTPFE PEEK PPL Seated
  • Size: 1/2"~8"
  • Class: 150 / 300 Lb
  • Two-Piece Cast Body
  • Floating Ball, Full Bore
  • Anti-Static Device
  • Blow-out Proof Stem
  • Fire Safe Design
  • Emergency Sealant Injector
Pic of L Port and T Port

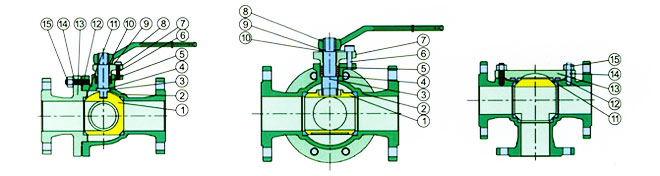

Materials

Materials of ANSI / ASME Pressure Class 150 / 300 Lb-Three Way-Flanged Ends-PTFE RTPFE PEEK PPL Seated
No. Part Material
1 Ball A351-CF8, CF8M, CF3, CF3M, Duplex
2 Body A216-WCB A352-LCB A351-CF8, CF8M, CF3, CF3M, Duplex
3 Stem ASTM A105+ENP A182-F6, F316, F316L, F304L,17-4PH, F51
4 Thrust Washer PTFE
5 Packing PTFE Graphite
6 Screw ASTM A193-B7, B8
7 Gland Flange A216-WCB A351-CF8
8 Lever A216-WCB
9 Limited Plate 1015+Cr. Carbon Steel+Cr.
10 Retainer Carbon Steel
11 Seat PTFE RTPFE PEEK PPL
12 Gasket Stainless Steel+Graphite S.S.316+Graphite
13 Bonnet A216-WCB A352-LCB A351-CF8, CF8M, CF3, CF3M, Duplex
14 Stud ASTM A193-B7, B7M, B8, B8M
15 Nut ASTM A194-2H, 2HM, 8, 8M

ASME Pressure Class 150 / 300 Lb-Three Way-PTFE RTPFE PEEK PPL Seated

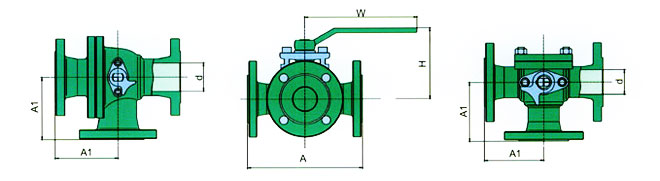

Flanged Ends-Full Bore-Dimensions and Weights

Dimensions and Weights of ANSI / ASME Pressure Class 150 / 300 Lb-Three Way-Flanged Ends-PTFE RTPFE PEEK PPL Seated
Size d A A1 H W
in mm mm mm mm mm
1/2 13 150 75 90 140
3/4 19 150 75 90 140
1 25 180 90 102 155
1-1/4 38 200 100 115 250
1-1/2 48 220 110 135 250
2 50 240 120 140 350
2-1/2 65 260 130 155 350
3 78 280 140 185 420
4 100 320 160 210 700
5 125 380 190 270 1000
6 148 440 220 305 1300
8 198 550 275 335 1800

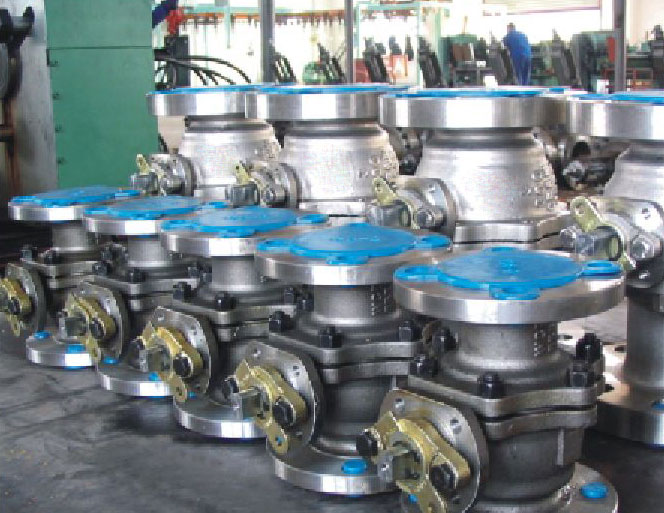

Stock of 2PC Floating Ball Valve

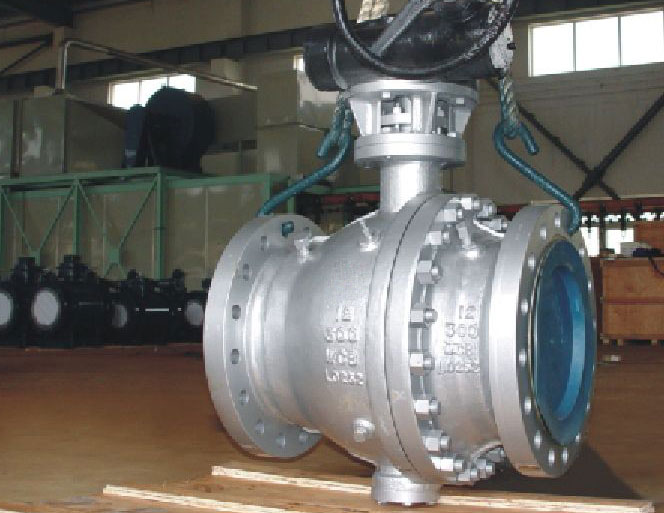

Stock of 3PC Trunnion Mounted Ball Valve

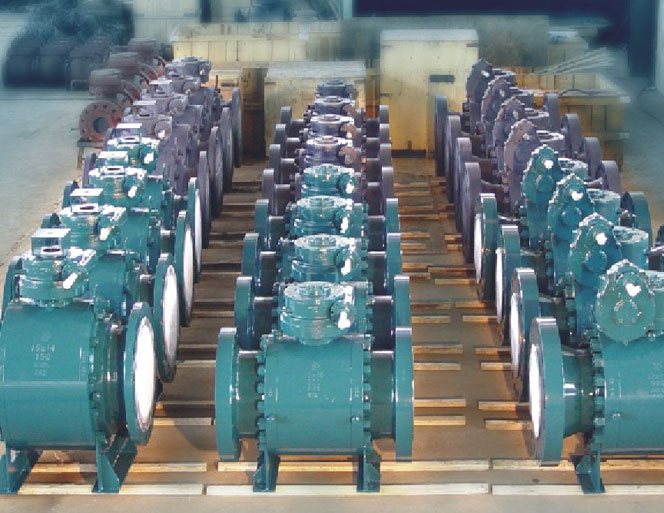

Stock of 2PC Trunnion Mounted Ball Valve
