Three Piece (3 PC) Forged Ball Valves

ANSI / ASME Pressure Class 800 / 1500 / 2500 Lbs-Forged Steel A105
Three Picece-3 PC-Threaded, Socket Welded & Butt Welded Ends

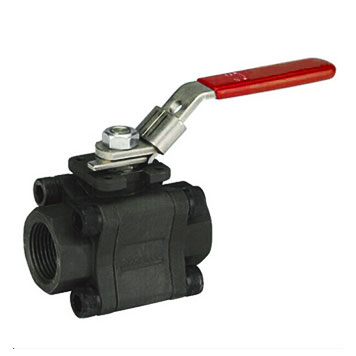

Pic of ANSI / ASME Pressure Class 800 / 1500 / 2500 Lbs-Forged Steel A105-Three Picece-3 PC-Threaded, Socket Welded & Butt Welded Ends
  • Size: 1/2"~2" (DN 15 - 50 mm)
  • Class: 800 / 1500 / 2500
  • Three Pieces Forged Steel Body
  • Floating Ball, Full Bore
  • Anti-Static Device
  • Screwed and Socket Welded Ends
  • Blow-out Proof Stem
  • Design: ASME B16.34 / BS 5351
  • Face to Face: Manufacturer Standard
  • End to End: Manufacturer Standard
  • Threaded End: ASME B1.20.1
  • Socket Welding & BW End: ASME B16.11
  • Test: API 598 / BS 6755
  • Fire Safe Test: API 597 / API 6FA

Materials

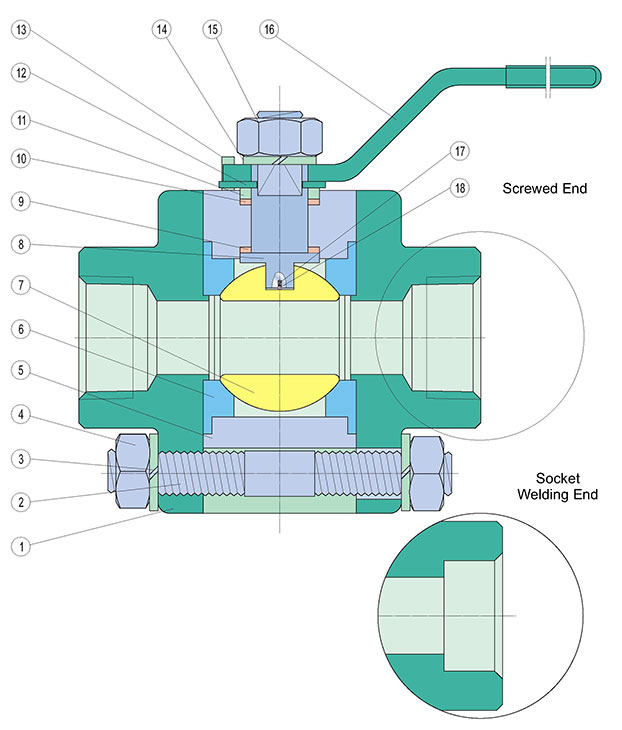

Materials of ANSI / ASME Pressure Class 800 / 1500 / 2500 Lbs-Forged Steel A105-Three Picece-3 PC-Threaded, Socket Welded & Butt Welded Ends
No. Part A105/304 A105/316
1 Adapter ASTM A105 ASTM A105
2 Body Bolt ASTM A193-B7 ASTM A193-B7M
3 Spring Washer Carbon Steel Carbon Steel
4 Body Nut ASTM A194-2H ASTM A194-2HM
5 Body ASTM A105 ASTM A105
6 Seat PTFE PTFE
7 Ball ASTM A182-F304 ASTM A182-316
8 Stem ASTM A276-304 ASTM A276-316
9 Thrust Washer PTFE PTFE
10 ‘Stem Packing PTFE PTFE
11 Gland ASTM A276-410 ASTM A276-410
12 Stop Plate Carbon Steel Carbon Steel
13 Stop Pin Carbon Steel Carbon Steel
14 Spring Washer Carbon Steel Carbon Steel
15 Lever Nut ASTM A194-2H ASTM A194-2H
16 Lever Carbon Steel Carbon Steel
17 Antistatic Spring Stainless Steel Stainless Steel
18 Steel ball Stainless Steel Stainless Steel

Sizes and Weights

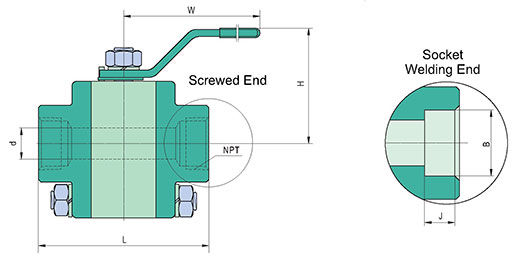

Sizes and Weights of ANSI / ASME Pressure Class 800 / 1500 / 2500 Lbs-Forged Steel A105-Three Picece-3 PC-Threaded, Socket Welded & Butt Welded Ends
Size d L H W B J NPT Weight
in mm mm mm mm mm mm in Kg
1/2 14 92 65 130 21.8 9.6 1/2" 1.7
3/4 18 111 75 160 27.2 12.7 3/4" 2.5
1 24 127 80 220 33.9 12.7 1" 4.5
1-1/4 30 140 100 250 42.7 12.7 1-1/4" 7
1-1/2 38 152 110 250 48.8 12.7 1-1/2" 8.8
2 48 152 125 290 61.2 15.7 2" 10

ANSI / ASME Pressure Class 800 / 1500 / 2500 Lbs-Forged Stainless Steel
Three Picece-3 PC-SS. F316-Threaded, Socket Welded & Butt Welded Ends

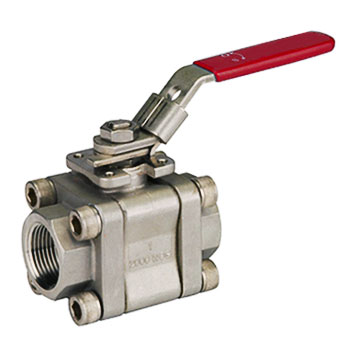

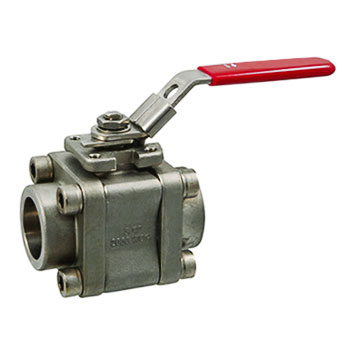

Pic of ANSI / ASME Pressure Class 800 / 1500 / 2500 Lbs-Forged Stainless Steel-SS. F316-Three Picece-3 PC-Threaded, Socket Welded & Butt Welded Ends
  • Size: 1/2"~2" (DN 15 - 50 mm)
  • Class: 800 / 1500 / 2500
  • Three Pieces Forged Steel Body
  • Floating Ball, Full Bore
  • Anti-Static Device
  • Screwed and Socket Welded Ends
  • Blow-out Proof Stem
  • Design: ASME B16.34 / BS 5351
  • Face to Face: Manufacturer Standard
  • End to End: Manufacturer Standard
  • Threaded End: ASME B1.20.1
  • Socket Welding & BW End: ASME B16.11
  • Test: API 598 / BS 6755
  • Fire Safe Test: API 597 / API 6FA

Materials

Materials of ANSI / ASME Pressure Class 800 / 1500 / 2500 Lbs-Forged Stainless Steel-SS. F316-Three Picece-3 PC-Threaded, Socket Welded & Butt Welded Ends
No. Part F316/316
1 Adapter ASTM A182-F316
2 Body Bolt ASTM A193-B8
3 Spring Washer Stainless Steel
4 Body Nut ASTM A194-8
5 Body ASTM A182-F316
6 Seat PTFE
7 Ball ASTM A182-F316
8 Stem ASTM A276-316
9 Thrust Washer PTFE
10 ‘Stem Packing PTFE
11 Gland ASTM A276-316
12 Stop Plate Carbon Steel
13 Stop Pin Stainless Steel
14 Spring Washer Stainless Steel
15 Lever Nut ASTM A194-8
16 Lever Carbon Steel
17 Antistatic Spring Stainless Steel
18 Steel ball Stainless Steel

Sizes and Weights

Sizes and Weights of ANSI / ASME Pressure Class 800 / 1500 / 2500 Lbs-Forged Stainless Steel-SS. F316-Three Picece-3 PC-Threaded, Socket Welded & Butt Welded Ends
Size d L H W B J NPT Weight
in mm mm mm mm mm mm in Kg
1/2 14 92 65 130 21.8 9.6 1/2" 1.7
3/4 18 111 75 160 27.2 12.7 3/4" 2.5
1 24 127 80 220 33.9 12.7 1" 4.5
1-1/4 30 140 100 250 42.7 12.7 1-1/4" 7
1-1/2 38 152 110 250 48.8 12.7 1-1/2" 8.8
2 48 152 125 290 61.2 15.7 2" 10

ANSI / ASME Pressure Class 800 / 1500 / 2500 Lbs-Forged Carbon Steel
Three Picece-3 PC-CS. LF2-Threaded, Socket Welded & Butt Welded Ends

Pic of ANSI / ASME Pressure Class 800 / 1500 / 2500 Lbs-Carbon Steel-CS. LF2-Three Picece-3 PC-Threaded, Socket Welded & Butt Welded Ends
  • Size: 1/2"~2" (DN 15 - 50 mm)
  • Class: 800 / 1500 / 2500
  • Three Pieces Forged Steel Body
  • Floating Ball, Full Bore
  • Anti-Static Device
  • Screwed and Socket Welded Ends
  • Blow-out Proof Stem
  • Design: ASME B16.34 / BS 5351
  • Face to Face: Manufacturer Standard
  • End to End: Manufacturer Standard
  • Threaded End: ASME B1.20.1
  • Socket Welding & BW End: ASME B16.11
  • Test: API 598 / BS 6755
  • Fire Safe Test: API 597 / API 6FA

Materials

Materials of ANSI / ASME Pressure Class 800 / 1500 / 2500 Lbs-Carbon Steel-CS. LF2-Three Picece-3 PC-Threaded, Socket Welded & Butt Welded Ends
No. Part LF2/316NACE
1 Adapter ASTM A350-LF2
2 Body Bolt ASTM A320-L7M
3 Spring Washer Stainless Steel
4 Body Nut ASTM A194-4
5 Body ASTM A350-LF2
6 Seat PTFE
7 Ball ASTM A182-316
8 Stem ASTM A276-316
9 Thrust Washer PTFE
10 ‘Stem Packing PTFE
11 Gland ASTM A276-316
12 Stop Plate Carbon Steel
13 Stop Pin Stainless Steel
14 Spring Washer Stainless Steel
15 Lever Nut ASTM A194-7M
16 Lever Carbon Steel
17 Antistatic Spring Stainless Steel
18 Steel ball Stainless Steel

Sizes and Weights

Sizes and Weights of ANSI / ASME Pressure Class 800 / 1500 / 2500 Lbs-Forged Carbon Steel-CS. LF2-Three Picece-3 PC-Threaded, Socket Welded & Butt Welded Ends
Size d L H W B J NPT Weight
in mm mm mm mm mm mm in Kg
1/2 14 92 65 130 21.8 9.6 1/2" 1.7
3/4 18 111 75 160 27.2 12.7 3/4" 2.5
1 24 127 80 220 33.9 12.7 1" 4.5
1-1/4 30 140 100 250 42.7 12.7 1-1/4" 7
1-1/2 38 152 110 250 48.8 12.7 1-1/2" 8.8
2 48 152 125 290 61.2 15.7 2" 10
