Performance

• Size: 1/2"~10" (DN 15 - 250 mm)
• Class: 150~600 Lb (PN 1.6 - 4 MPa)
• Split Cast Steel Body
• Floating Ball, Full & Reduced Bore
• Anti-Static Device
• Blow-out Proof Stem
• Fire Safe Design
• Low Emission
• Design: ASME B16.34 / BS 5351 / DIN 3357 / EN 12516-1
• Face to Face: ASME B16.10 / DIN 3202 / JIS B2002
• End Flange: ASME B16.5 / BS 4504 / DIN EN 1092-1 / JIS B2220
• Test: API 598 / BS 5146 / DIN 3230 / EN 12266 / JIS B2003
• Fire Safe Test: API 607 / API 6FA / ISO 10497 / JIS B2003
• Special: NACE MR-01-75

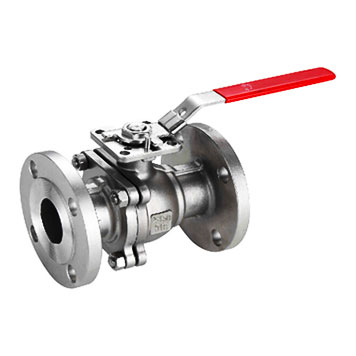

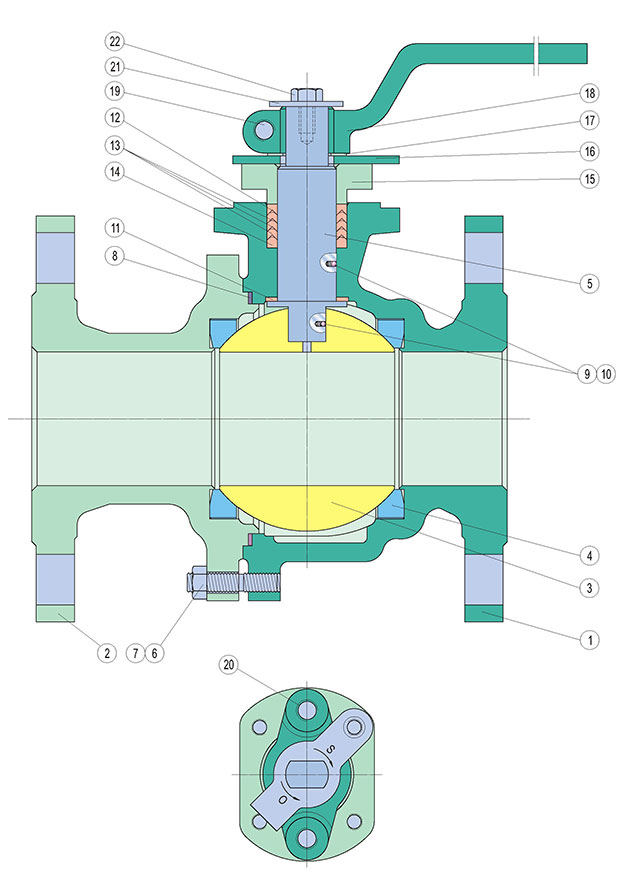

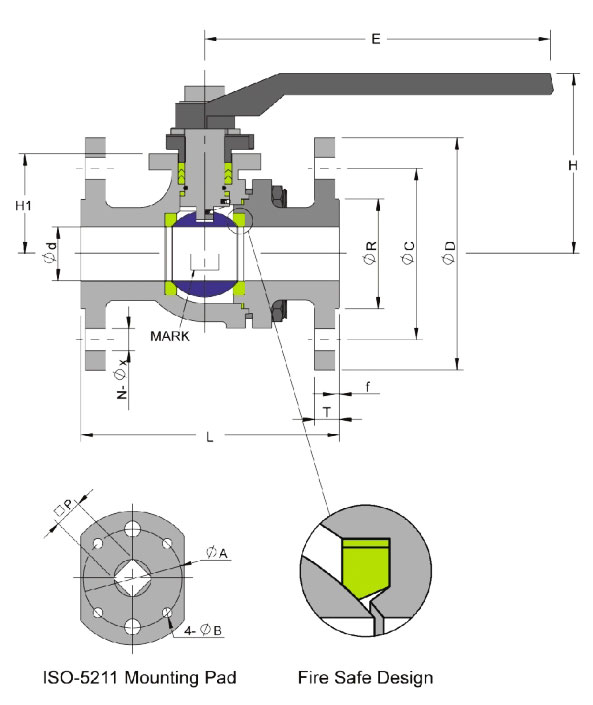

Materials of Split Body (with ISO Mount Pad)

No.	Part	WCB/ENP	WCB/316	CF8M/316	LCC/316NACE
1	Body	ASTM A216-WCB	ASTM A216-WCB	ASTM A351-CF8M	ASTM A352-LCC
2	Adapter	ASTM A216-WCB	ASTM A216-WCB	ASTM A351-CF8M	ASTM A352-LCC
3	Ball	ASTM A105/ENP	ASTM A182-F316	ASTM A182-F316	ASTM A182-F316
4	Seat	PTFE	PTFE	PTFE	PTFE
5	Stem	ASTM A182-F6a	ASTM A182-F316	ASTM A182-F316	ASTM A182-F316
6	Body Stud	ASTM A193-B7	ASTM A193-B7	ASTM A193-B8	ASTM A320-L7M
7	Body Nut	ASTM A194-2H	ASTM A194-2H	ASTM A194-8	ASTM A194-7M
8	’Body Gasket	304SS + Graphite	316SS + Graphite	316SS + Graphite	316SS + Graphite
9	Antistatic Spring	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
10	Steel Ball	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
11	Thrust Washer	PTFE	PTFE	PTFE	PTFE
12	"Top Packing	PTFE / Graphite	PTFE / Graphite	PTFE / Graphite	PTFE / Graphite
13	’Middle Packing	PTFE / Graphite	PTFE / Graphite	PTFE / Graphite	PTFE / Graphite
14	’Bottom Packing	PTFE / Graphite	PTFE / Graphite	PTFE / Graphite	PTFE / Graphite
15	Gland Flange	ASTM A216-WCB	ASTM A216-WCB	ASTM A351-CF8M	ASTM A352-LCC
16	Stop Plate	Carbon Steel	Carbon Steel	Stainless Steel	Carbon Steel
17	Retainer	Carbon Steel	Carbon Steel	Stainless Steel	Carbon Steel
18	Lever	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel
19	Screw	Carbon Steel	Carbon Steel	Stainless Steel	Carbon Steel
20	Screw	ASTM A193-B7	ASTM A193-B7	ASTM A193-B8	ASTM A320-L7M
21	Washer	Carbon Steel	Carbon Steel	Stainless Steel	Carbon Steel
22	Bolt	Carbon Steel	Carbon Steel	Stainless Steel	Carbon Steel

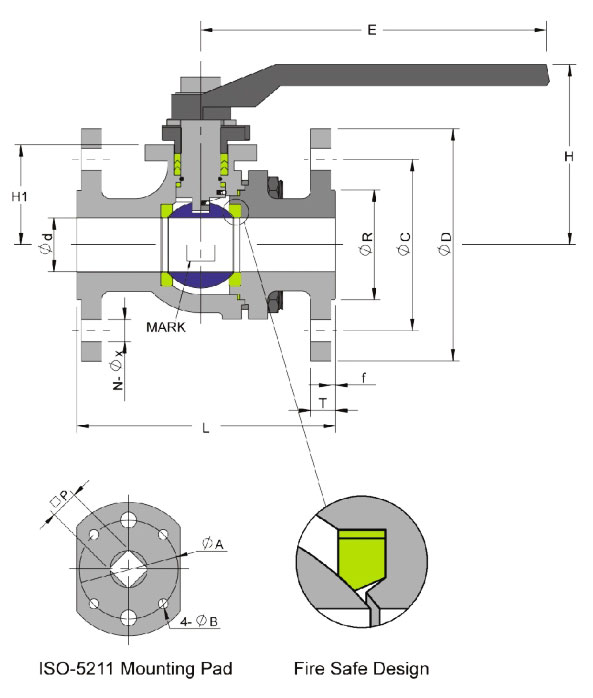

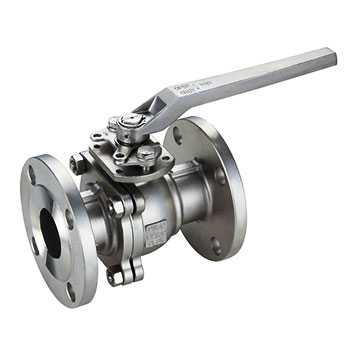

ANSI / ASME Pressure 150 Lbs-Split Body
PTFE Seated-Cast-Floating

150 Lbs-Full Bore-Dimensions and Weights

Size	(Lbs)	L	Φd	ΦR	ΦC	ΦD	H	H1	E	f	T	N	ΦX	□ P	ΦA	ΦB	ISO-5211
1/2"	150	108	15	34.9	60.3	90	77.5	34	150	2	11.2	4	16	11	42	4	F4
3/4"	150	117	20	42.9	69.9	100	79	35.5	150	2	11.2	4	16	11	42	4	F4
1”	150	127	25	50.8	79.4	110	88	45	150	2	12	4	16	11	42	4	F4
1-1/4"	150	140	32	63.5	88.9	115	100	50	170	2	12.7	4	16	14	50	5	F5
1-1/2”	150	165	38	73	98.4	125	122	60	230	2	14.3	4	16	17	70	6.5	F7
2"	150	178	50	92.1	120.7	150	130	68	230	2	15.9	4	19	17	70	6.5	F7
2-1/2"	150	190	65	104.8	139.7	180	148	86	230	2	17.5	4	19	17	70	6.5	F7
3"	150	203	78	127	152.4	190	167	96	305	2	19.1	4	19	22	102	8.5	F10
4"	150	229	100	157.2	190.5	230	188	117	305	2	23.9	8	19	22	102	8.5	F10
5"	150	356	125	185.7	215.9	255	246	141	500	2	23.9	8	22	22	125	10.5	F12
6"	150	394	150	215.9	241.3	280	288	172	645	2	25.4	8	22	27	125	10.5	F12
8"	150	457	200	269.9	298.5	345	329	213	845	2	28.6	8	22	27	125	10.5	F12
10"	150	533	250	323.8	362	406	396	255	1335	2	30.2	12	25	36	140	14	F14

150 Lbs-Reducing Bore-Dimensions and Weights

Size	d	D	L	H	W	Weight
in	mm	mm	mm	mm	mm	Kg
3/4*1/2	13	19	117	81	150	2.5
1*3/4	19	25	127	85	150	4
1-1/2*1	25	38	165	98	180	6.2
2*1-1/2	38	51	178	133	280	8.6
2-1/2*2	51	64	191	141	280	13
3*2	51	76	203	141	280	18.9
4*3	76	102	229	150	400	23
6*4	102	152	267	223	650	55
8*6	152	203	292	297	*300	83
10*8	203	254	330	378	*300	122

ANSI / ASME Pressure 300 Lbs-Split Body
PTFE Seated-Cast-Floating-Full Bore-Dimensions and Weights

Size	(Lbs)	L	Φd	ΦR	ΦC	ΦD	H	H1	E	f	T	N	ΦX	□ P	ΦA	ΦB	ISO-5211
1/2"	300	140	15	34.9	66.7	95	77.5	34	150	2	14.3	4	16	11	42	4	F4
3/4"	300	152	20	42.9	82.6	115	79	35.5	150	2	15.9	4	19	11	42	4	F4
1"	300	165	25	90.8	88.9	125	88	45	150	2	17.5	4	19	11	50	4	F4
1-1/4"	300	178	32	63.5	98.4	135	100	50	170	2	19.1	4	19	14	50	5	F5
1-1/2"	300	190	38	73	114.3	155	122	60	230	2	20.7	4	22.3	17	70	6.5	F7
2"	300	216	50	92.1	127	165	130	68	230	2	22.3	8	19	17	70	6.5	F7
2-1/2"	300	241	65	104.8	149.2	190	148	86	230	2	25.4	8	22.3	17	70	6.5	F7
3"	300	282	78	127	168.3	210	167	96	400	2	28.6	8	22.3	22	102	8.5	F10
4"	300	305	100	157.2	200	255	188	117	400	2	31.8	8	22.3	22	102	8.5	F10
5"	300	400	125	185.7	235	280	246	141	645	2	35	8	22.3	22	125	10.5	F12
6"	300	403	150	215.9	269.9	320	288	172	845	2	36.6	12	22.3	27	125	10.5	F12
8"	300	502	200	269.9	330.2	380	329	213	1335	2	41.3	12	25.4	36	140	14	F14
10"	300	568	250	323.8	387.4	445	396	255	1500	2	47.7	16	28.5	36	140	14	F14

300 Lbs-Reducing Bore-Dimensions and Weights

Size	d	D	L	H	W	Weight
in	mm	mm	mm	mm	mm	Kg
3/4*1/2	13	19	152	75	130	4
1*3/4	19	25	165	84	170	5
1-1/2*1	25	38	191	90	170	7
2*1-1/2	38	51	216	127	250	12
2-1/2*2	51	64	241	140	250	17
3*2	51	76	283	140	250	21.5
4*3	76	102	305	177	350	37
6*4	102	152	403	206	420	66
8*6	152	203	419	320	*1000	127
10*8	203	254	457	365	*1300	196.5

ANSI / ASME Pressure Class 600 Lb-Split Body
PTFE Seated-Cast-Floating-Full Bore-Dimensions and Weights

Size	D	L	H	W	Weight
in	mm	mm	mm	mm	Kg
1/2	13	160	80	170	3.5
3/4	19	191	89	200	5
1	25	216	95	200	7.5
1-1/2	38	241	132	350	15
2	51	292	145	350	20.8
3	76	356	182	420	41
4	102	432	211	700	76

ANSI / ASME Pressure Class 600 Lb-Split Body(2PC)
PTFE Seated-Cast-Floating-Reduce Bore-Dimensions and Weights

Size	d	D	L	H	W	Weight
in	mm	mm	mm	mm	mm	Kg
3/4*1/2	13	19	191	80	170	4
1*3/4	19	25	216	89	200	5
1-1/2*1	25	38	21	95	200	10.5
2*1-1/2	38	51	292	132	350	14.7
3*2	51	76	356	145	350	29
4*3	76	102	432	182	420	56
6*4	102	152	559	211	700	95

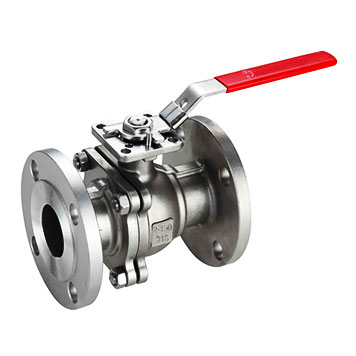

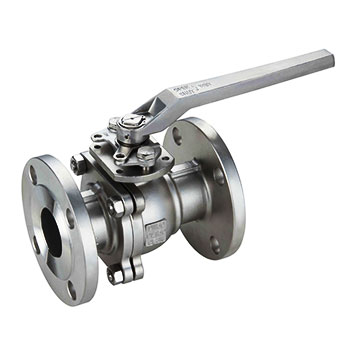

BS 4504 Pressure 150 Lbs-BS 5351 Split Body
PTFE Seated-Cast-Floating-Full Bore-Dimensions and Weights

Size	Pressure (Lbs)	L	Φd	ΦR	ΦC	ΦD	H	H1	E	f	T	N	ΦX	□ P	ΦA	ΦB	ISO-5211
1/2"	150	108	15	45	65	95	77.5	34	150	2	14	4	14	11	42	4	F4
3/4"	150	117	20	58	75	105	79	35.5	150	2	16	4	14	11	42	4	F4
1"	150	127	25	68	85	115	88	45	150	2	16	4	14	11	42	4	F4
1-1/4"	150	140	32	78	100	140	100	50	170	2	16	4	18	14	50	5	F5
1-1/2"	150	165	38	88	110	150	122	60	230	3	16	4	18	17	70	6.5	F7
2"	150	178	50	102	125	165	130	68	230	3	18	4	18	17	70	6.5	F7
2-1/2"	150	190	65	122	145	185	148	86	230	3	18	4	18	17	70	6.5	F7
3"	150	203	78	138	160	200	167	96	305	3	20	8	18	22	102	8.5	F10
4"	150	229	100	158	180	220	188	117	305	3	20	8	18	22	102	8.5	F10
5"	150	356	125	188	210	250	246	141	500	3	22	8	18	22	125	10.5	F12
6"	150	394	150	212	240	285	288	172	645	3	22	8	22	27	125	10.5	F12
8"	150	457	200	268	295	340	329	213	845	3	24	12	22	27	125	10.5	F12
10"	150	533	250	320	355	405	396	255	1335	3	26	12	26	36	140	14	F14

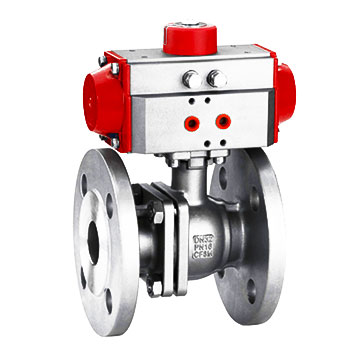

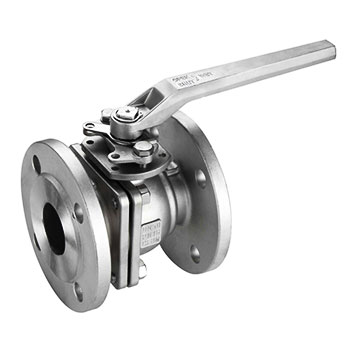

DIN 3202 Pressure 1.6 - 4 MPa-DIN 3357 / EN 12516-1 Split Body
PTFE Seated-Cast-Floating-Full Bore-Dimensions and Weights

Size	Pressure	L	Φd	ΦC	ΦR	ΦD	H	E	T	f
15"	PN 16-40	130	15	45	65	95	76.5	160	14	2
20"	PN 16-40	150	20	58	75	105	89	160	16	2
25"	PN 16-40	160	25	68	85	115	91.5	180	16	2
32"	PN 16-40	180	32	78	100	140	104.5	200	16	2
40"	PN 16-40	200	38	88	110	150	111	220	16	3
50"	PN 16-40	230	48	102	125	165	120	220	18	3
65"	PN16	290	65	122	145	185	145	280	18	3
80"	PN16	310	76	138	160	200	155.5	280	20	3
100"	PN16	350	100	158	180	220	168	300	20	3

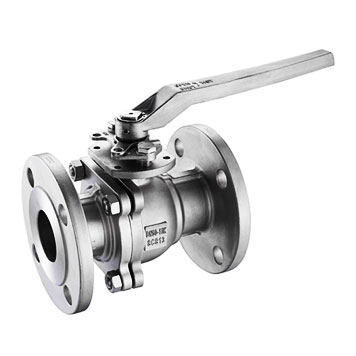

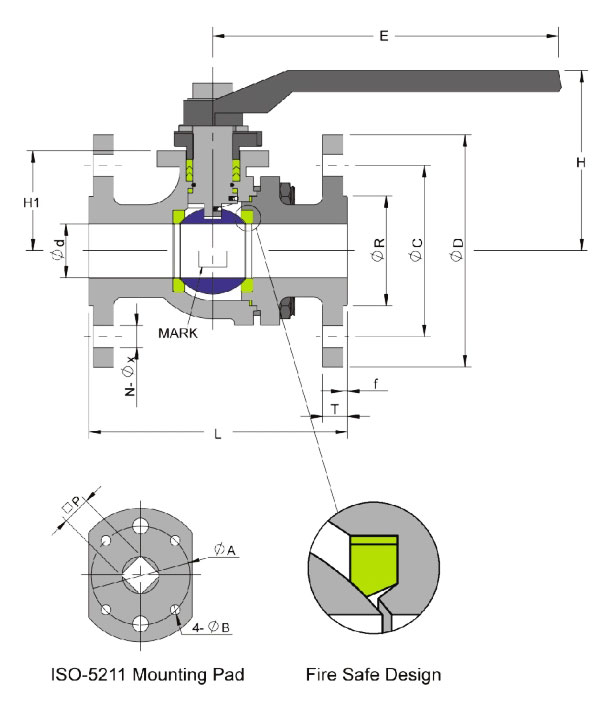

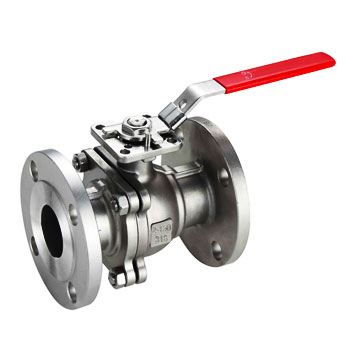

JIS 10K-Split Body
PTFE Seated-Cast-Floating-Dimensions and Weights

Size	Pressure	L	Φd	ΦR	ΦC	ΦD	H	H1	E	f	T	N	ΦX	□ P	ΦA	0B	ISO-5211
1/2"	10K	108	15	51	70	95	77.5	34	150	1	12	4	15	11	42	4	F4
3/4"	10K	117	20	56	75	100	79	35.5	150	1	14	4	15	11	42	4	F4
r	10K	127	25	67	90	125	88	45	150	1	14	4	19	11	42	4	F4
1-1/4"	10K	140	32	76	100	135	100	50	170	2	16	4	19	14	50	5	F5
1-1/2"	10K	165	38	81	105	140	122	60	230	2	16	4	19	17	70	6.5	F7
2"	10K	178	50	96	120	155	130	68	230	2	16	4	19	17	70	6.5	F7
2-1/2"	10K	190	65	116	140	175	148	86	230	2	18	4	19	17	70	6.5	F7
3"	10K	203	78	126	150	185	167	96	305	2	18	8	19	22	102	8.5	F10
4"	10K	229	100	151	175	210	188	117	305	2	18	8	19	22	102	8.5	F10
5"	10K	356	125	182	210	250	246	141	500	2	20	8	23	22	125	10.5	F12
6"	10K	394	150	212	240	280	288	172	645	2	22	8	23	27	125	10.5	F12
8"	10K	457	200	262	290	330	329	213	845	2	22	12	23	27	125	10.5	F12
10"	10K	533	250	324	355	400	396	255	1335	2	24	12	25	36	140	14	F14
