One-Piece (1PC) Ball Valves

Standard 1000 Psi / WOG-One Piece-PTFE Seated-Cast-Floating

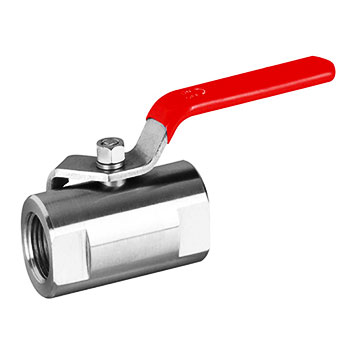

Pic of One-Piece (1PC) Ball Valves

Performance

FEATURES: STANDARDS:
Blow-out Proof Stem Design: ASME B16.34
Wall Thickness: ASME B16.34
Pipe Thread: ASME B1.20.1.BS21
Reduced Port DIN 2999/259, ISO 228/1
JIS B 0203, ISO 7/1
Various Thread Standards Available Inspection & Testing:
MSS SP-110, EN 12266

Materials

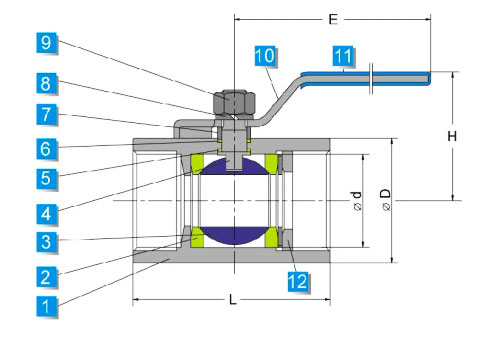

Materials of One-Piece (1PC) Ball Valves
No. PARTS NAME MATERIAL
1 Body SUS316 SUS304
2 Seat PTFE
3 Ball SUS316   SUS304
4 Stem SUS316   SUS304
5 Thrust Washer PTFE
6 Stem packing PTFE
7 Gland SUS304
8 Spring Washer SUS304
9 Stem Nut SUS304
10 Handle SUS301
11 Handle Cover Plastic
12 End Plug SUS304

Sizes

Size L Φd ΦD H E
1/2" 60 10.5 33 35 95
3/4" 65 12 37 37 95
1" 73 18 45 70 120
1-1/4" 90 23 54 85 155
1-1/2" 98 25 65 89 155
2" 113 32 75 95 185

Compact 1000 Psi / WOG-One Piece-PTFE Seated-Cast-Floating

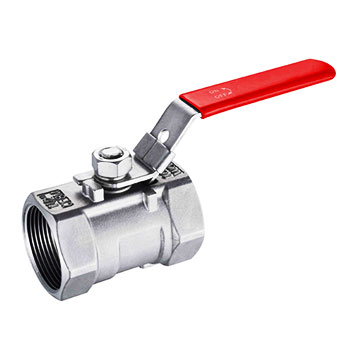

Pic of Compact One-Piece (1PC) Ball Valves
FEATURES:
Blow-out Proof Stem
Reduced Port
Pressure Balance Hole In Ball Slot
Various Thread Standards Available
Lock Device
STANDARDS:
Design: ASME B16.34
Wall Thickness: ASME B16.34
Pipe Thread: ASME B1.20.1.BS21
DIN 2999/259, ISO 228/1
JIS B 0203, ISO 7/1
Inspection & Testing: MSS SP-110, EN 12266

Materials

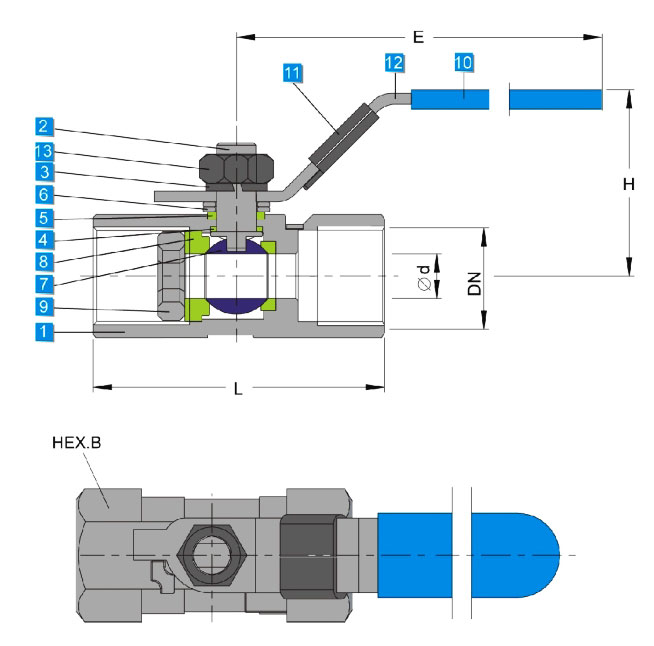

Materials of Compact One-Piece (1PC) Ball Valves
No. PARTS NAME MATERIAL
1 Body CF8M CF8 WCB
2 Stem SUS316 SUS304
3 Spring Washer SUS304
4 Thrust Washer PTFE
5 Packinq Gland PTFE
6 Washer PTFE
7 Ball CF8M CF8
8 Seat PTFE
9 End Plug CF8M CF8 WCB
10 Handle Cover Plastic
11 Lockinq Device SUS301
12 Handle Plastic
13 Nut SUS301

Sizes

DN Φd L H E HEX.B End Thread
1/4" 5 39 31 70 17 NPT, MPT, BSPT, BSP, DIN, PT, etc.
3/8"
1/2"		 7
9		 44
59		 36
42		 80
95		 21
25
3/4" 12.5 60 45 95 32
1" 15 72 54 110 38
1-1/4" 20 77 59 110 48
1-1/2" 25 84 63.5 150 53
2" 32 100 70 150 66
2-1/2" 38 120 95 200 82
3" 48 142 103 200 96

Standard 2000 Psi / WOG-One Piece-PTFE Seated-Cast-Floating

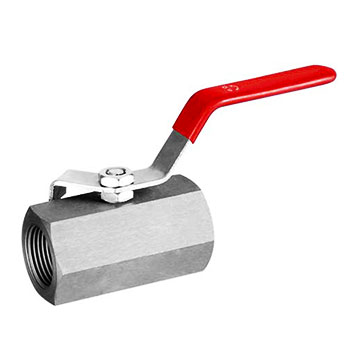

Pic of Standard 2000 Psi / WOG-One Piece-PTFE Seated-Cast-Floating
FEATURES: STANDARDS:
Blow-out Proof Stem Design: ASME B16.34
Wall Thickness: ASME B 16.34
Pipe Thread: ASME B1.20.1.BS21
Reduced Port DIN 2999/259,ISO 228/1
JIS B 0203, ISO 7/1
Various Thread Standards Available Inspection & Testing: MSS
SP-110, EN 12266

Materials

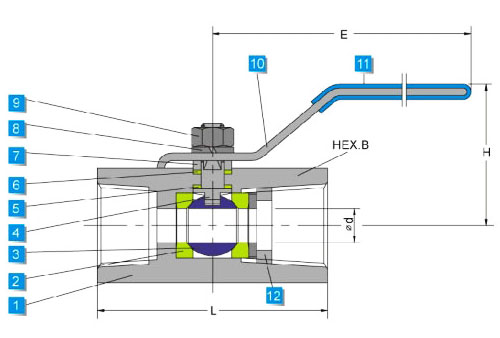

Materials of 2000 Psi / WOG One-Piece (1PC) Ball Valves
No. PARTS NAME MATERIAL
1 Body A105
2 Seat PTFE
3 Ball CF8M CF8
4 Stem SUS316 SUS304
5 Thrust Washer PTFE
6 Stem packing PTFE
7 Gland SUS304
8 Spring Washer SUS304
9 Stem Nut A193-B8
10 Handle SUS301
11 Handle Cover Plastic
12 End Plug SUS304

Sizes

Size L Φd H E HEX.B
1/4" 42 5 27 75 22
3/8" 46 8 38 75 25
1/2" 62 9 43 110 30
3/4" 62 12.5 45 110 36
1" 86 15 57 120 46
1-1/4" 93 20 61 135 55
1-1/2" 101 25 66 150 60
2" 115 32 73.5 150 75

Mini 1000 Psi / WOG-One Piece
PTFE Seated-Cast-Floating-Famale x Famale Threaded Ends

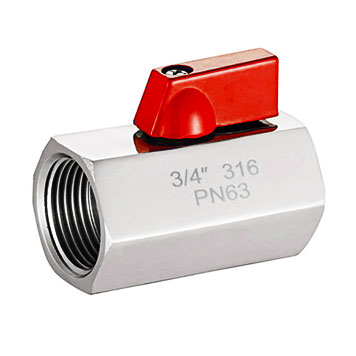

Pic of Mini 1000 Psi / WOG-One Piece PTFE Seated-Cast-Floating
FEATURES: STANDARDS:
Blow-out Proof Stem Design: ASME B16.34
Wall Thickness: ASME B16.34
Pipe Thread: ASME B1.20.1.BS21
Reduced Port DIN 2999/259, ISO 228/1
JIS B 0203,ISO 7/1
Various Thread Standards Available Inspection & Testing:
MSS SP-110, EN 12266

Materials and Size

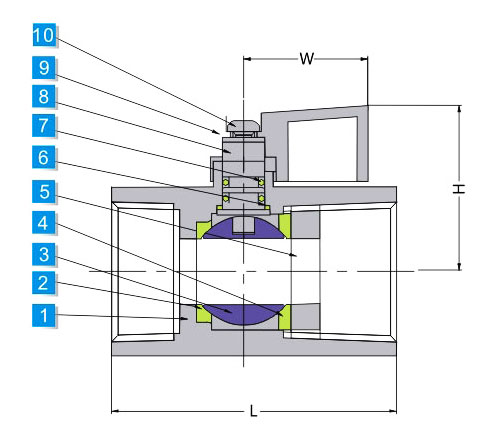

Materials and Size of Famale x Famale Threaded Ends
No. PARTS NAME MATERIAL
1 Body A105
2 Seat PTFE
3 Ball CF8M CF8
4 Stem SUS316 SUS304
5 Thrust Washer PTFE
6 Stem packing PTFE
7 Gland SUS304
8 Spring Washer SUS304
9 Stem Nut A193-B8
10 Handle SUS301
11 Handle Cover Plastic
12 End Plug SUS304
Size L ΦD H E
1/4" 42 7 26.5 22.8
3/8" 42 7 26.5 22.8
1/2" 46 9 28.3 22.8
3/4" 54 12.5 31.5 22.8
1" 65 15 34 22.8

Mini 1000 Psi / WOG-One Piece
PTFE Seated-Cast-Floating-male x Famale Threaded Ends

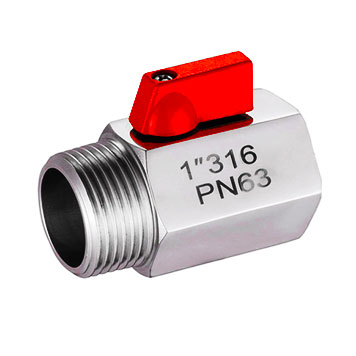

Pic of Mini 1000 Psi / WOG-One Piece PTFE Seated-Cast-Floating male x Famale Threaded Ends
FEATURES: STANDARDS:
Blow-out Proof Stem Design: ASME B16.34
Wall Thickness: ASME B16.34
Pipe Thread: ASME B1.20.1.BS21
Reduced Port DIN 2999/259, ISO 228/1
JIS B 0203,ISO 7/1
Various Thread Standards Available Inspection & Testing:
MSS SP-110, EN 12266

Materials and Size

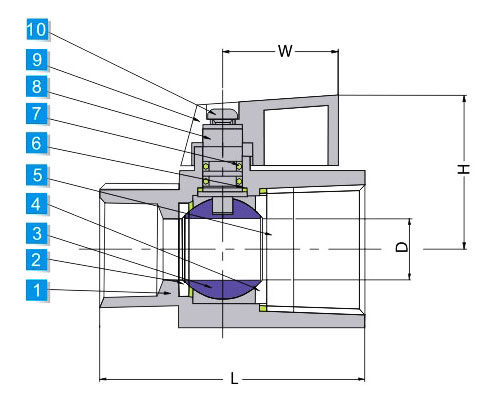

Materials and Size of male x Famale Threaded Ends
No. PARTS NAME MATERIAL
1 Body A105
2 Seat PTFE
3 Ball CF8M CF8
4 Stem SUS316 SUS304
5 Thrust Washer PTFE
6 Stem packing PTFE
7 Gland SUS304
8 Spring Washer SUS304
9 Stem Nut A193-B8
10 Handle SUS301
11 Handle Cover Plastic
12 End Plug SUS304
Size L ΦD H E
1/4" 42 7 26.5 22.8
3/8" 42 7 26.5 22.8
1/2" 46 9 28.3 22.8
3/4" 54 12.5 31.5 22.8
1" 65 15 34 22.8
