Forged Carbon Steel, Stainless Steel Trunnion Mounted Ball Valves

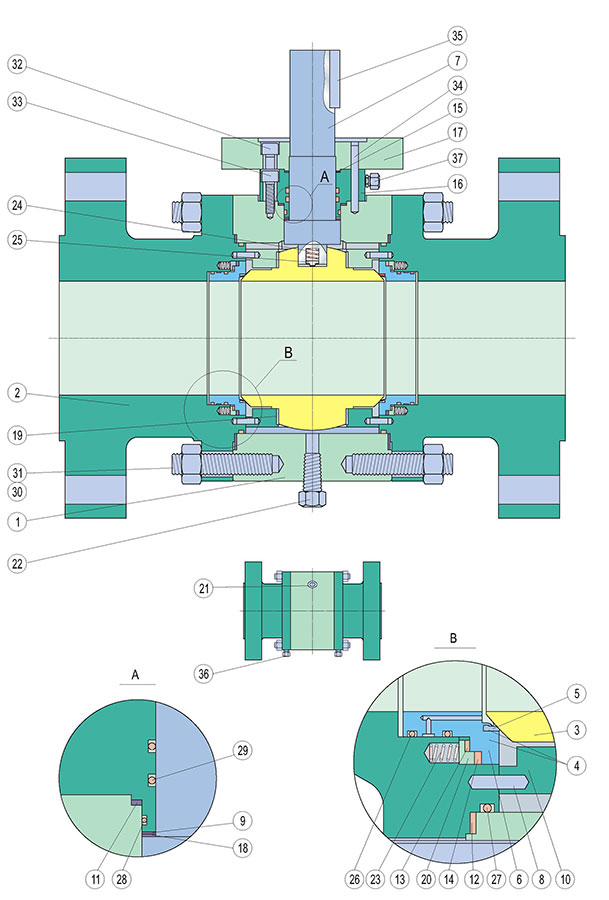

Structure of Forged Carbon Steel, Stainless Steel Trunnion Mounted Ball Valves

Performance

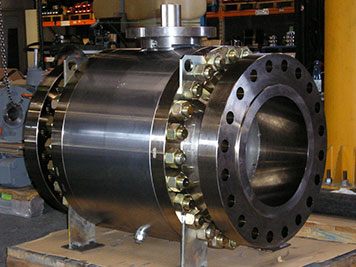

Pic of Forged Carbon Steel, Stainless Steel Trunnion Mounted Ball Valves
  • Size: 2"~40"
  • Class: 150~2500 Lbs
  • Three Pieces Forged Steel Body
  • Trunnion Mounted Ball,
  • Full & Reduced Bore
  • Anti-Static Device
  • Blow-out Proof Stem
  • Double Block and Bleed
  • Fire Safe Design
  • Vent Valve, drain valve
  • Lifting Lugs & Supporting Feet (8"& Larger)

Materials

Materials of Forged Carbon Steel, Stainless Steel Trunnion Mounted Ball Valves
No. Part A105/ENP A105/316 F316/316 LF2/316NACE
1 Body ASTM A105 ASTM A105 ASTM A182-F316 ASTM A350-LF2
2 Adapter ASTM A105 ASTM A105 ASTM A182-F316 ASTM A350-LF2
3 Ball ASTM A105/ENP ASTM A182-F316 ASTM A182-F316 ASTM A182-F316
4 Seat Assembly Assembled By 5&6 Assembled By 5&6 Assembled By 5&6 Assembled By 5&6
5 Seat Insert PTFE / Nylon PTFE / Nylon PTFE / Nylon PTFE / Nylon
6 Seat Ring ASTM A105/ENP ASTM A182-F316 ASTM A182-F316 ASTM A182-F316
7 Stem ASTM A105/ENP ASTM A182-F316 ASTM A182-F316 ASTM A182-F316
8 Alignment Pin Stainless Steel Stainless Steel Stainless Steel Stainless Steel
9 Shim Stainless Steel Stainless Steel Stainless Steel Stainless Steel
10 Trunnion Support ASTM A105/ENP ASTM A105/ENP ASTM A182-F316 ASTM A350-LF2/ENP
11 ‘Gland Gasket 304SS + Graphite 316SS + Graphite 316SS + Graphite 316SS + Graphite
12 ‘Body Gasket 304SS + Graphite 316SS + Graphite 316SS + Graphite 316SS + Graphite
13 Spacer PTFE PTFE PTFE PTFE
14 ‘Seat Firesafe Packing Flexible Graphite Flexible Graphite Flexible Graphite Flexible Graphite
15 ‘Stem Firesafe Packing Flexible Graphite Flexible Graphite Flexible Graphite Flexible Graphite
16 Gland Flange ASTM A105 ASTM A105 ASTM A182-F316 ASTM A350-LF2
17 Top Flange ASTM A105 ASTM A105 ASTM A182-F316 ASTM A350-LF2
18 Thrust Washer PTFE PTFE PTFE PTFE
19 Bearing 316 + PTFE + MoS2 316 + PTFE + MoS2 316 + PTFE + MoS2 316 + PTFE + MoS2
20 Seat Follower ASTM A105/ENP ASTM A182-F316 ASTM A182-F316 ASTM A182-F316
21 Vent Valve Stainless Steel Stainless Steel Stainless Steel Stainless Steel
22 Drain Stainless Steel Stainless Steel Stainless Steel Stainless Steel
23 Seat Spring Inconel X-750 Inconel X-750 Inconel X-750 Inconel X-750
24 Antistatic Spring Stainless Steel Stainless Steel Stainless Steel Stainless Steel
25 Grounding Plunger Stainless Steel Stainless Steel Stainless Steel Stainless Steel
26 *0-Ring NBR/Viton NBR/Viton NBR/Viton NBR/Viton
27 *0-Ring NBR/Viton NBR/Viton NBR/Viton NBR/Viton
28 *0-Ring NBR/Viton NBR/Viton NBR/Viton NBR/Viton
29 *0-Ring NBR/Viton NBR/Viton NBR/Viton NBR/Viton
30 Body Stud ASTM A193-B7 ASTM A193-B7 ASTM A193-B8 ASTM A320-L7M
31 Body Nut ASTM A194-2H ASTM A194-2H ASTM A194-8 ASTM A194-7M
32 Screw Carbon Steel Carbon Steel Stainless Steel ASTM A320-L7M
33 Screw Carbon Steel Carbon Steel Stainless Steel ASTM A320-L7M
34 Gland Pin Carbon Steel Carbon Steel Stainless Steel Carbon Steel
35 Key Carbon Steel Carbon Steel Stainless Steel Carbon Steel
36 Seat Injection Stainless Steel Stainless Steel Stainless Steel Stainless Steel
37 Stem Injection Stainless Steel Stainless Steel Stainless Steel Stainless Steel

ANSI / ASME Pressure Class 150 Lb-Full Bore
Split Body-Three-Piece (3PC)-Dimensions and Weights

ANSI / ASME Pressure Class 150 Lb-Full Bore Split Body-Three-Piece (3PC)-Dimensions and Weights
Size D L H1 H2 W Weight
in mm mm mm mm mm Kg
2 51 170 180 138 265 30
3 76 203 190 150 285 60
4 102 229 212 170 285 92
6 152 394 277 183 *400 190
8 203 457 301 216 *400 345
10 254 533 359 260 *500 495
12 305 610 419 287 *600 705
14 337 686 460 338 *600 859
16 387 762 494 375 *600 1020
18 438 864 521 402 *600 1440
20 489 914 656 427 *600 1918
22 540 991 733 480 *600 2352
24 591 1067 795 518 *700 2803
26 635 1143 870 535 *800 3200
28 686 1245 935 542 *800 4045
30 737 1295 1010 605 *800 4820
32 781 1372 1060 650 *800 5490
34 832 1473 1077 650 *800 6704
36 876 1524 1115 700 *800 7615
40 978 1727 1400 865 *800 10271

ANSI / ASME Pressure Class 150 Lb-Reduced Bore
Split Body-Three-Piece (3PC)-Dimensions and Weights

ANSI / ASME Pressure Class 150 Lb-Reduced Bore Split Body-Three-Piece (3PC)-Dimensions and Weights
Size d D L H1 H2 W Weight
in mm mm mm mm mm mm Kg
2*1-1/2 38 51 178 140 110 250 26
3*2 51 76 203 180 130 265 34
4*3 76 102 229 190 150 285 62
6*4 102 152 394 212 170 285 102
8*6 152 203 457 277 183 *400 225
10*8 203 254 533 301 216 *400 373
12*10 254 305 610 359 260 *500 533
14*12 305 337 686 419 287 *600 730
16*14 337 387 762 460 338 *600 790
18*16 387 438 864 494 375 *600 1095
20*18 438 489 914 521 402 *600 1152
22*18 438 540 991 521 402 *600 2343
24*20 489 591 1067 656 427 *600 2060
26*22 540 635 1143 733 480 *600 2215
28*24 591 686 1245 795 518 *700 2700
30*24 591 737 1295 795 518 *700 2918
32*26 635 781 1372 870 535 *800 4005
34*28 686 832 1473 935 542 *800 4445
36*30 737 876 1524 1010 605 *800 4995
40*34 832 978 1727 1077 650 *800 8200

ANSI / ASME Pressure Class 300 Lb-Full Bore
Split Body-Three-Piece (3PC)-Dimensions and Weights

ANSI / ASME Pressure Class 300 Lb-Full Bore Split Body-Three-Piece (3PC)-Dimensions and Weights
Size D L H1 H2 W Weight
in mm mm mm mm mm Kg
2 51 216 180 130 265 31
3 76 283 190 150 285 69
4 102 305 212 170 400 11
6 152 403 277 183 *400 211
8 203 502 308 217 *500 376
10 254 568 381 265 *600 540
12 305 648 429 307 *600 763
14 337 762 460 338 *600 900
16 387 838 581 375 *600 1300
18 438 914 674 414 *700 1715
20 489 991 713 450 *700 2090
22 540 1092 780 492 *700 2220
24 591 1143 850 531 *760 2890
28 686 1346 958 556 *800 4575
30 737 1397 1035 620 *800 5590
32 781 1524 1087 666 *800 6240
34 832 1626 1104 666 *800 7370
36 876 1727 1143 718 *800 8435
40 978 1930 1435 887 *800 11200

ANSI / ASME Pressure Class 300 Lb-Reduced Bore
Split Body-Three-Piece (3PC)-Dimensions and Weights

ANSI / ASME Pressure Class 300 Lb-Reduced Bore Split Body-Three-Piece (3PC)-Dimensions and Weights
Size d D L H1 H2 W Weight
in mm mm mm mm mm mm Kg
2*1-1/2 38 51 216 140 110 250 30
3*2 51 76 283 180 130 265 37
4*3 76 102 305 190 150 285 74
6*4 102 152 403 212 170 400 142
8*6 152 203 502 277 183 *400 253
10*8 203 254 568 308 217 *500 410
12*10 254 305 648 381 265 *600 580
14*12 305 337 762 429 307 *600 830
16*14 337 387 838 460 338 *600 970
18*16 387 438 914 581 375 *600 1530
20*18 438 489 991 674 414 *700 1830
22*18 438 540 1092 674 414 *700 2010
24*20 489 591 1143 713 450 *700 2220
28*24 591 686 1346 850 531 *760 3200
30*24 591 737 1397 850 531 *760 3200
34*28 686 832 1626 958 556 *800 4845
36*30 737 876 1727 1035 620 *800 6100
40*34 832 978 1930 1104 666 *800 8200

ANSI / ASME Pressure Class 600 Lb-Full Bore
Split Body-Three-Piece (3PC)-Dimensions and Weights

ANSI / ASME Pressure Class 600 Lb-Full Bore Split Body-Three-Piece (3PC)-Dimensions and Weights
Size D L H1 H2 W Weight
in mm mm mm mm mm Kg
2 51 292 172 130 285 45
3 76 356 205 150 400 80
4 102 432 308 170 755 150
6 152 559 274 185 *500 248
8 203 660 342 223 *600 438
10 254 787 393 270 *600 701
12 305 838 522 310 *600 925
14 337 889 551 340 *600 1230
16 387 991 637 378 *700 1535
18 438 1092 683 418 *760 2135
20 489 1194 719 451 *760 2640
22 540 1295 754 492 *800 3370
24 591 1397 823 539 *800 3960
28 686 1549 958 556 *800 6060
30 737 1651 1035 620 *800 6690
32 781 1778 1087 666 *800 7825
34 832 1930 1104 666 *800 8460
36 876 2083 1143 718 *800 10650
40 978 2337 1435 887 *800 14700

ANSI / ASME Pressure Class 600 Lb-Reduced Bore
Split Body-Three-Piece (3PC)-Dimensions and Weights

ANSI / ASME Pressure Class 600 Lb-Reduced Bore Split Body-Three-Piece (3PC)-Dimensions and Weights
Size d D L H1 H2 W Weight
in mm mm mm mm mm mm Kg
2*1-1/2 38 51 292 164 110 265 40
3*2 51 76 356 172 130 285 54
4*3 76 102 432 205 150 400 99
6*4 102 152 559 308 170 755 212
8*6 152 203 660 274 185 *500 304
10*8 203 254 787 342 223 *600 510
12*10 254 305 838 393 270 *600 902
14*12 305 337 889 522 310 *600 1090
16*14 337 387 991 551 340 *600 1310
18*16 387 438 1092 637 378 *700 1640
20*18 438 489 1194 683 418 *760 2270
22*18 438 540 1295 683 418 *760 2430
24*20 489 591 1397 719 451 *760 3440
28*24 591 686 1549 823 539 *800 4250
30*24 591 737 1651 823 539 *800 4730
34*28 686 832 1930 958 556 *800 7200
36*30 737 876 2083 1035 620 *800 8600
40*34 832 978 2337 1104 666 *800 10020

ANSI / ASME Pressure Class 900 Lb-Full Bore
Split Body-Three-Piece (3PC)-Dimensions and Weights

ANSI / ASME Pressure Class 900 Lb-Full Bore Split Body-Three-Piece (3PC)-Dimensions and Weights
Size D L H1 H2 W Weight
in mm mm mm mm mm Kg
2 51 368 193 136 400 52
3 76 381 302 158 755 87
4 102 457 332 180 *400 160
6 152 610 320 187 *600 385
8 203 737 365 226 *600 560
10 254 838 495 280 *600 820
12 305 965 600 329 *700 1125
14 324 1029 625 390 *760 1610
16 375 1130 675 407 *760 2010
18 425 1219 715 526 *760 2810
20 473 1321 750 600 *760 3460
22 524 1422 780 640 *800 4410
24 572 1549 800 690 *800 5497
28 667 1753 987 573 *800 10202
30 714 1880 1066 638 *800 11442
32 762 2032 1120 686 *800 12102
34 810 2159 1137 688 *800 17462
36 857 2285 1177 739 *800 20154

ANSI / ASME Pressure Class 900 Lb-Reduced Bore
Split Body-Three-Piece (3PC)-Dimensions and Weights

ANSI / ASME Pressure Class 900 Lb-Reduced Bore Split Body-Three-Piece (3PC)-Dimensions and Weights
Size d D L H1 H2 W Weight
in mm mm mm mm mm mm Kg
2*1-1/2 38 51 368 175 110 285 45
3*2 51 76 381 193 136 400 56
4*3 76 102 457 302 158 755 94
6*4 102 152 610 332 180 *400 226
8*6 152 203 737 320 187 *600 480
10*8 203 254 838 365 226 *600 650
12*10 254 305 965 495 280 *600 868
14*12 305 324 1029 600 329 *700 1310
16*14 324 375 1130 625 390 *760 1830
18*16 375 425 1219 675 407 *760 2205
20*18 425 473 1321 715 526 *760 3140
22*18 425 524 1422 715 526 *760 3288
24*20 473 572 1549 750 600 *760 3810
28*24 572 667 1753 800 690 *800 7580
30*24 572 714 1880 945 547 *800 7981
34*28 667 810 2159 987 573 *800 11202
36*30 714 857 2286 1066 638 *800 15653

ANSI / ASME Pressure Class 1500 Lb-Full Bore
Split Body-Three-Piece (3PC)-Dimensions and Weights

ANSI / ASME Pressure Class 1500 Lb-Full Bore Split Body-Three-Piece (3PC)-Dimensions and Weights
Size D L H1 H2 W Weight
in mm mm mm mm mm Kg
2 51 368 193 150 400 60
3 76 470 270 168 1135 115
4 102 546 275 176 *500 194
6 146 705 325 203 *600 580
8 194 832 501 248 *700 752
10 241 991 536 297 *700 1195
12 289 1130 614 357 *760 1970
14 318 1257 662 383 *760 2250
16 362 1384 700 434 *760 2760
18 407 1537 750 506 *760 3646
20 457 1664 864 586 *800 4497
22 495 1816 925 631 *800 5731
24 534 2045 1065 675 *800 7151

ANSI / ASME Pressure Class 1500 Lb-Reduced Bore
Split Body-Three-Piece (3PC)-Dimensions and Weights

ANSI / ASME Pressure Class 1500 Lb-Reduced Bore Split Body-Three-Piece (3PC)-Dimensions and Weights
Size d D L H1 H2 W Weight
in mm mm mm mm mm mm Kg
2*1-1/2 38 51 368 183 110 285 56
3*2 51 76 470 193 150 400 82
4*3 76 102 546 270 168 1135 150
6*4 102 146 705 275 176 *500 295
8*6 146 194 832 325 203 *600 690
10*8 194 241 991 501 248 *700 930
12*10 241 289 1130 536 297 *700 1340
14*12 289 318 1257 614 357 *760 2070
16*14 318 362 1384 662 383 *760 2470
18*16 362 407 1537 700 434 *760 2950
20*18 407 457 1664 750 506 *760 3350
22*18 407 495 1816 750 506 *800 3600
24*20 457 534 2045 864 586 *800 5850

ANSI / ASME Pressure Class 2500 Lb-Full Bore
Split Body-Three-Piece (3PC)-Dimensions and Weights

ANSI / ASME Pressure Class 2500 Lb-Full Bore Split Body-Three-Piece (3PC)-Dimensions and Weights
Size D L H1 H2 W Weight
in mm mm mm mm mm Kg
2 44 451 230 121 815 90
3 64 578 284 146 *500 200
4 89 673 303 164 *500 385
6 133 914 394 220 *600 778
8 181 1022 488 312 *760 1352
10 225 1270 600 425 *760 2137
12 267 1422 872 629 *760 3267

ANSI / ASME Pressure Class 2500 Lb-Full Bore
Split Body-Three-Piece (3PC)-Dimensions and Weights

ANSI / ASME Pressure Class 2500 Lb-Full Bore Split Body-Three-Piece (3PC)-Dimensions and Weights
Size d D L H1 H2 W Weight
in mm mm mm mm mm mm Kg
2*1-1/2 38 44 454 170 100 400 80
3*2 44 64 584 230 121 815 160
4*3 64 89 683 284 146 *500 320
6*4 89 133 927 303 164 *500 640
8*6 133 181 1038 360 365 *600 1170
10*8 181 225 1292 420 410 *760 1919
12*10 225 267 1445 509 470 *760 2972
Stock of 2PC Floating Ball Valve
Stock of 3PC Trunnion Mounted Ball Valve
Stock of 2PC Trunnion Mounted Ball Valve
