Performance

• Size: 2"~24"
• Class: 150~600
• Split Body, Cast Steel, Cast Stainless Steel
• Trunnion Mounted Ball, Full & Reduced Bore
• Anti-Static Device Blow-out Proof Stem Fire Safe Design
• Emergency Sealant Injector (6" &Larger)
• Design: ASME B16.34 / API 6D
• Face to Face: ASME B16.10 / API 6D
• End to End: ASME B16.10 / API 6D
• End Flange: ASME B16.5
• BW End: ASME B16.25
• Test: API 6D
• Fire Safe Test: API 607 / API 6FA
• Special: NACE MR-01-75

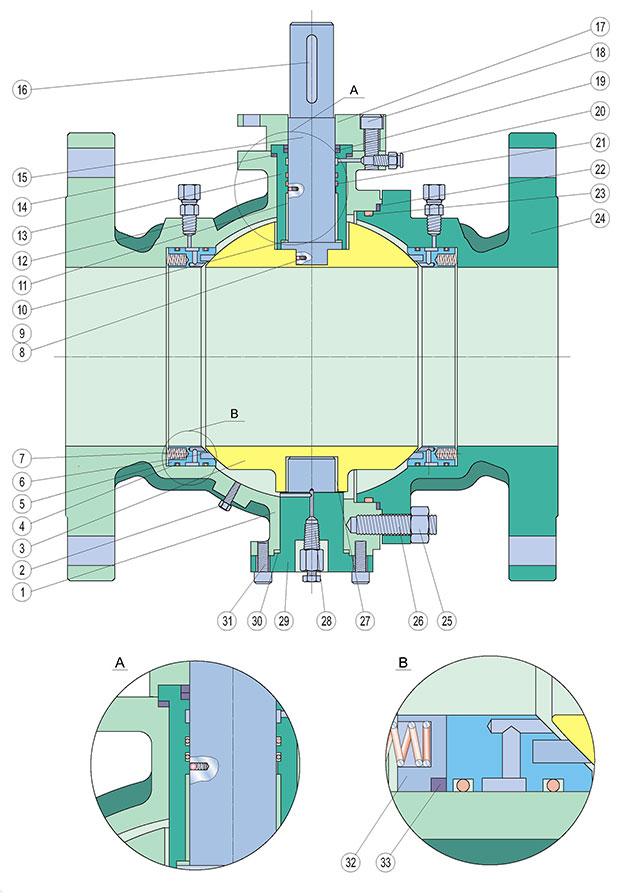

Materials

No.	Part	WCB/ENP	WCB/316	CF8M/316	LCC/316NACE
1	Body	ASTM A216-WCB	ASTM A216-WCB	ASTM A351-CF8M	ASTM A352 -LCC
2	Vent Valve	Carbon Steel	Carbon Steel	Stainless Steel	Stainless Steel
3	Ball	ASTM A105/ENP	ASTM A182-F316	ASTM A182-F316	ASTM A182-F316
4	*0-Ring	NBR/Viton	NBR/Viton	NBR/Viton	NBR/Viton
5	Seat Ring	ASTM A105/ENP	ASTM A182-F316	ASTM A182-F316	ASTM A182-F316
6	Seat Insert	PTFE/Nylon	PTFE/Nylon	PTFE/Nylon	PTFE/Nylon
7	Seat Spring	Inconel X-750	Inconel X-750	Inconel X-750	Inconel X-750
8	Steel Ball	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
9	Antistatic Spring	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
10	Thrust Washer	PTFE	PTFE	PTFE	PTFE
11	Bearing	Carbon Steel+PTFE	Carbon Steel+PTFE	316SS+PTFE	316SS+PTFE
12	Seat Injection	Carbon Steel	Carbon Steel	Stainless Steel	Stainless Steel
13	Gland Flange	ASTM A105	ASTM A105	ASTM A182-F316	ASTM A350-LF2
14	‘Gland Gasket	304SS+Graphite	316SS+Graphite	316SS+Graphite	316SS+Graphite
15	Stem	ASTM A105/ENP	ASTM A182-F316	ASTM A182-F316	ASTM A182-F316
16	Key	Carbon Steel	Carbon Steel	Stainless Steel	Carbon Steel
17	Top Flange	ASTM A216-WCB	ASTM A216-WCB	ASTM A351-CF8M	ASTM A352-LCC
18	Screw	Carbon Steel	Carbon Steel	Stainless Steel	Stainless Steel
19	‘Stem Firesafe Packing	Flexible Graphite	Flexible Graphite	Flexible Graphite	Flexible Graphite
20	Stem Injection	Carbon Steel	Carbon Steel	Stainless Steel	Stainless Steel
21	*0-Ring	NBR/Viton	NBR/Viton	NBR/Viton	NBR/Viton
22	‘Body Gasket	304SS+Graphite	316SS+Graphite	316SS+Graphite	316SS+Graphite
23	*0-Ring	NBR/Viton	NBR/Viton	NBR/Viton	NBR/Viton
24	Adapter	ASTM A216-WCB	ASTM A216-WCB	ASTM A351-CF8M	ASTM A352-LCC
25	Body Nut	ASTM A194-2H	ASTM A194-2H	ASTM A194-8	ASTM A194-7M
26	Body Stud	ASTM A193-B7	ASTM A193-B7	ASTM A193-B8	ASTM A320-L7M
27	Bearing	Carbon Steel+PTFE	Carbon Steel+PTFE	316SS+PTFE	316SS+PTFE
28	Drain	Carbon Steel	Carbon Steel	Stainless Steel	Stainless Steel
29	Trunnion	ASTM A105/ENP	ASTM A105/ENP	ASTM A182-F316	ASTM A350-LF2/ENP
30	Trunnion Gasket	304SS+Graphite	316SS+Graphite	316SS+Graphite	316SS+Graphite
31	Screw	Carbon Steel	Carbon Steel	Stainless Steel	Stainless Steel
32	Seat Follower	ASTM A105/ENP	ASTM A182-F316	ASTM A182-F316	ASTM A182-F316
33	‘Seat Firesafe Packing	Flexible Graphite	Flexible Graphite	Flexible Graphite	Flexible Graphite

ANSI / ASME Pressure Class 150 Lbs-Full Bore
Flanged Ends-Dimensions and Weights

Size	D	L	H	W	Weight
in	mm	mm	mm	mm	Kg
2	51	178	140	250	15
3	76	203	177	350	24
4	102	229	206	420	40
6	152	394	305	*280	95
8	203	457	398	*320	170
10	254	533	495	*350	255
12	305	610	580	*400	390
14	337	686	625	*500	510
16	387	762	720	*500	820
18	438	864	770	*500	1010
20	489	914	840	*500	1828
24	591	1067	920	*600	2100

ANSI / ASME Pressure Class 150 Lbs-Reduced Bore
Flanged Ends-Dimensions and Weights

Size	D	d	L	H	W	Weight
in	mm	mm	mm	mm	mm	Kg
3*2	51	76	203	140	250	21
4*3	76	102	229	177	350	30
6*4	102	152	394	206	420	68
8*6	152	203	457	305	*280	115
10*8	203	254	533	398	*320	214
12*10	254	305	610	495	*350	284
14*12	305	337	686	580	*400	418
16*14	337	387	762	625	*500	612
18*16	387	438	864	720	*500	970
20*18	438	489	914	770	*500	1137
24*20	489	591	1067	840	*500	2000

ANSI / ASME Pressure Class 300 Lbs-Full Bore
Flanged Ends-Dimensions and Weights

Size	D	L	H	W	Weight
in	mm	mm	mm	mm	Kg
2	51	216	140	250	18
3	76	283	177	350	33
4	102	305	206	420	55
6	152	403	305	*280	135
8	203	502	398	*320	210
10	254	568	495	*350	391
12	305	648	580	*400	550
14	337	762	625	*500	710
16	387	838	720	*500	1250
18	438	914	770	*500	1300
20	489	991	840	*500	2180
24	591	1143	920	*600	2930

ANSI / ASME Pressure Class 300 Lbs-Reduced Bore
Flanged Ends-Dimensions and Weights

Size	D	d	L	H	W	Weight
in	mm	mm	mm	mm	mm	Kg
3*2	51	76	283	140	250	25
4*3	76	102	305	177	350	41
6*4	102	152	403	206	420	92
8*6	152	203	502	305	*280	164
10*8	203	254	568	398	*320	350
12*10	254	305	648	495	*350	400
14*12	305	337	762	580	*400	590
16*14	337	387	838	625	*500	850
18*16	387	438	914	720	*500	1220
20*18	438	489	991	770	*500	1460
24*20	489	591	1143	840	*500	2220

ANSI / ASME Pressure Class 600 Lbs-Full Bore
Flanged Ends-Dimensions and Weights

Size	D	L	H	W	Weight
in	mm	mm	mm	mm	Kg
2	51	292	145	350	25
3	76	356	182	420	50
4	102	432	211	700	56
6	152	559	435	*400	250
8	203	660	530	*500	437
10	254	787	615	*500	735
12	305	838	680	*500	1050
14	337	889	720	*600	1300
16	387	991	540	*600	1775
18	438	1092	590	*600	2100
20	489	1194	925	*600	3100
24	591	1397	980	*600	4750

ANSI / ASME Pressure Class 600 Lbs-Reduced Bore
Flanged Ends-Dimensions and Weights

Size	D	d	L	H	W	Weight
in	mm	mm	mm	mm	mm	Kg
3*2	51	76	356	145	250	39
4*3	76	102	432	182	350	65
6*4	102	152	559	211	420	136
8*6	152	203	660	435	*280	292
10*8	203	254	787	530	*320	505
12*10	254	305	838	615	*350	760
14*12	305	337	889	680	*400	1105
16*14	337	387	991	420	*500	1417
18*16	387	438	1092	840	*500	1955
20*18	438	489	1194	890	*500	2380
24*20	489	591	1397	925	*500	3640
