Three Piece (3 PC) Ball Valves

1000 Psi / WOG-3 PC
Light Body-PTFE RTPFE PEEK PPL Seated

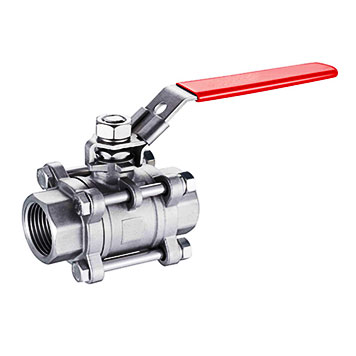

Pic of 1000 Psi / WOG-3 PC-Light Body-PTFE RTPFE PEEK PPL Seated
FEATURES:
Anti-static Devices For Ball-Stem-Body
Blow-out Proof Stem
Pressure Balance Hole In Ball Slot
Lock device
Using Dewaxing Precision Casting
STANDARDS:
Design ASME B16.34
Wall Thickness: ASME B16.34
Pipe Thread: ASME B1.20.1 ,BS21
DIN 2999/259, ISO 228/1 JIS B 0203, ISO 7/1
Butt Weld: ASME B 16.25
Socket Weld: ASME B16.11
Inspection & Testing: MSS SP-110, EN 1226

Materials and Sizes

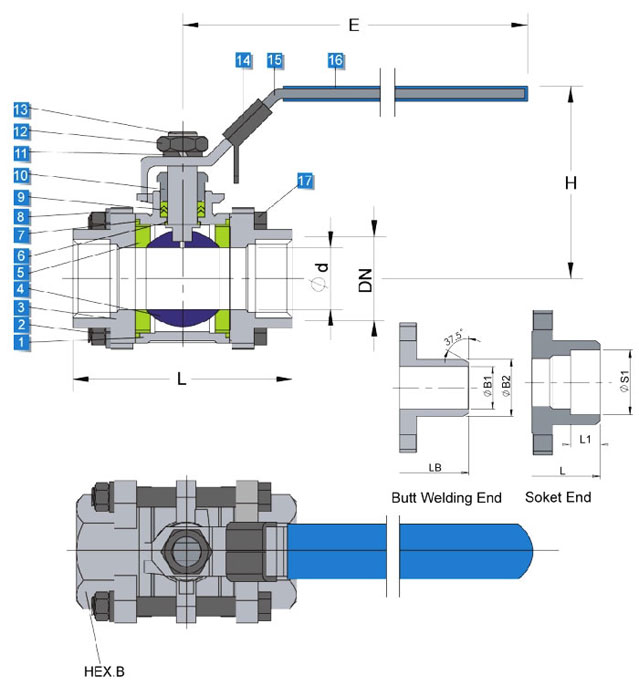

Materials of 1000 Psi / WOG-3 PC-Light Body-PTFE RTPFE PEEK PPL Seated
No. PARTS NAME MATERIAL
1 Body CF8M CF8 WCB
2 Nut SUS304
3 Cap CF8M CF8 WCB
4 Ball CF8M CF8
5 Seat PTFE RPTFE
6 Thrust Washer PTFE
7 Cap Gasket PTFE
8 Spring Washer SUS304
9 Stem Packing PTFE
10 Nut Gland SUS304
11 Spring Washer SUS304
12 Nut SUS304
13 Stem SUS316 SUS304
14 Locking Device SUS301
15 Handle SUS304
16 Handle Cover Plastic
17 Bolt SUS304
DN L Φd H E L1 ΦS1 LB ΦB1 ΦB2 HEX.B THEAD
1/2" 60 15 59 98 10 21.8 60 15 22 25 NPT
BSP
PT
DIN
BSPT
etc.
3/4" 70 20 67 120 13 27.3 70 20 26 30.5
1" 80 24 70 120 13 34 80 24 34 39
1-1/4" 92 31.5 80.5 150 16 42.8 92 31.5 42 47
1-1/2" 107 38 94 170 16 48.9 107 38 47 54
2" 125 48 102 170 17 61.4 125 48 60 66.5
2-1/2" 160 64 125 250 17 74 160 64 75 81.5
3" 180 76 135.5 250 17 90 180 76 90 97
4" 225 98 165.5 300 20 115.4 225 98 110 124

M3 1000 Psi / WOG-3 PC
Standard Body-PTFE RTPFE PEEK PPL Seated

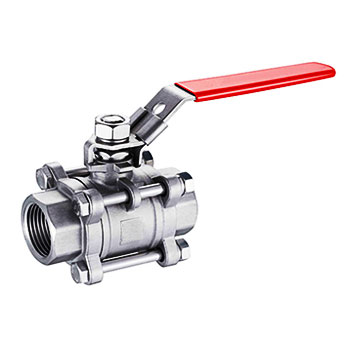

Pic of M3 1000 Psi / WOG-3 PC Standard Body-PTFE RTPFE PEEK PPL Seated
FEATURES:
Anti-static Devices For Ball-Stem-Body
Blow-out Proof Stem
Pressure Balance Hole In Ball Slot
Lock device
Using Dewaxing Precision Casting
STANDARDS:
Design ASME B16.34
Wall Thickness: ASME B16.34
Face to Face: DIN 3202-M3
Pipe Thread: ASME B1.20.1,BS21
DIN 2999/259, ISO 228/1 JIS B 0203, ISO 7/1
ButtWeld: ASME B16.25
Socket Weld: ASME B16.11
Inspection & Testing: MSS SP-110, EN 1226

Materials and Sizes

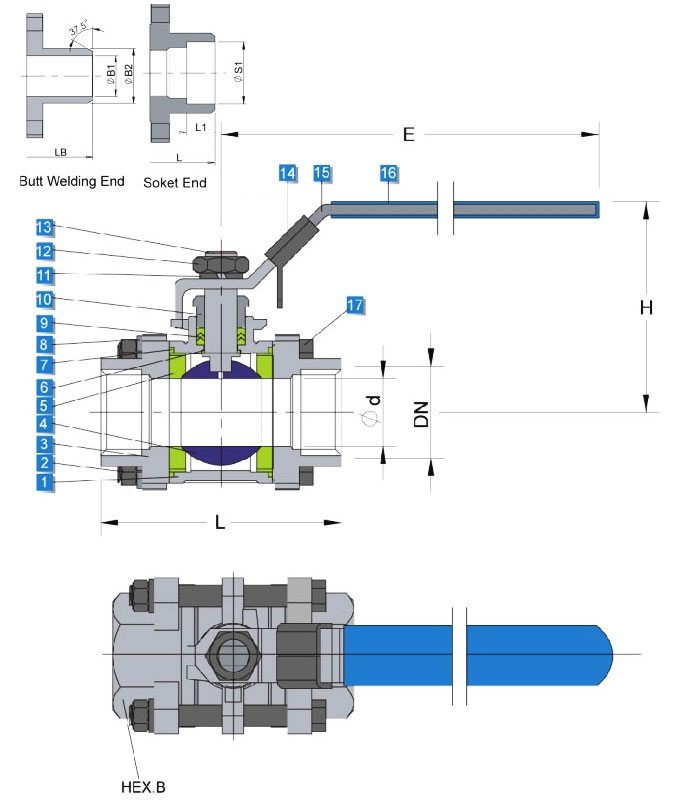

Materials of M3 1000 Psi / WOG-3 PC Standard Body-PTFE RTPFE PEEK PPL Seated
No. PARTS NAME MATERIAL
1 Body CF8M CF8 WCB
2 Nut SUS304
3 Cap CF8M CF8 WCB
4 Ball CF8M CF8
5 Seat PTFE RPTFE
6 Thrust Washer PTFE
7 Cap Gasket PTFE
8 Spring Washer SUS304
9 Stem Packing PTFE
10 Nut Gland SUS304
11 Spring Washer SUS304
12 Nut SUS304
13 Stem SS316 SUS304
14 Locking Device SUS301
15 Handle SUS304
16 Handle Cover Plastic
17 Bolt SUS304
DN L Φd H E L1 ΦS1 LB ΦB1 ΦB2 HEX.B THEAD
1/4" 50 10.5 51.5 98 10 14.2 70 12.5 18 19 NPT
BSP
PT
DIN
BSPT
etc.
3/8" 60 12 58 98 10 17.8 70 12.5 18 22
1/2" 75 15 64.5 120 10 21.8 75 16 22.5 27
3/4" 80 20 67 120 13 27.3 90 21 27 32
1" 90 25 78.5 150 13 34 100 26 34.5 40
1-1/4" 110 32 83.5 150 16 42.8 110 32 43 50
1-1/2" 120 38 98 170 16 48.9 125 40 49 55
2" 140 48 107 170 17 61.4 150 51 62 68.5
2-1/2" 185 65 133 250 17 74 190 65 76.5 85
3" 205 78 143.5 250 17 90 220 80 92 100
4" 240 100 168 305 20 115.4 270 100 115.5 126

1000 Psi / WOG-3 PC
Heavy Body-PTFE RTPFE PEEK PPL Seated

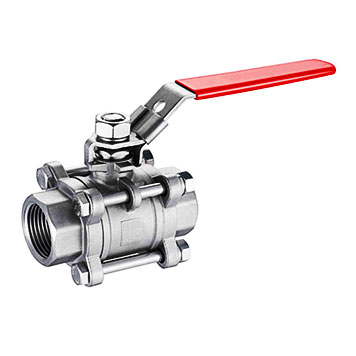

Pic of 1000 Psi / WOG-3 PC Heavy Body-PTFE RTPFE PEEK PPL Seated
FEATURES:
Anti-static Devices For Ball-Stem-Body
Blow-out Proof Stem
Pressure Balance Hole In Ball Slot
Lock device
Using Dewaxing Precision Casting
STANDARDS:
Design ASME B16.34
Wall Thickness: ASME B16.34
Pipe Thread: ASME B1.20.1,BS21
DIN 2999/259 JSO 228/1 JIS B 0203, ISO 7/1
Butt Weld: ASME B16.25
Socket Weld: ASME B16.11
Inspection & Testing: MSS SP-110, EN 1226

Materials and Sizes

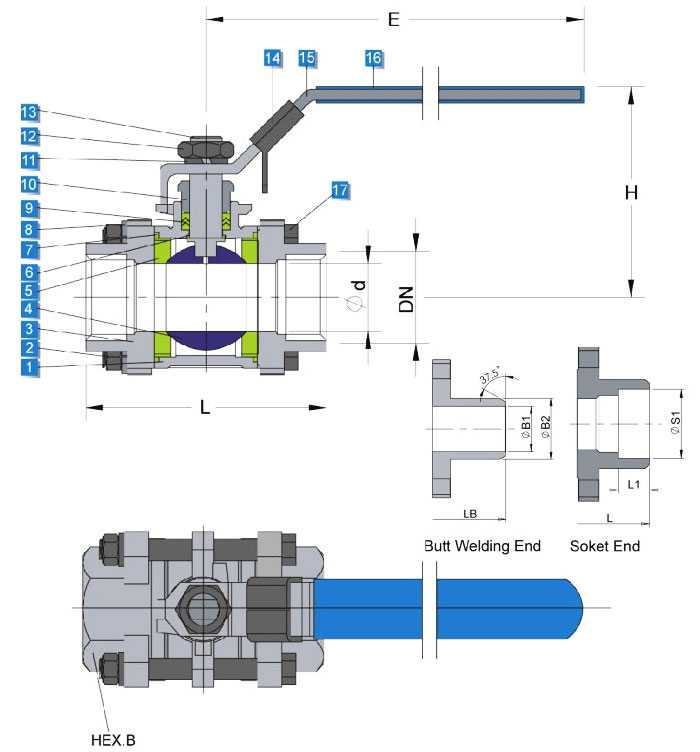

Materials of 1000 Psi / WOG-3 PC Heavy Body-PTFE RTPFE PEEK PPL Seated
No. PARTS NAME MATERIAL
1 Body CF8M
2 Nut SUS304
3 Cap CF8M
4 Ball CF8M
5 Seat PTFE
6 Thrust Washer PTFE
7 Cap Gasket PTFE
8 Spring Washer SUS304
9 Stem Packing PTFE
10 Nut Gland SUS304
11 Spring Washer SUS304
12 Nut SUS304
13 Stem SUS316
14 Locking Device SUS301
15 Handle SUS304
16 Handle Cover Plastic
17 Bolt SUS304
DN L Φd H E L1 ΦS1 LB ΦB1 ΦB2 HEX.B THEAD
1/2" 70 15 64 120 10 21.8 71 15 22 26 NPT
BSP
PT
DIN
BSPT
Etc.
3/4" 80 20 67 120 13 27.3 80 20 26.5 32
1" 86 25 73 120 13 34 88 25 34 38
1-1/4" 100 32 83.5 150 16 42.8 100 32 42 48.5
1-1/2" 108 38 98 170 16 48.9 110 38 47.5 54
2" 136 49 107 170 17 61.4 136 49 60 67.5
2-1/2" 165 65 129 250 17 74 173 65 75 83
3" 192 78 136 250 17 90 198 80 92 96
4" 242 98 167 300 20 115.4 245 98 110 123

1000 Psi / WOG-3 PC
Sandard Body-PTFE RTPFE PEEK PPL Seated with ISO Mount Pad

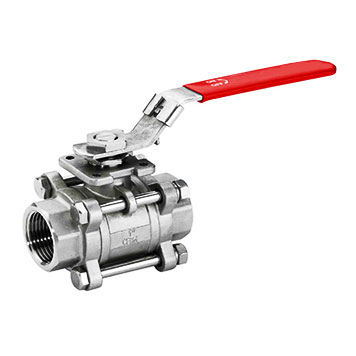

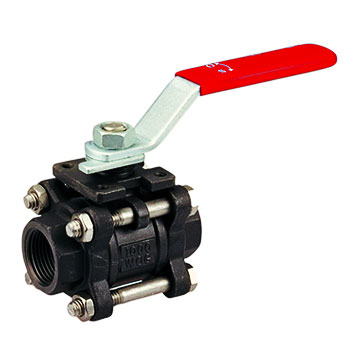

Pic of 1000 Psi / WOG-3 PC-Sandard Body-PTFE RTPFE PEEK PPL Seated with ISO Mount Pad
Pic of 1000 Psi / WOG-3 PC-Sandard Body-PTFE RTPFE PEEK PPL Seated with ISO Mount Pad
FEATURES:
Anti-Static Devices For Ball-Stem-Body
Blow-out Proof Stem
Pressure Balance Hole In Ball Slot
Built In ISO 5211 Direct Mounting Pad For Easy Automation
STANDARDS:
Design ASME B16.34
Wall Thickness: ASME B16.34
Ppe Thread: ASME B1.20.1,BS21
DIN 2999/259, ISO 228/1 JIS B 0203, ISO 7/1
Butt Weld: ASME B 16.25
Socket Weld: ASME B16.11
Inspection & Testing: MSS SP-110, EN 1226

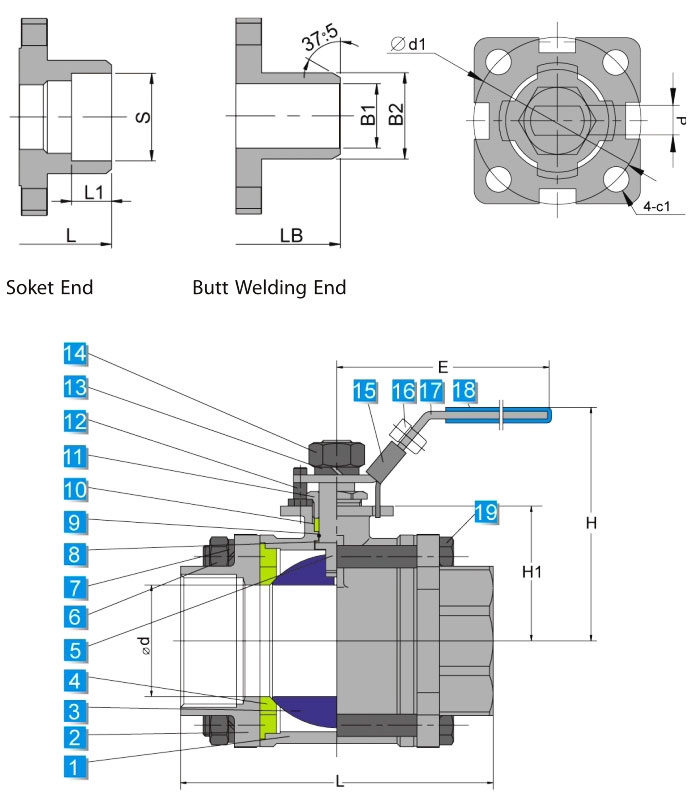

Materials and Sizes

Materials of 1000 Psi / WOG-3 PC-Sandard Body-PTFE RTPFE PEEK PPL Seated with ISO Mount Pad
No. PARTS NAME MATERIAL
1 Body CF8M CF8 WCB
2 Cap CF8M CF8 WCB
3 Ball CF8M CF8
4 Seat PTFE RPTFE PPL
5 Stem SUS316 SUS304
6 Nut A193-B8
7 Spring Washer SUS304
8 Thrust Washer PTFE
9 O-Ring VITON FKM
10 Stem Packing PTFE
11 Stop Nut SUS304
12 Position Pin SUS304
13 Spring Washer SUS304
14 Stem Nut A193-B8
15 Locking Device SUS304
16 Pin Plastic
17 Handle SUS304
18 Handle Cover Plastic
19 Bolt SUS304
Size Φd L LB H H1 E LI S B1 B2 P C2 D1
1/2" 15.0 70 70 64 30.5 110 10 21 16 22 9 M5 36
3/4" 20.0 75 85 67.5 34 110 14 27 21 28 9 M5 36
1" 25.0 88 100 78 40 150 14 34 27 34 11 M5 42
1-1/4" 32.0 105 105 82.5 44.5 150 16 43 35 43 11 M5 42
1-1/2" 38.0 115 118 97.5 53 175 16 49 41 50 14 M6 50
2" 50.0 135 145 105.5 61 175 17 61 53 61 14 M6 50
2-1/2" 64.0 165 180 133 80.5 250 17 74 63 76 17 M8 70
3" 78.0 185 213 145.5 93 250 17 90 78 90 17 M8 70
4" 100 228 228 168.5 110 280 20 115.4 100 110 17 M8 70

1000 Psi / WOG-3 PC-Sandard Body
PTFE RTPFE PEEK PPL Seated with ISO Direct Mount Pad

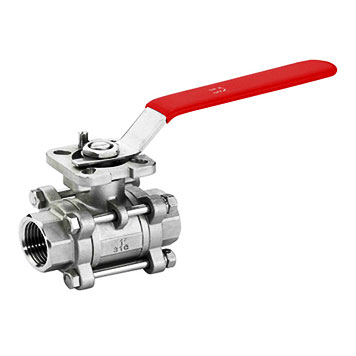

Pic of 1000 Psi / WOG-3 PC-Sandard Body-PTFE RTPFE PEEK PPL Seated with ISO Direct Mount Pad
FEATURES:
Anti-Static Devices For Ball-Stem-Body
Blow-out Proof Stem
Pressure Balance Hole In Ball Slot
Built In ISO 5211 Direct Mounting Pad For Easy Automation
STANDARDS:
Design ASME B 16.34
Wall Thickness: ASME B16.34
Pipe Thread: ASME B1.20.1,BS21
DIN 2999/259, ISO 228/1 JIS B 0203, ISO 7/1
ButtWeld: ASME B16.25
Socket Weld: ASME B16.11
Inspection & Testing: MSS SP-110. EN 1226

Materials and Sizes

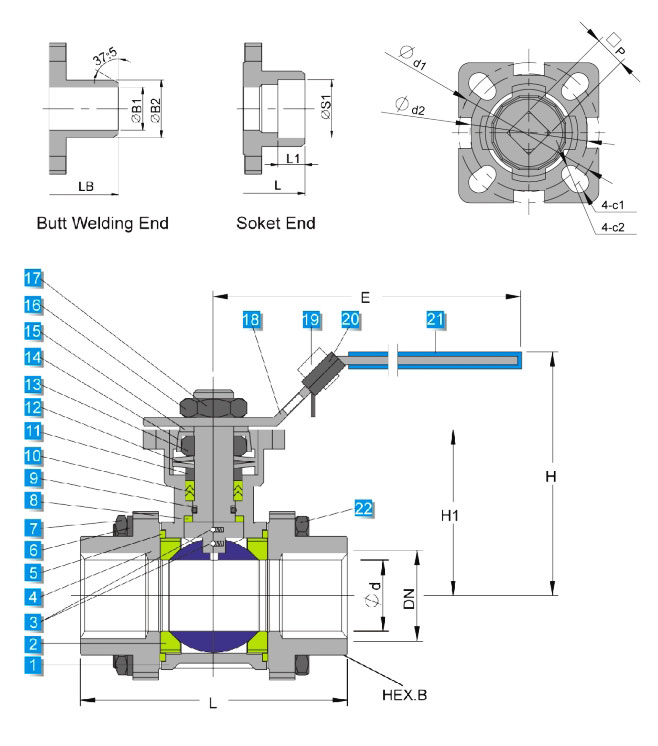

Materials of 1000 Psi / WOG-3 PC-Sandard Body-PTFE RTPFE PEEK PPL Seated with ISO Direct Mount Pad
No. PARTS NAME MATERIAL
1 Body CF8M CF8 WCB
2 Seat PTFE/RPTFE
3 Anti- Static Device SUS304
4 Cap CF8M CF8 WCB
5 Body Gasket PTFE/RPTFE
6 Spring Washer SUS304
7 Nut SUS304
8 Thrust Washer PTFE
9 O-Ring VITON
10 V-Ring Packing PTFE/RPTFE
11 Packing Gland SUS304
12 Belleville Washer SUS301
13 Stem Nut A194-8
14 Stop Cap SUS304
15 Washer SUS304
16 Stop Nut SUS304
17 Stem SUS316/SUS304
18 Handle SUS304
19 Plastic Pin Plastic
20 Locking Device SUS301
21 Handle Cover Plastic
22 Bolt SUS304
DN Φd L LB H H1 E Φd1 Φd2 ΦC1 ΦC2 □ P ΦB1 ΦB2 ΦS1
1/4" 10.5 50 70 58 26 98 42 36 6 6 9 12.5 18 14.2
3/8" 12 60 70 58 31 110 42 36 6 6 9 12.5 18 17.8
1/2" 15 75 75 67 40 110 42 36 6 6 9 16 22.5 21.8
3/4" 20 80 90 73 46 110 42 36 6 6 9 21 27 27.3
1" 25 90 100 88 57 160 50 42 7 6 11 26 34.5 34.0
1-1/4" 32 110 110 95 64 160 50 42 7 6 11 32 43 42.8
1-1/2" 38 120 125 107.5 71 185 70 50 9 7 14 38 49 48.9
2" 50 140 150 118.5 82 185 70 50 9 7 14 51 62 61.4
2-1/2" 65 185 190 168 98 305 102 70 11 9 17 65 76.5 74.0
3" 78 205 220 178 110 305 102 70 11 9 17 78 92 90.0
4" 100 240 270 198 130 305 102 70 11 9 17 100 115.5 115.4

1000 Psi / WOG-3 PC-Sandard Body
PTFE RTPFE PEEK PPL Seated with Pneumatic Actuator

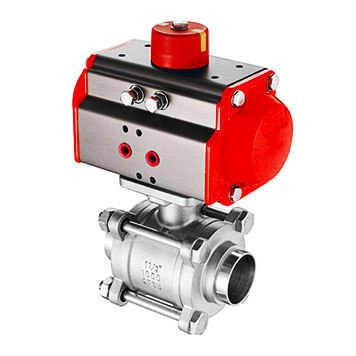

Pic of 1000 Psi / WOG-3 PC-Sandard Body-PTFE RTPFE PEEK PPL Seated with Pneumatic Actuator
FEATURES:
Anti-Static Devices For Ball-Stem-Body
Blow-out Proof Stem
Pressure Balance Hole In Ball Slot
Built In ISO 5211 Direct Mounting Pad For Easy Automation
STANDARDS:
Design ASME B16.34
Wall Thickness: ASME B 16.34
Pipe Thread: ASME B1.20.1 ,BS21
DIN 2999/259,ISO 228/1 JIS B 0203, ISO 7/1
ButtWeld: ASME B16.25
Socket Weld: ASME B16.11
Inspection & Testing: MSS SP-110, EN 1226

Materials and Sizes

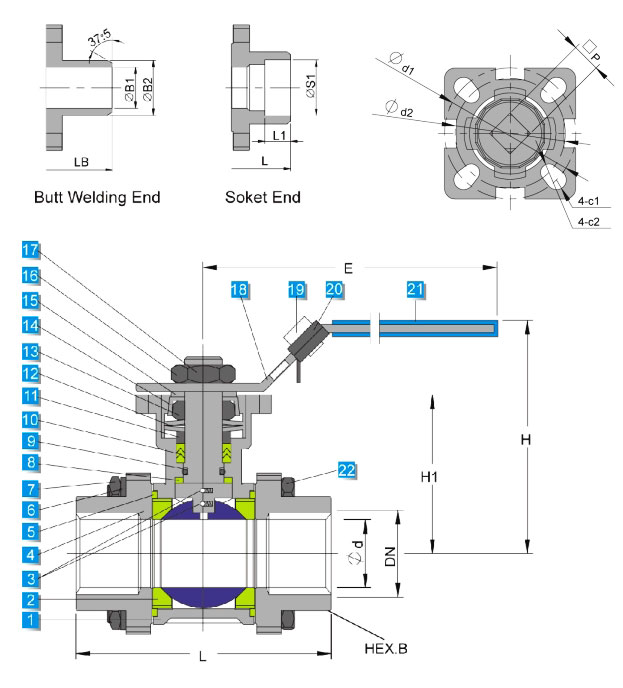

Materials of 1000 Psi / WOG-3 PC-Sandard Body-PTFE RTPFE PEEK PPL Seated with Pneumatic Actuator
No. PARTS NAME MATERIAL
1 Body CF8M CF8 WCB
2 Seat PTFE/RPTFE
3 Anti-Static Device SUS304
4 Cap CF8M CF8 WCB
5 Body Gasket PTFE/RPTFE
6 Spring Washer SUS304
7 Nut SUS304
8 Thrust Washer PTFE
9 O-Ring VITON
10 V-Ring Packing PTFE/RPTFE
11 Packing Gland SUS304
12 Belleville Washer SUS301
13 Stem Nut A194-8
14 Stop Cap SUS304
15 Washer SUS304
16 Stop Nut SUS304
17 Stem SUS316/SUS304
18 Handle SUS304
19 Plastic Pin Plastic
20 Locking Device SUS301
21 Handle Cover Plastic
22 Bolt SUS304
DN Φd L LB H H1 E Φd1 Φd2 ΦC1 ΦC2 □ P ΦB1 ΦB2 0S1
1/4" 10.5 50 70 58 26 98 42 36 6 6 9 12.5 18 14.2
3/8" 12 60 70 58 31 110 42 36 6 6 9 12.5 18 17.8
1/2" 15 75 75 67 40 110 42 36 6 6 9 16 22.5 21.8
3/4" 20 80 90 73 46 110 42 36 6 6 9 21 27 27.3
1" 25 90 100 88 57 160 50 42 7 6 11 26 34.5 34.0
1-1/4" 32 110 110 95 64 160 50 42 7 6 11 32 43 42.8
1-1/2" 38 120 125 107.5 71 185 70 50 9 7 14 38 49 48.9
2" 50 140 150 118.5 82 185 70 50 9 7 14 51 62 61.4
2-1/2" 65 185 190 168 98 305 102 70 11 9 17 65 76.5 74.0
3" 78 205 220 178 110 305 102 70 11 9 17 78 92 90.0
4" 100 240 270 198 130 305 102 70 11 9 17 100 115.5 115.4

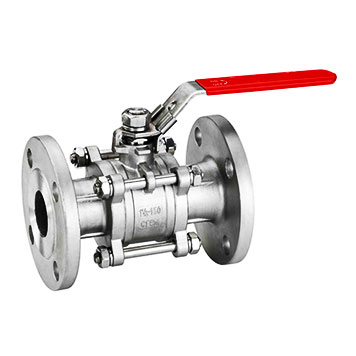

ANSI / ASME Pressure 150 Lbs-3 PC-Flanged Ends
Sandard Body-PTFE RTPFE PEEK PPL Seated

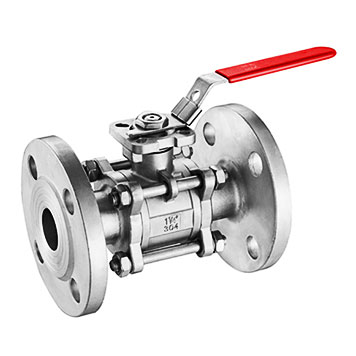

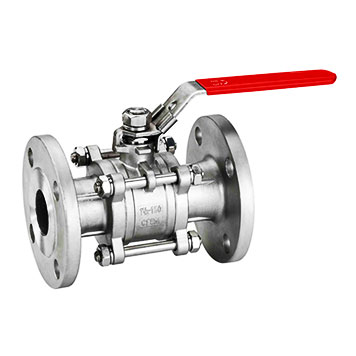

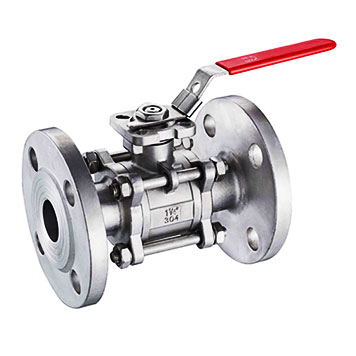

Pic of ANSI / ASME Pressure 150 Lbs-3 PC-Flanged Ends-Sandard Body-PTFE RTPFE PEEK PPL Seated
Pic of ANSI / ASME Pressure 150 Lbs-3 PC-Flanged Ends-Sandard Body-PTFE RTPFE PEEK PPL Seated with ISO Direct Mount Pad
FEATURES:
Anti-Static Devices For Ball-Stem-Body
Blow-Out Proof Stem
Pressure Balance Hole In Ball Slot
Built In ISO 5211 Direct Mounting Pad For Easy Automation
STANDARDS:
Design: ASME B 16.34
Wall Thickness: ASME B 16.34
Fire Safe: API 607 ISO 10497
Face to Face: ASME B 16.10
End Flange: ASME B16.5
Inspection & Testing: API 598

Materials and Sizes

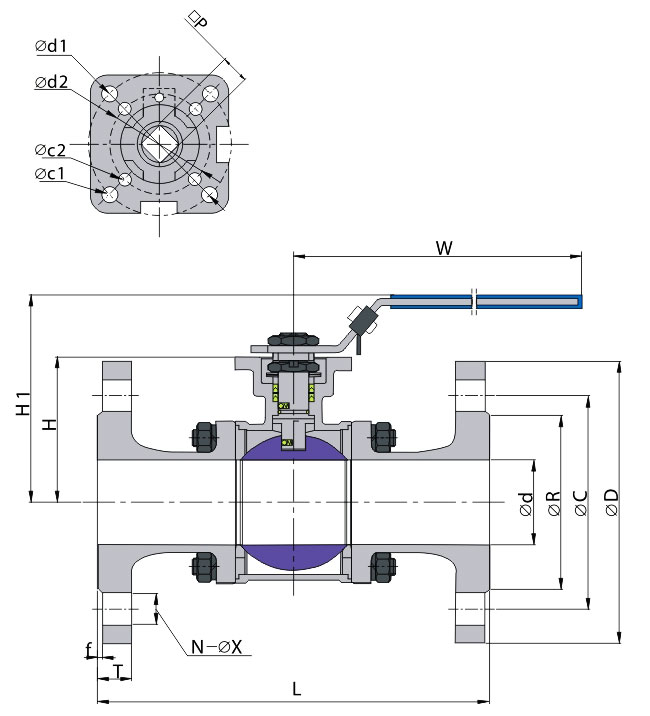

Materials and Sizes of ANSI / ASME Pressure 150 Lbs-3 PC-Flanged Ends-Sandard Body-PTFE RTPFE PEEK PPL Seated
No. PARTS NAME MATERIAL
1 Body CF8M CF8 WCB
2 Seat PTFE/RPTFE
3 Anti-Static Device SUS304
4 Cap CF8M CF8 WCB
5 Body Gasket PTFE/RPTFE
6 Spring Washer SUS304
7 Nut SUS304
8 Thrust Washer PTFE
9 O-Ring VITON
10 V-Ring Packing PTFE/RPTFE
11 Packing Gland SUS304
12 Belleville Washer SUS301
13 Stem Nut A194-8
14 Stop Cap SUS304
15 Washer SUS304
16 Stop Nut SUS304
17 Stem SUS316/SUS304
18 Handle SUS304
19 Plastic Pin Plastic
20 Locking Device SUS301
21 Handle Cover Plastic
22 Bolt SUS304

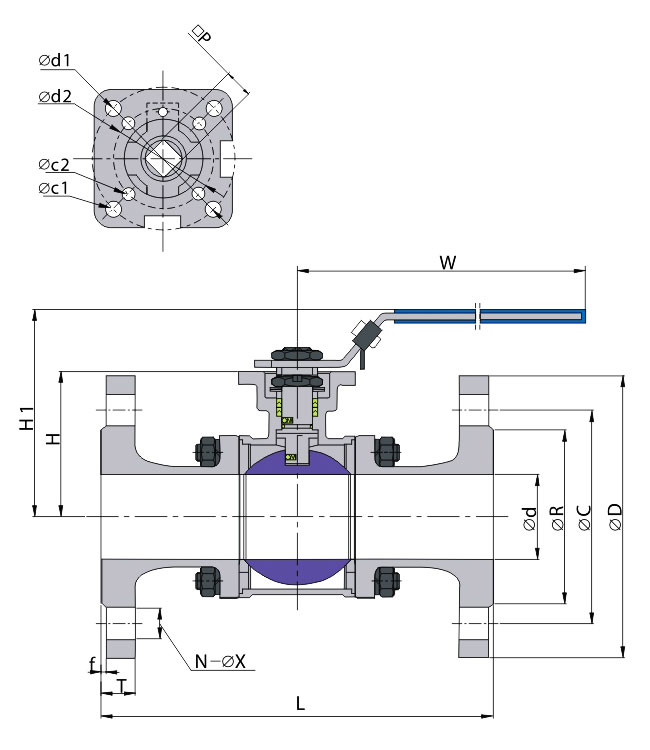

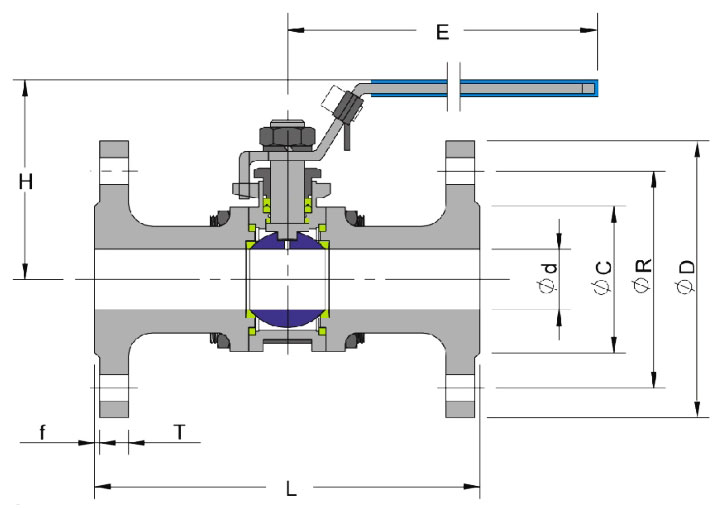

Size (LBS) L Φd ΦR ΦC ΦD H H1 E T f N ΦX Φd1 Φd2 ΦC1 ΦC2 □ P ISO-5211
1/2" 150 108 15 34.9 60.3 90 48.5 75.5 110 11.2 2 4 16 42 36 6 6 9 F03/F04
3/4" 150 117 20 42.9 69.9 100 53.5 80 110 11.2 2 4 16 42 36 6 6 9 F03/F04
1" 150 127 25 50.8 79.4 110 59 90 160 12 2 4 16 50 42 7 6 11 F04/F05
1-1/4" 150 140 32 63.5 88.9 115 71 102 160 12.7 2 4 16 50 42 7 6 11 F04/F05
1-1/2" 150 165 38 73 98.4 125 77.5 114 185 14.3 2 4 16 70 50 9 7 14 F05/F07
2" 150 178 50 92.1 120.7 150 85 121.5 185 15.9 2 4 19 70 50 9 7 14 F05/F07
2-1/2" 150 190 65 104.8 139.7 180 98 168 305 17.5 2 4 19 102 70 11 9 17 F07/F10
3" 150 203 78 127 152.4 180 110 178 305 19.1 2 4 19 102 70 11 9 17 F07/F10
4" 150 229 100 157.2 190.5 230 130 198 305 23.9 2 8 19 102 70 11 9 19 F07/F10
5" 150 356 125 185.7 215.9 255 165 234 500 23.9 2 8 22 125 102 14 12 22 F12/F14

ANSI / ASME Pressure 300 Lbs-3 PC-Flanged Ends
Sandard Body-PTFE RTPFE PEEK PPL Seated

Pic of ANSI / ASME Pressure 300 Lbs-3 PC-Flanged Ends-Sandard Body-PTFE RTPFE PEEK PPL Seated
Pic of ANSI / ASME Pressure 300 Lbs-3 PC-Flanged Ends-Sandard Body-PTFE RTPFE PEEK PPL Seated with ISO Direct Mount Pad
FEATURES:
Anti-Static Devices For Ball-Stem-Body
Blow-out Proof Stem
Pressure Balance Hole In Ball Slot
Built In ISO 5211 Direct Mounting Pad For Easy Automation
STANDARDS:
Design: ASME B16.34
Wall Thickness: ASME B16.34
Fire Safe: API 607 ISO 10497
Face to Face: ASME B 16.10
End Flange: ASME B16.5
Inspection & Testing: API 598

Materials and Sizes

Materials and Sizes of ANSI / ASME Pressure 300 Lbs-3 PC-Flanged Ends-Sandard Body-PTFE RTPFE PEEK PPL Seated
No. PARTS NAME MATERIAL
1 Body CF8M CF8 WCB
2 Seat PTFE/RPTFE
3 Anti-Static Device SUS304
4 Cap CF8M CF8 WCB
5 Body Gasket PTFE/RPTFE
6 Spring Washer SUS304
7 Nut SUS304
8 Thrust Washer PTFE
9 O-Ring VITON
10 V-Ring Packing PTFE/RPTFE
11 Packing Gland SUS304
12 Belleville Washer SUS301
13 Stem Nut A194-8
14 Stop Cap SUS304
15 Washer SUS304
16 Stop Nut SUS304
17 Stem SUS316/SUS304
18 Handle SUS304
19 Plastic Pin Plastic
20 Locking Device SUS301
21 Handle Cover Plastic
22 Bolt SUS304
Size (LBS) L Φd ΦR ΦC ΦD H H1 E T f N ΦX 0d1 Φd2 ΦC1 ΦC2 □ P ISO-5211
1/2" 300 140 15 34.9 66.7 95 48.5 75.5 110 14.3 2 4 16 42 36 6 6 9 F03/F04
3/4" 300 152 20 42.9 82.6 115 53.5 80 110 15.9 2 4 19 42 36 6 6 9 F03/F04
1" 300 165 25 50.8 88.9 125 59 90 160 17.5 2 4 19 50 42 7 6 11 F04/F05
1-1/4" 300 178 32 63.5 98.4 135 71 102 160 19.1 2 4 19 50 42 7 6 11 F04/F05
1-1/2" 300 190 38 73 114.3 155 77.5 114 185 20.7 2 4 22.3 70 50 9 7 14 F05/F07
2" 300 216 50 92.1 127 165 85 121.5 185 22.3 2 8 19 70 50 9 7 14 F05/F07
2-1/2" 300 241 65 104.8 149.2 190 98 168 305 25.4 2 8 22.3 102 70 11 9 17 F07/F10
3" 300 282 78 127 168.3 210 110 178 305 28.6 2 8 22.3 102 70 11 9 17 F07/F10
4" 300 305 100 157.2 200 255 130 198 305 31.8 2 8 22.3 102 70 11 9 19 F07/F10
5" 300 400 125 185.7 235 280 165 234 500 35 2 8 22.3 125 102 14 12 22 F12/F14

DIN Pressure 1.6 - 4.0 MPa-3 PC-Flanged Ends
Sandard Body-PTFE RTPFE PEEK PPL Seated

Pic of DIN Pressure 1.6 - 4.0 MPa-3 PC-Flanged Ends-Sandard Body-PTFE RTPFE PEEK PPL Seated
Pic of DIN Pressure 1.6 - 4.0 MPa-3 PC-Flanged Ends-Sandard Body-PTFE RTPFE PEEK PPL Seated with ISO Direct Mount Pad
FEATURES:
Anti-Static Devices For Ball-Stem-Body
Blow-out Proof Stem
Pressure Balance Hole In Ball Slot
Built In ISO 5211 Direct Mounting Pad For Easy Automation
STANDARDS:
Design: DIN 3357 EN 12516-1
Wall Thickness: ASME B16.34 EN 12516-1
Fire Safe: API 607 ISO 10497
Face to Face: DIN 3202
End Flange: DIN EN 1092-1
Inspection & Testing: DIN 3230  EN 12266

Materials and Sizes

Materials and Sizes of DIN Pressure 1.6 - 4.0 MPa-3 PC-Flanged Ends-Sandard Body-PTFE RTPFE PEEK PPL Seated
No. PARTS NAME MATERIAL
1 Body CF8M CF8 WCB
2 Seat PTFE/RPTFE
3 Anti-Static Device SUS304
4 Cap CF8M CF8 WCB
5 Body Gasket PTFE/RPTFE
6 Spring Washer SUS304
7 Nut SUS304
8 Thrust Washer PTFE
9 O-Ring VITON
10 V-Ring Packing PTFE/RPTFE
11 Packing Gland SUS304
12 Belleville Washer SUS301
13 Stem Nut A194-8
14 Stop Cap SUS304
15 Washer SUS304
16 Stop Nut SUS304
17 Stem SUS316/SUS304
18 Handle SUS304
19 Plastic Pin Plastic
20 Locking Device SUS301
21 Handle Cover Plastic
22 Bolt SUS304
Size Pressure L 0d 0R 0C 0D H H1 E T f N 0X 0d1 0d2 0C1 0C2 □ P ISO-5211
1/2" PN16-40 130 15 45 65 95 48.5 75.5 110 14 2 4 14 42 36 6 6 9 F03/F04
3/4” PN16-40 150 20 58 75 105 53.5 80 110 16 2 4 14 42 36 6 6 9 F03/F04
1" PN 16-40 160 25 68 85 115 59 90 160 16 2 4 14 50 42 7 6 11 F04/F05
1-1/4" PN 16-40 180 32 78 100 140 71 102 160 16 2 4 18 50 42 7 6 11 F04/F05
1-1/2" PN 16-40 200 38 88 110 150 77.5 114 185 16 3 4 18 70 50 9 7 14 F05/F07
2" PN 16-40 230 50 102 125 165 85 121.5 185 18 3 4 18 70 50 9 7 14 F05/F07
2-1/2” PN16 290 65 122 145 185 98 168 305 18 3 4 18 102 70 11 9 17 F07/F10
3" PN16 310 78 138 160 200 110 178 305 20 3 8 18 102 70 11 9 17 F07/F10
4" PN16 350 100 158 180 220 130 198 305 20 3 8 18 102 70 11 9 19 F07/F10
5" PN16 400 125 188 210 250 165 234 500 22 3 8 18 125 102 14 12 22 F12/F14

JIS Pressure 10K-3 PC-Flanged Ends
Sandard Body-PTFE RTPFE PEEK PPL Seated

Pic of JIS Pressure 10K-3 PC-Flanged Ends-Sandard Body-PTFE RTPFE PEEK PPL Seated
Pic of JIS Pressure 10K-3 PC-Flanged Ends-Sandard Body-PTFE RTPFE PEEK PPL Seated with ISO Direct Mount Pad
FEATURES:
Anti-Static Devices For Ball-Stem-Body
Blow-out Proof Stem
Pressure Balance Hole In Ball Slot
Built In ISO 5211 Direct Mounting Pad For Easy Automation
STANDARDS:
Design: ASME B16.34
Wall Thickness: ASME B16.34
Fire Safe: API 607 ISO 10497
Face to Face: JIS B2002
End Flange: JIS B2220
Inspection & Testing: JIS B2003

Materials and Sizes

Materials and Sizes of JIS Pressure 10K-3 PC-Flanged Ends-Sandard Body-PTFE RTPFE PEEK PPL Seated
No. PARTS NAME MATERIAL
1 Body CF8M CF8 WCB
2 Seat PTFE/RPTFE
3 Anti-Static Device SUS304
4 Cap CF8M CF8 WCB
5 Body Gasket PTFE/RPTFE
6 Spring Washer SUS304
7 Nut SUS304
8 Thrust Washer PTFE
9 O-Ring VITON
10 V-Ring Packing PTFE/RPTFE
11 Packing Gland SUS304
12 Belleville Washer SUS301
13 Stem Nut A194-8
14 Stop Cap SUS304
15 Washer SUS304
16 Stop Nut SUS304
17 Stem SUS316/SUS304
18 Handle SUS304
19 Plastic Pin Plastic
20 Locking Device SUS301
21 Handle Cover Plastic
22 Bolt SUS304
Size Pressure L Φd ΦR ΦC ΦD H H1 E T f N ΦX Φd1 Φd2 ΦC1 ΦC2 □ P ISO-5211
1/2" 10K 108 15 51 70 95 48.5 75.5 110 12 1 4 15 42 36 6 6 9 F03/F04
3/4" 10K 117 20 56 75 100 53.5 80 110 14 1 4 15 42 36 6 6 9 F03/F04
1" 10K 127 25 67 90 125 59 90 160 14 1 4 19 50 42 7 6 11 F04/F05
1-1/4" 10K 140 32 76 100 135 71 102 160 16 2 4 19 50 42 7 6 11 F04/F05
1-1/2" 10K 165 38 81 105 140 77.5 114 185 16 2 4 19 70 50 9 7 14 F05/F07
2" 10K 178 50 96 120 155 85 121.5 185 16 2 4 19 70 50 9 7 14 F05/F07
2-1/2" 10K 190 65 116 140 175 98 168 305 18 2 4 19 102 70 11 9 17 F07/F10
3" 10K 203 78 126 150 185 110 178 305 18 2 8 19 102 70 11 9 17 F07/F10
4" 10K 229 100 151 175 210 130 198 305 18 2 8 19 102 70 11 9 19 F07/F10
5" 10K 356 125 182 210 250 165 234 500 20 2 8 23 125 102 14 12 22 F12/F14
Stock of 2PC Floating Ball Valve
Stock of 3PC Trunnion Mounted Ball Valve
Stock of 2PC Trunnion Mounted Ball Valve
