DS102X Float Control Valve (ACV)

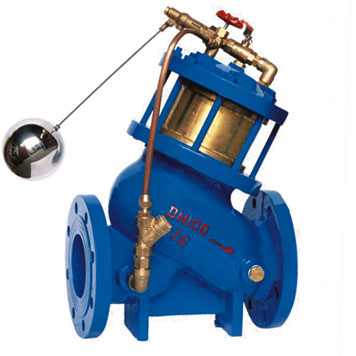

Photo of DS102X Float Control Valve (ACV) Pic 2

Performance

Nominal Pressure
(MPa)		 Shell Test
(MPa)		 Sealing Test
(MPa)		 Fluids Fluids Temp
(°C)
1.0 1.5 1.1 Water 0-80
1.6 2.4 1.76
2.5 3.75 2.75

Materials

Name Materials
Body, Bonnet ASTM A536 Gr-65-45-12, GGG 40, GGG 50
Seat, Plug Brass
O-Ring NBR
Stem SS 420
Spring G61500
Needle Valve Brass
Ball Valve Brass
PRV / PSV Brass
Strainer Stainless Steel

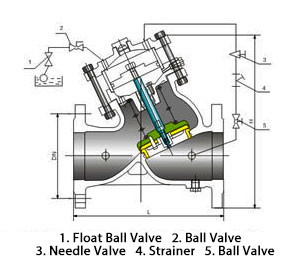

Materials of DS102X Float Control Valve (ACV)

Dimensions

DN 50 65 80 100 125 I5O 200 250 300 350 400 450 500 600 700 800 900 1000 1200 1400
L 205 216 250 320 365 415 500 605 698 787 914 978 978 1150 1300 1450 1650 1800 2000 2350
H 293 328 364 418 481 543 673 729 927 957 1188 1218 1600 1800 2000 2300 2600 2700 2860 3200

Installation

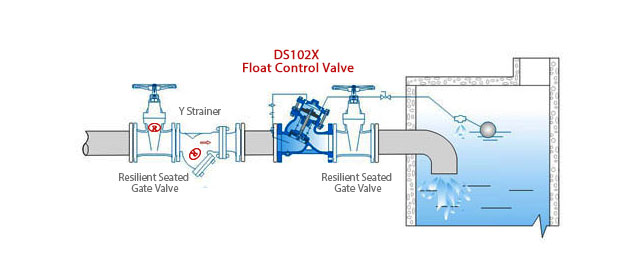

Installation of DS102X Float Control Valve (ACV)
